20" WILTON "TRADESMAN" SINGLE-SPINDLE VARIABLE SPEED PORTABLE DRILL PRESS
New 2005, Serial No 5040003, Model 2550,
| Swing | 20" | 508 mm |
| Capacity (Mild Steel) | 0.625" | 15.875 mm |
| Capacity (Cast Iron) | 0.75" | 19.05 mm |
| Power | 1.5 hp | 1.1 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Dimensions | 16.5 x 18.5 | 16.5 x 18.5 |

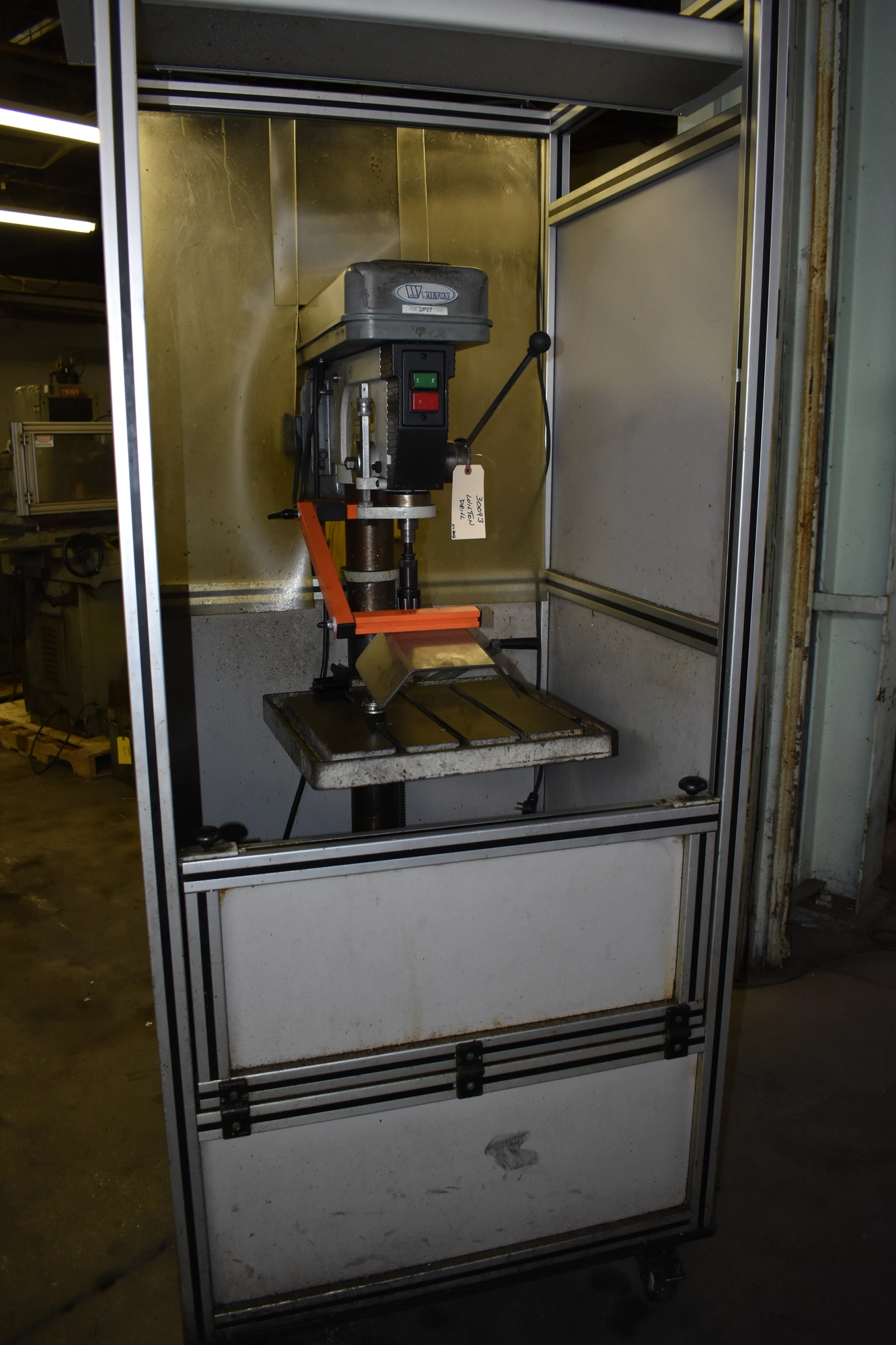

20" WILTON "TRADESMAN" SINGLE-SPINDLE VARIABLE SPEED PORTABLE DRILL PRESS
New 2005, Serial No 5040003, Model 2550,
EQUIPPED WITH:
Enclosure Mounted w/Casters
Manual Down-Feed to Spindle
Adjustable Table Height
5/8" Chuck
CATALOG SPECIFICATIONS:
Drill to Center 20"
Drilling Capacity, Cast Iron 0.75"
Drilling Capacity, Steel 0.625"
Spindle Travel, Manual 4.75"
Spindle-Center to Column 10"
Column Diameter 3.625"
Table Dimensions Overall, W x L 16.5" x 18.5"
Table Working Surface, W x L 14" x 16"
Spindle Taper #3 MT
(12) Spindle Speeds, Range 150 to 4200 RPM
Spindle Motor, Horsepower 1.5 HP
Electrical System 115-230/1/60
F.O.B. OUR WAREHOUSE
