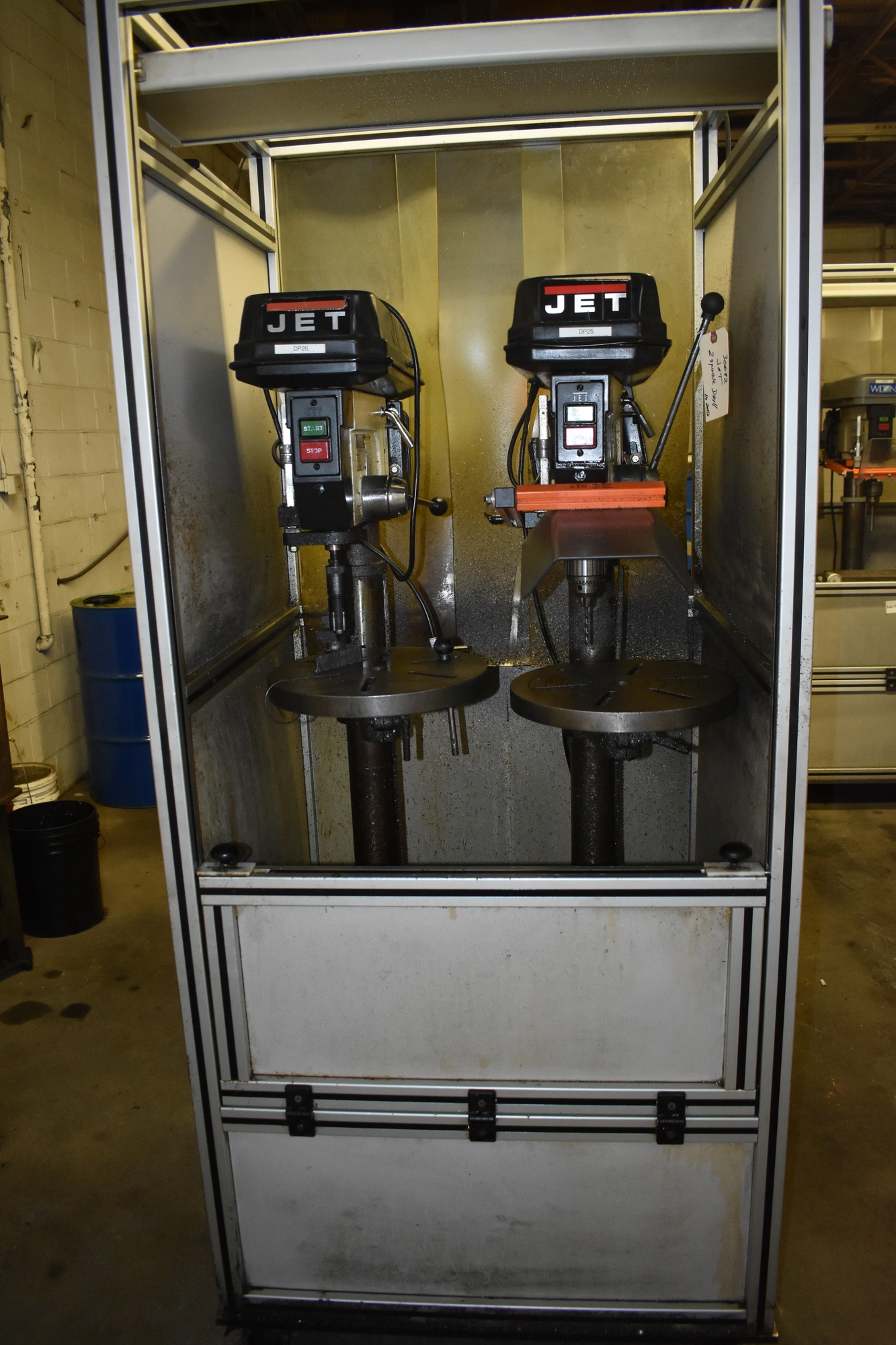

17" JET PORTABLE FLOOR TYPE PORTABLE
TWO-SPINDLE DRILL w/ENCLOSURE
Model JDP-17MF, Series "FLOOR-TYPE"
CATALOG NUMBER 354169
| # Spindles | 2 spdl | 2 spdl |
| Swing | 16.5" | 419.1 mm |
| Uppers | 29.125" | 739.77 mm |
| Power | 0.8 hp | 0.6 kW |
| RPM | 2,003,630 RPM | 2,003,630 RPM |
17" JET PORTABLE FLOOR TYPE PORTABLE
TWO-SPINDLE DRILL w/ENCLOSURE
Model JDP-17MF, Series "FLOOR-TYPE"
CATALOG NUMBER 354169
EQUIPPED WITH:
Enclosure w/Casters To Allow Portability
Manual Down-Feed to Spindle
Manual Table Height Adjustment
CATALOG SPECIFICATIONS:
Swing Capacity, Maximum 16.5"
Spindle-Nose to Table, Maximum 29.125"
Spindle-Center to Column 8.25"
Spindle Travel, Manual 4.375"
Table Diameter 13.75"
Table Tilt 45-DEGREES
(16) Spindle Speeds Range, Variable 200 to 3630 RPM
Spindle Motor, Horsepower/RPM .75 HP
Electrical System 115-230/1/60
F.O.B. OUR WAREHOUSE
