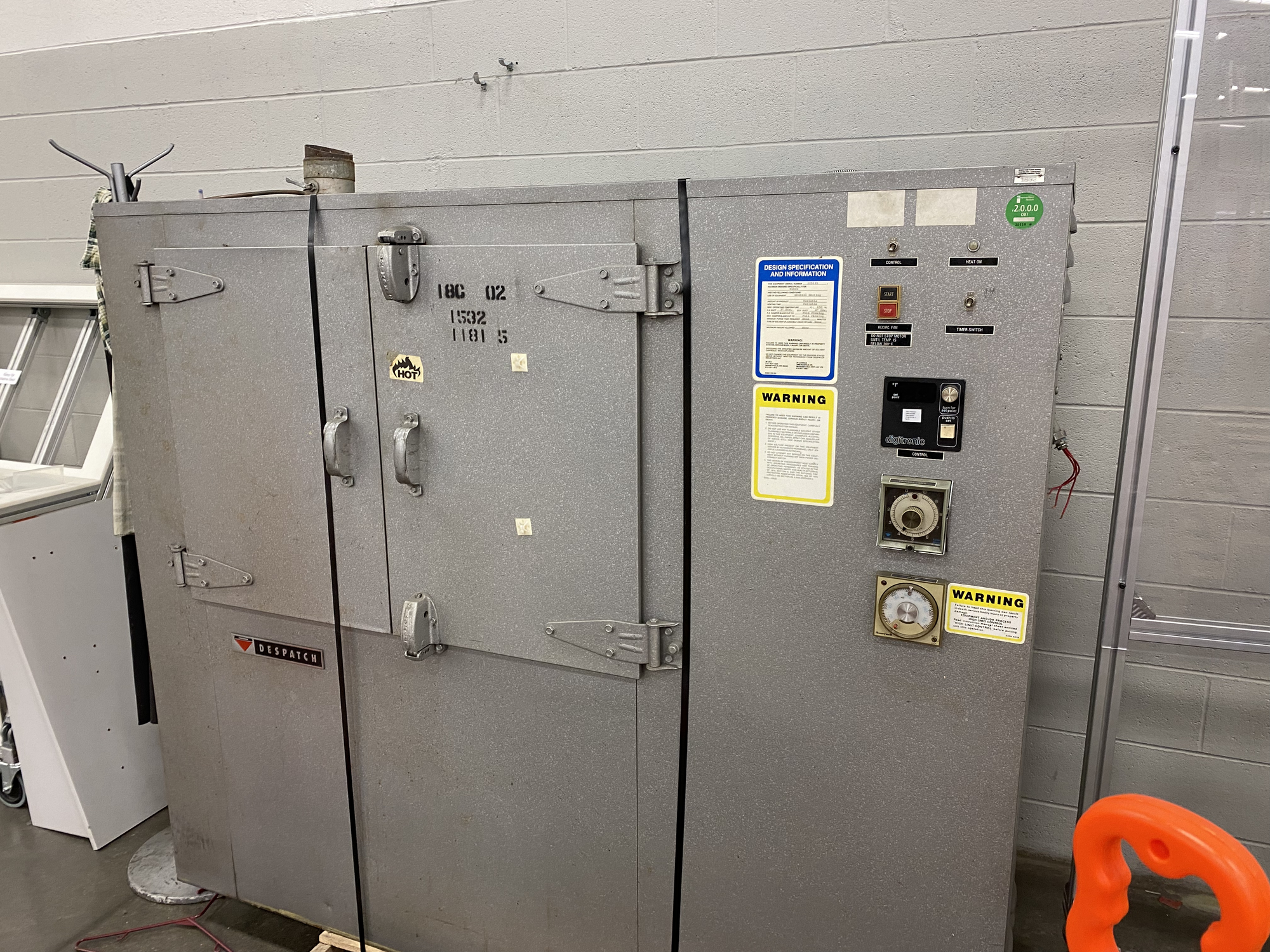

650-DEGREE DESPATCH ELECTRIC BATCH TYPE OVEN
Serial No 125135, Model V-23HD
| Chamber-W | 36" | 914.4 mm |
| Chamber-L | 19" | 482.6 mm |
| Chamber-H | 25" | 635 mm |
| Max Temperature | 650°F | 343.3°C |
650-DEGREE DESPATCH ELECTRIC BATCH TYPE OVEN
Serial No 125135, Model V-23HD
EQUIPPED WITH:
Digitronic Control
Timer - Hi-Limit Setting
(2) Trays
Dual Swing Doors
CATALOG SPECIFICATIONS:
Temperature Rating, Degrees Fahrenheit 650-DEGREES
Temperature Rating, Degree Centigrade 345-DEGREES
Heater Watt Rating 9 KW
Internal Dimensions, Width 36"
Internal Dimensions, Depth 19"
Internal Dimensions, Height 25"
Electrical System 480/3/60
F.O.B. OUR WAREHOUSE
