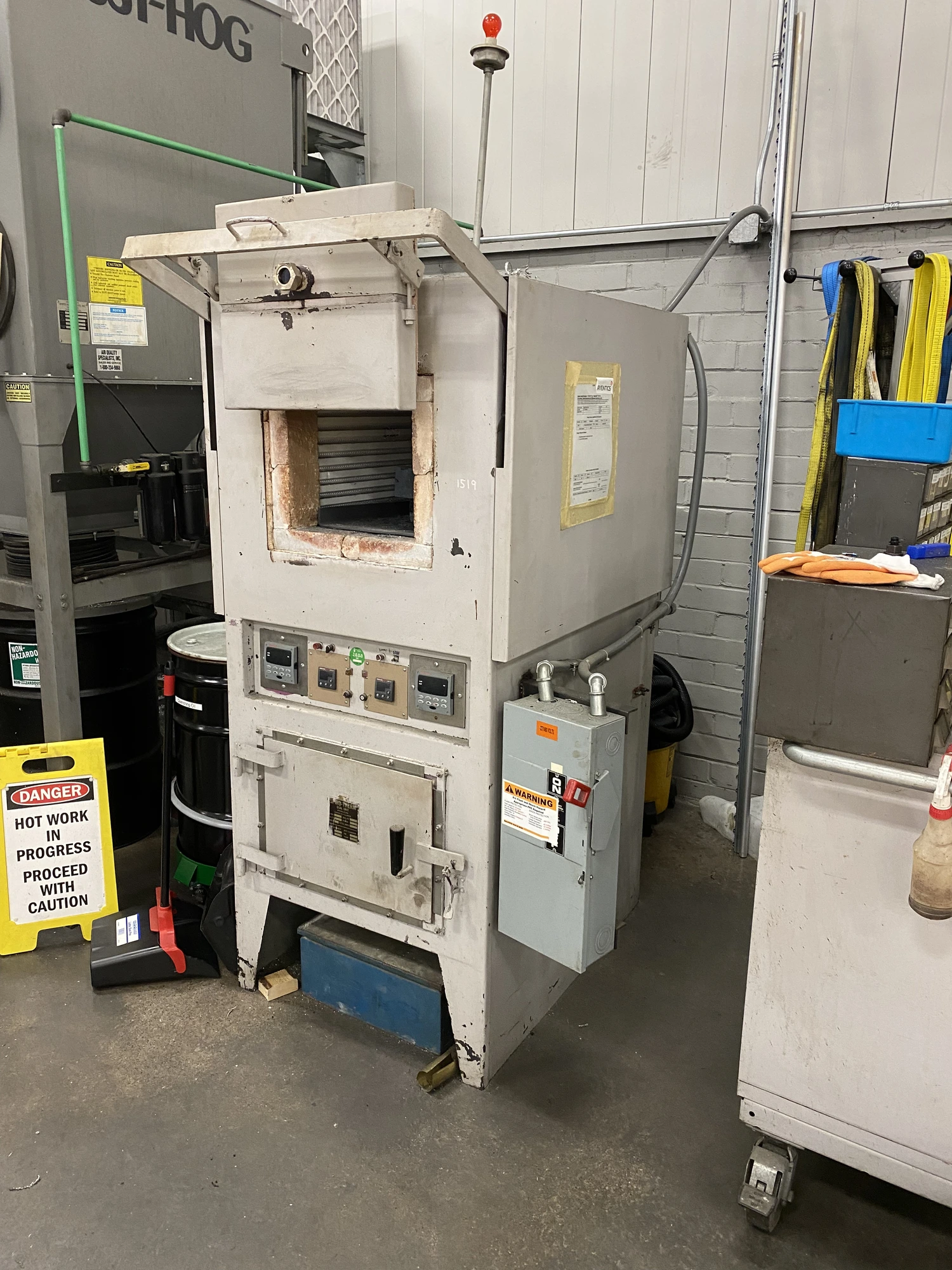

DU1224 MCELEVAN "SPIRO-THERM" COMBINATION HARDENING & DRAWING DUAL UNIT BOX FURNACE
Serial No 412, Model DU1224
| Chamber-W | 16" | 406.4 mm |
| Chamber-L | 25" | 635 mm |
| Chamber-H | 16" | 406.4 mm |
| Max Temperature | 1,200°F | 648.9°C |
| Dimensions | 34x72 | 34x72 |
| Weight | 1400 | 1400 |
DU1224 MCELEVAN "SPIRO-THERM" COMBINATION HARDENING & DRAWING DUAL UNIT BOX FURNACE
Serial No 412, Model DU1224
EQUIPPED WITH:
Hardening Chamber
Drawing Chamber
Honeywell Controls
CATALOG SPECIFICATIONS:
Hardening Chamber Temperature Rating 1100-DEGREES F
Hardening Chamber Door, W x H 14" x 12"
Hardening Chamber Dimensions, W x H x D 16" x 16" x 25"
Hardening Chamber, KW Rating 15 KW
Hardening Hearth, W x L 12" x 24"
Drawing Chamber Temperature Rating 1200-DEGREES F
Drawing Chamber Door, W x H 18" x 18"
Drawing Chamber Dimensions, W x H x D 18" x 12" x 24"
Drawing Chamber, KW Rating 18 KW
Overall Dimensions, W x D 34" x 72"
Overall Height 72"
Electrical System 480/3/60
Weight Approximately 1400 LBS
F.O.B. OUR WAREHOUSE
