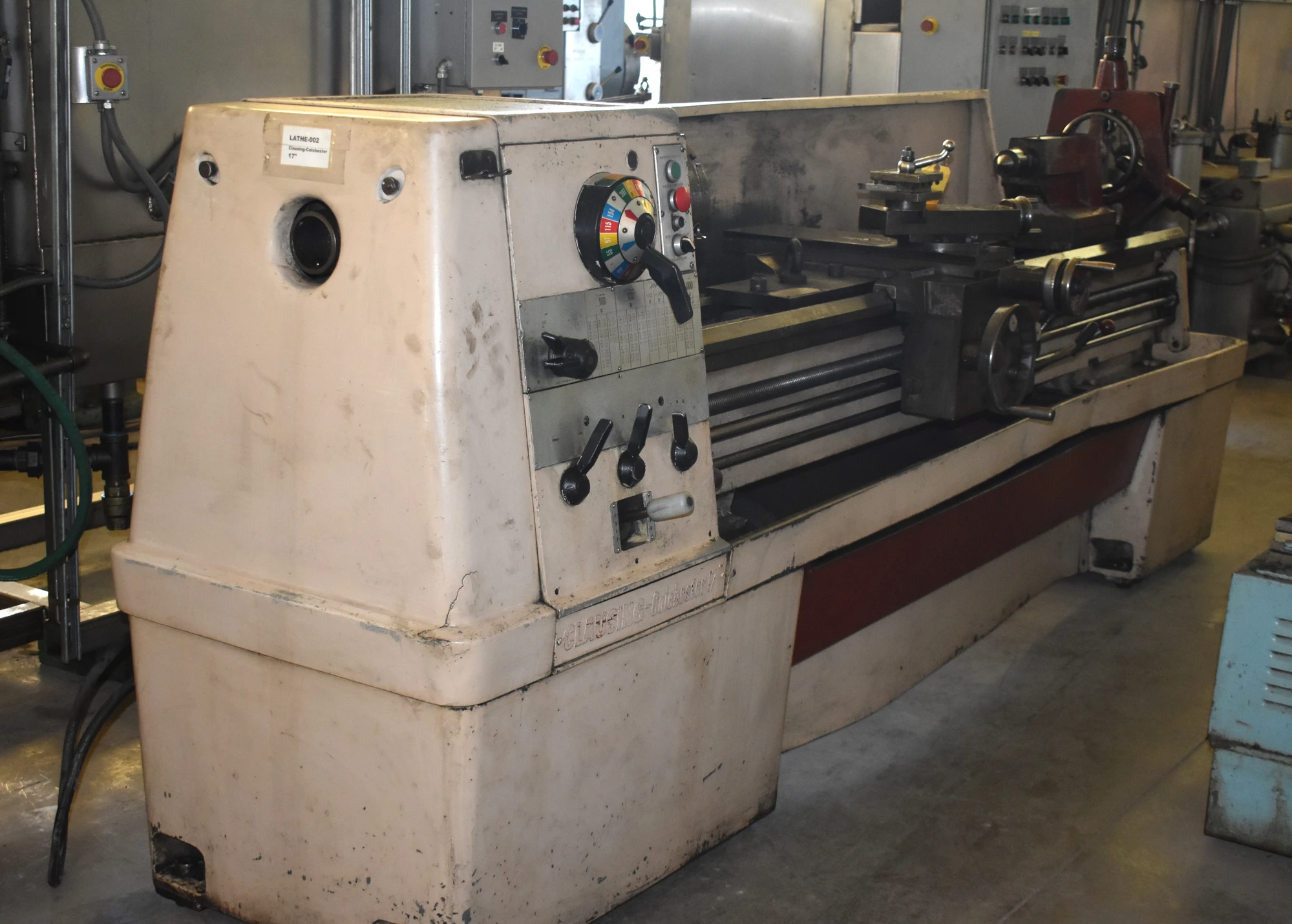

USED CLAUSING-COLCHESTER 17

17"/17.2" x 80" CLAUSING-COLCHESTER "17"
ENGINE LATHE
Serial No 7/0220/12751, Model 17, Series 8000

EQUIPPED WITH:
12" 4-Jaw Chuck - 12" 3-Jaw Chuck - 10" 3-Jaw Chuck
4-Way Tool Post - Hardened Gears
Induction Hardened & Ground Bed Ways
Universal Gear Box (U.S. and Metric Threads)
Tailstock Centers
Full Length Coolant-Chip Pan

CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.06"
Swing Over Bed Ways, Rated 17"
Swing Over Bed Ways, Actual 17.25"
Swing Over Cross-Slide 10.5"
Distance Between Centers 80"
Cross-Slide Cross-Feed Travel 12.25"
Compound-Rest Travel 6"
Tailstock, Spindle Diameter 2.94"
Tailstock, Spindle Travel 8.5"
Tailstock, Spindle Taper #5 MT
(16) Spindle Speeds, Range 20 to 1600 RPM
Carriage Longitudinal Feeds .002 to .032 IPR
Cross-Slide Cross Feeds .001 to .016 IPR
(38) U.S. Thread Changes, Range 2 to 72 TPI
(40) Metric Thread Changes, Range .4 to 14
Main Motor, Horsepower 10 HP
Floor Space Required, L x D 11'6" x 3'6"
Overall Height 4'4"
Weight, Approximately 6000 LBS
F.O.B. OUR WAREHOUSE
