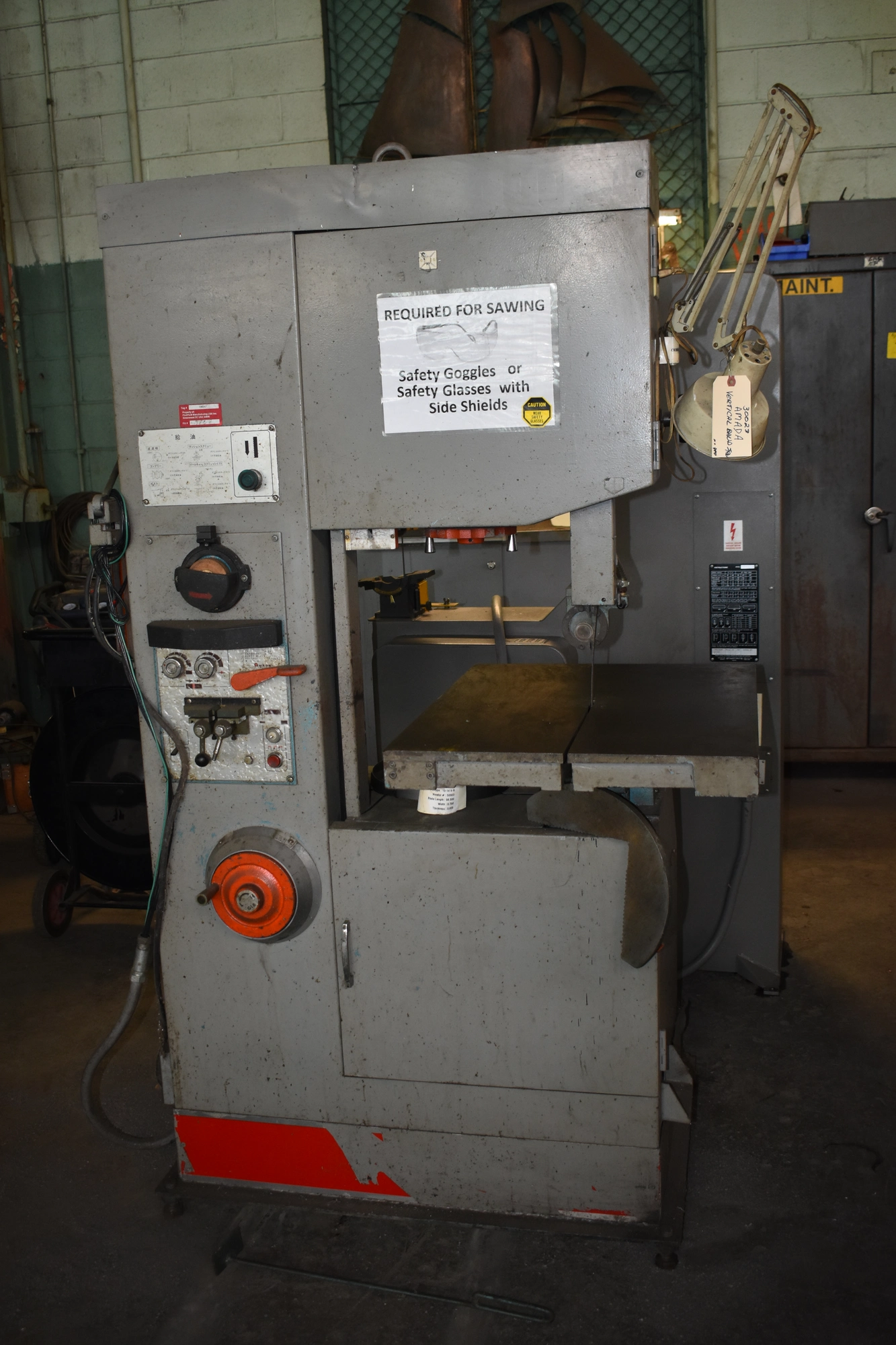

16" x 10" AMADA VERTICAL BAND SAW
Serial No 810433, Model V400,
| Throat | 16" | 406.4 mm |
| Work Height | 10" | 254 mm |
| Blade Length | 132" | 3,352.8 mm |
| Dimensions | 3'8" x 4'1" | 3'8" x 4'1" |
| Weight | 1400 LBS | 1400 LBS |
16" x 10" AMADA VERTICAL BAND SAW
Serial No 810433, Model V400,
EQUIPPED WITH:
Blade Welder & Grinder
Tilting Table
Variable Band Speed
CATALOG SPECIFICATIONS:
Work Capacity, Nominal 16" x 10"
Work Height Capacity, Maximum 10"
Throat Depth, Rated 16"
Table Dimensions (Overall), W x L 21" x 27.;5"
Table Tilt, Left 45-DEGREES
Table Tilt, Right 10-DEGREES
Saw Blade Length, Range 132" to 139"
Blade Motor KW Rating 1.5 KW
Grinder Motor KW Rating .06 KW
Floor Space Required, W x D 3'8" x 4'1"
Overall Height 6'6"
Weight, Approximately 1400 LBS
F.O.B. OUR WAREHOUSE
