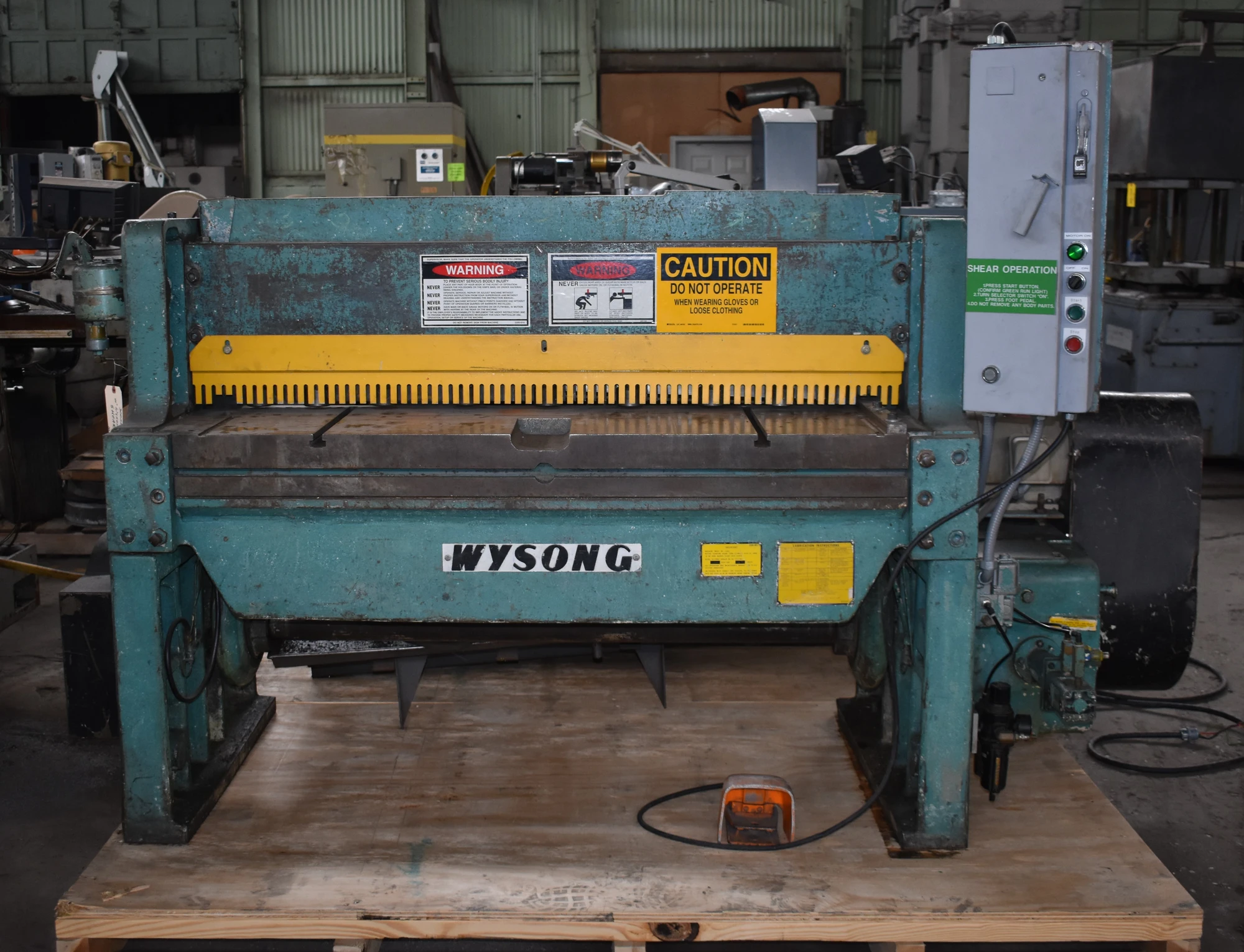

52" X 10 GA. WYSONG "1052" MECHANICAL POWER SQUARING SHEAR - 24" manual back gauge - air clutch - holddowns
Serial No P58-238, Model 1052
| Max Gauge | 12 gauge | 12 gauge |
| Length of Blade | 52" | 1,320.8 mm |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 24" | 609.6 mm |
| SPM | 60 strokes/min. | 60 strokes/min. |
| Dimensions | 99in x 85in x 50in | 99in x 85in x 50in |
| Weight | 5700 lbs | 5700 lbs |
52" X 10 GA. WYSONG MECHANICAL POWER
SQUARING SHEAR
Serial No P58-238, Model 1052
EQUIPPED WITH:
24" Rear Operated Manual Back Gauge
Air Clutch - Electric Foot Switch
Spring Actuated Holddowns
Bijur One Shot Lubrication
CATALOG SPECIFICATIONS:
Capacity, Mild Steel 52" x 10 GA.
Capacity, Stainless Steel 52" x 12 GA.
Strokes Per Minute 60 SPM
Rake Upper Blade 13/32"
Number Of Holddown Feet 9
Holddown Feet Centers 5" to 7"
Motor, KV Rating 4.1 KV
Floor Space, L x W 99" x 85"
Overall Height 50"
Weight, Approximately 5700 LBS.
F.O.B. OUR WAREHOUSE
