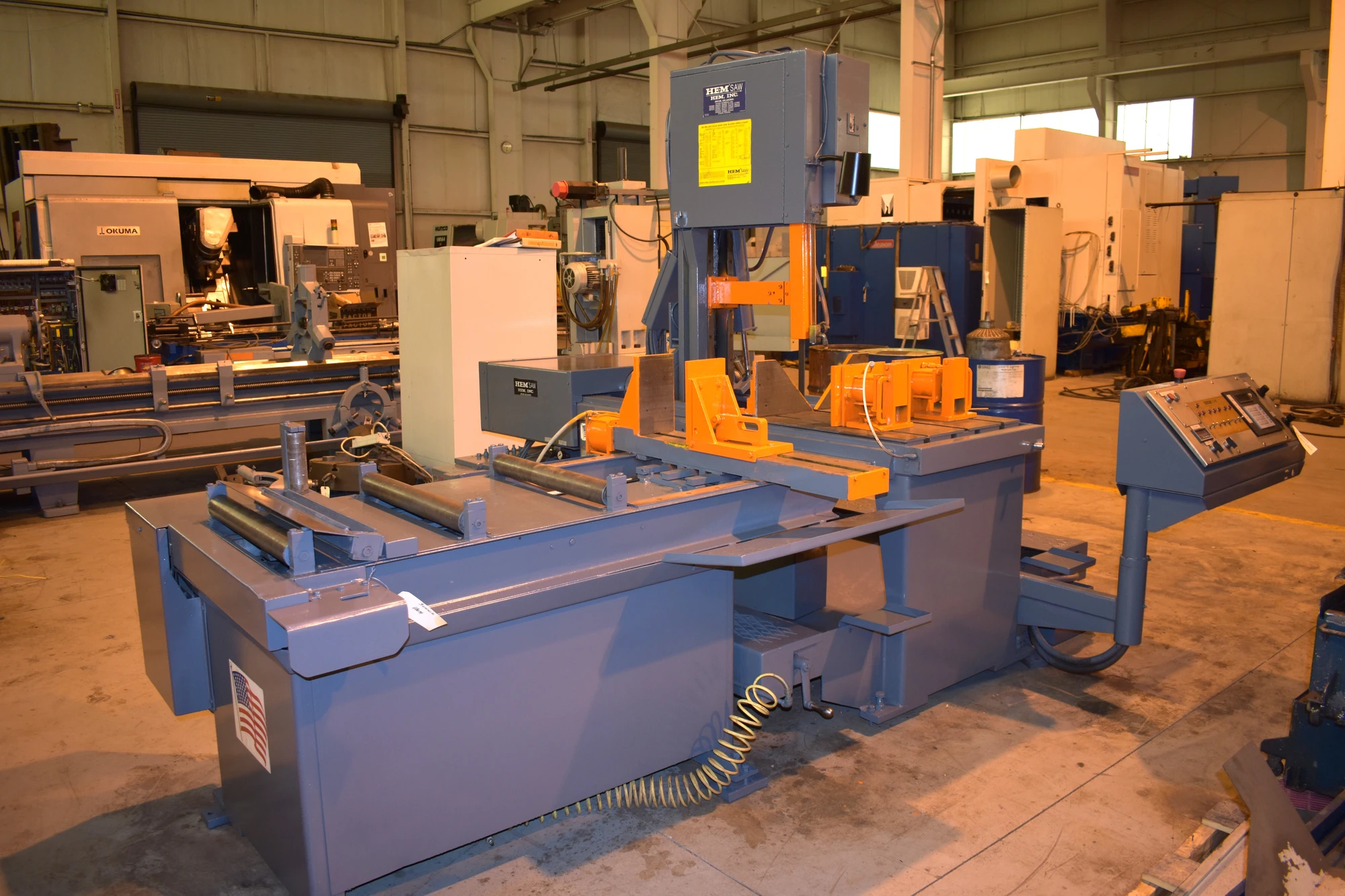

18" x 22" HEM AUTOMATIC TILTING-HEAD VERTICAL BAND SAW
Serial No 674499, Model V100LA-3,
| Throat | 18" | 457.2 mm |
| Work Height | 22" | 558.8 mm |
| Power | 5 hp | 3.7 kW |
| Blade Width | 1.25" | 31.75 mm |
| Blade Length | 180" | 4,572 mm |
| FPM | 60 to 400 | 60 to 400 |
| Dimensions | 8'8" x 11' x 7'2" | 8'8" x 11' x 7'2" |
18" x 22" HEM AUTOMATIC TILTING-HEAD VERTICAL BAND SAW
Serial No 674499, Model V100LA-3,
EQUIPPED WITH:
Swing Away Control Console (All Function Control)
Powered Tilting-Head Design w/LED
Automatic Feed System
Clamping Vises (Main & Feed) w/Variable Vise Pressure
Air Powered Blade Tensioning
Powered Guide Arm
CATALOG SPECIFICATIONS:
Work Capacity, Nominal 18" x 22"
Work Capacity 45-Degree Blade, Left 18" x 15"
Work Capacity 45-Degree Blade, Right 18" x 14"
Work Height Capacity, Maximum 22"
Throat Depth, Rated 18"
Head Tilt, Left 45-DEGREES
Head Tilt, Right 45-DEGREES
Blade Width 1.25"
Blade Lenth 15'
Blade Thickness .042"
Blade Speeds, Infinitely Variable 60 to 400 SFPM
Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Overall Dimensions, W x D 8'8" x 11'
Overall Height 7'2"
F.O.B. OUR WAREHOUSE
