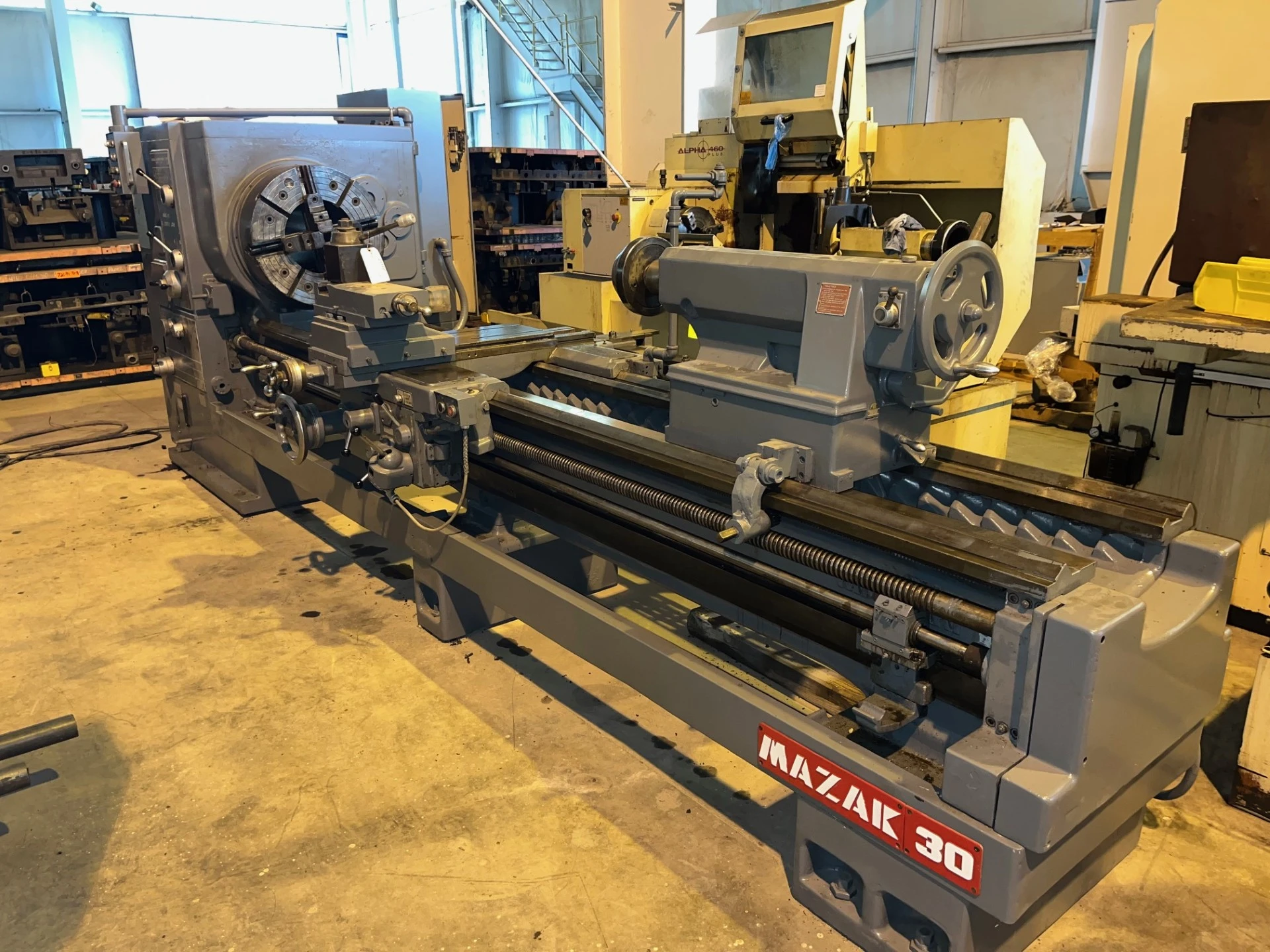

USED MAZAK MAZAK 30

30" x 100" MAZAK HEAVY-DUTY HOLLOW-SPINDLE

OIL-COUNTRY ENGINE LATHE W/TAPER

ATTACHMENT AND INCH/METRIC THREADING

Serial No 41644W, Model Mazak-30,

Series "Heavy-Duty Oil Country"

30" x 100" MAZAK HEAVY-DUTY HOLLOW-SPINDLE
OIL-COUNTRY ENGINE LATHE W/TAPER
ATTACHMENT AND INCH/METRIC THREADING
Serial No 41644W, Model Mazak-30,
Series "Heavy-Duty Oil Country"

EQUIPPED WITH:
Taper Attachment - ASA A2-20" Spindle Nose
(2) 24" 4-Jaw Chucks (Front & Rear)
Power Rapid Traverse - Threading Dial
Threading (Inch-Metric Full-Length Lead Screw)
Hardened & Ground Bed Ways

CATALOG SPECIFICATIONS:
Hole Thru Spindle...................... 12.5"
Swing Over Bed Ways, Rated............. 30"
Swing Over Cross-Slide................. 20.75"
Distance Between Centers............... 100"
Cross-Slide Cross-Feed Travel.......... 21.25"
Compound-Rest Top Slide Travel......... 9.875"
Tailstock, Spindle Diameter............ 3.93"
Tailstock, Spindle Travel.............. 11.81"
Tailstock, Spindle Taper............... #6 MT
(16) Spindle Speeds, Range............. 5 to 300 RPM
(40) Carriage Longitudinal Feeds...... .0025 to .0356 IPR
(40) Carriage Longitudinal Feeds .06 to .89 MMPR
(40) Cross-Slide Cross Feeds.......... .0012 to .178 IPR
(40) Cross-Slide Cross Feeds .03 to .45 MMPR
Whitworth Thread Changes, Range........ .1 to 28 TPI
Metric Thread Changes, Range........... 1 to 28 MM
Module Thread Changes, Range........... .5 to 7 M
D.P. Thread Changes, Range............. 4 to 56 D.P.
Motor Horsepower 20 HP
Floor Space Required, L x D............ 190" x 62"
Weight, Approximately.................. 16,850 LBS
F.O.B. OUR WAREHOUSE
