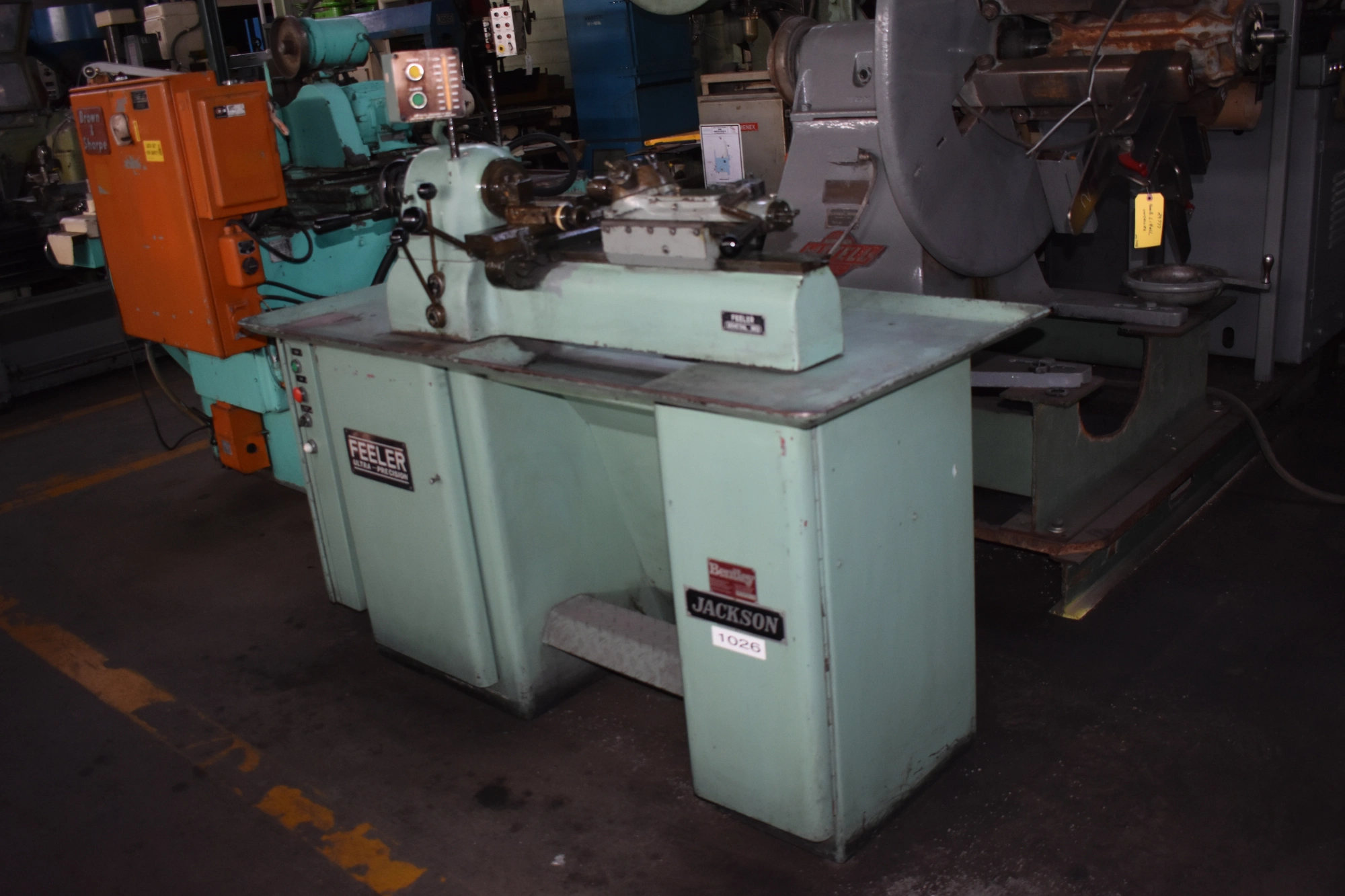

FEELER HIGH-SPEED ULTRA-PRECISION SECOND
OPERATION TURRET LATHE
Serial No 690916,
| Swing | 9" | 228.6 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 2,303,500 RPM | 2,303,500 RPM |
| Dimensions | 36 inches | 36 inches |
| Weight | 1000 LBS | 1000 LBS |
FEELER HIGH-SPEED ULTRA-PRECISION SECOND
OPERATION TURRET LATHE
Serial No 690916,
EQUIPPED WITH:
6-Position Automatic Indexing Turret
5C Quick Collet Closer (Lever Type)
Infinitely Variable Speed Drive
Cross-Slide & Top Slide
Dovetail Bed - Hardened & Ground Ways
Coolant System (Built-In)
CATALOGU SPECIFICATIONS:
Hole Thru Spindle 1.156"
Capacity, Round 5C Collet 1.06"
Capacity, Square 5C Collet .75"
Capacity, Hexagon 5C Collet .875"
Swing Over Bed Ways 9"
Length of Bed 36"
Cross Slide Travel 3.75"
Turret Slide Travel 4"
Turret Holes Diameter .625"
Spindle Speeds, Variable Range 230 to 3500 RPM
Spindle Motor, Horsepower 2 HP
Weight, Approximately 1000 LBS
NOTE: This Lathe Is A Copy Of A DV59 Hardinge
Precision Lathe.
F.O.B. OUR WAREHOUSE
