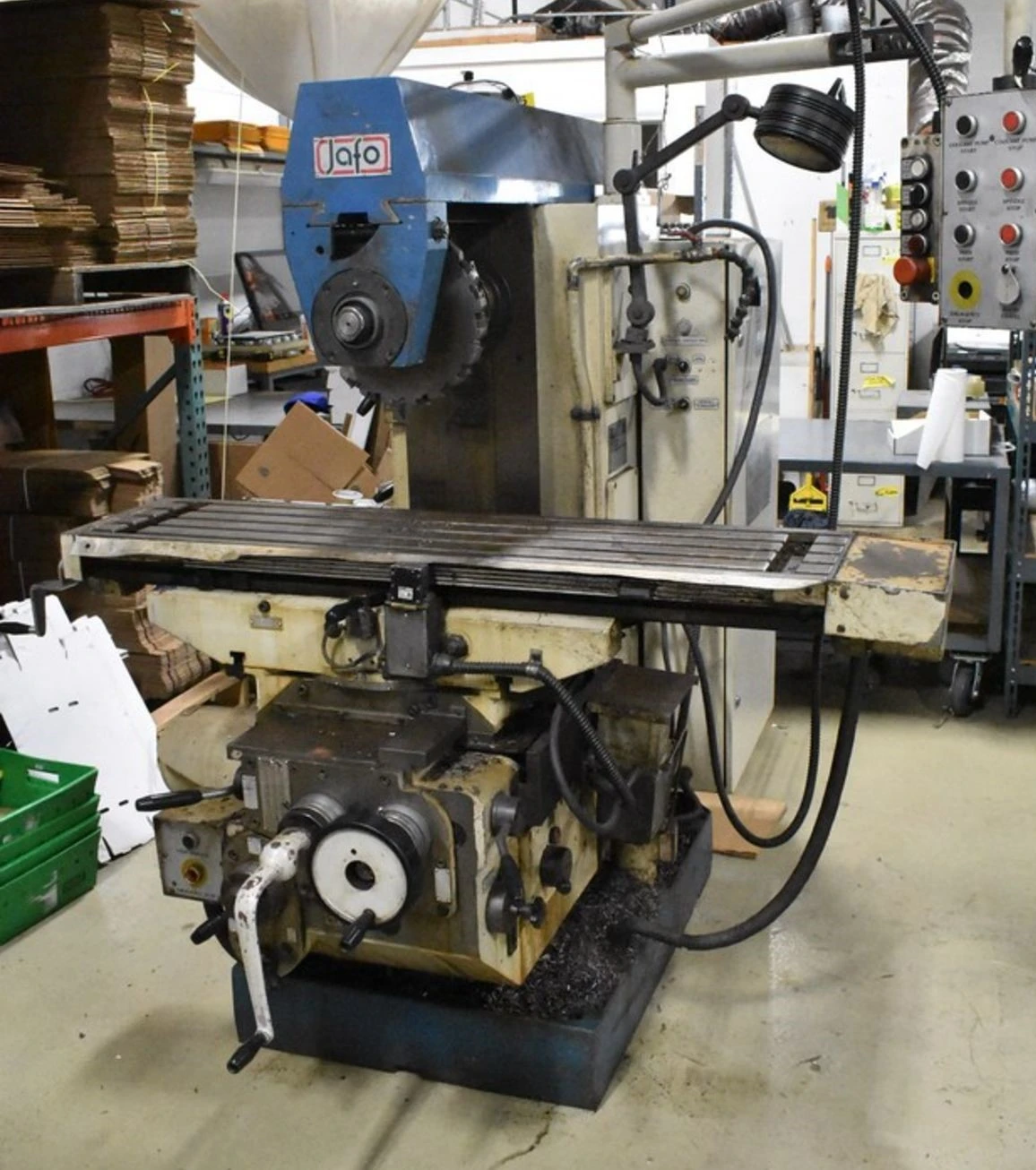

FWF 32 TOOLMEX/JAROCIN UNIVERSAL
HORIZONTAL MILL
New 2000, Serial No 2080, Model FWF 32
| Table Size-W | 12.5" | 317.5 mm |
| Table Size-L | 55" | 1,397 mm |
| Travel-Long | 37.4" | 949.96 mm |
| Travel-Cross | 17.7" | 449.58 mm |
| Travel-Vert | 12.6" | 320.04 mm |
| RPM | 1,800 RPM | 1,800 RPM |
| Dimensions | 8'4" x 8'6" x 6'0" | 8'4" x 8'6" x 6'0" |
| Weight | 6650 LBS | 6650 LBS |
FWF 32 TOOLMEX/JAROCIN UNIVERSAL
HORIZONTAL MILL
New 2000, Serial No 2080, Model FWF 32
EQUIPPED WITH:
Pendant Control w/Rapid Traverse
Knee Motor - Arbor Support - Arbor
Universal Swivelling Table/Saddle (45-Degree)
Automatic Lube System
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 12.5" x 55"
Table Longitudinal Travel (X-Axis) 37.4"
Saddle In-Out Cross Travel (Z-Axis) 17.7"
Knee Vertical Travel (Y-Axis) 12.6"
Table Load Capacity 550 LBS
Spindle-Center to Table-Top, Minimum 1.96"
Spindle-Center to Table-Top, Maximum 17.7"
Spindle Speeds, Range 56 to 1800 RPM
Floor Space Required, W x D 8'4" x 8'6"
Overall Height 6'0"
Weight, Approximately 6650 LBS
F.O.B. OUR WAREHOUSE
