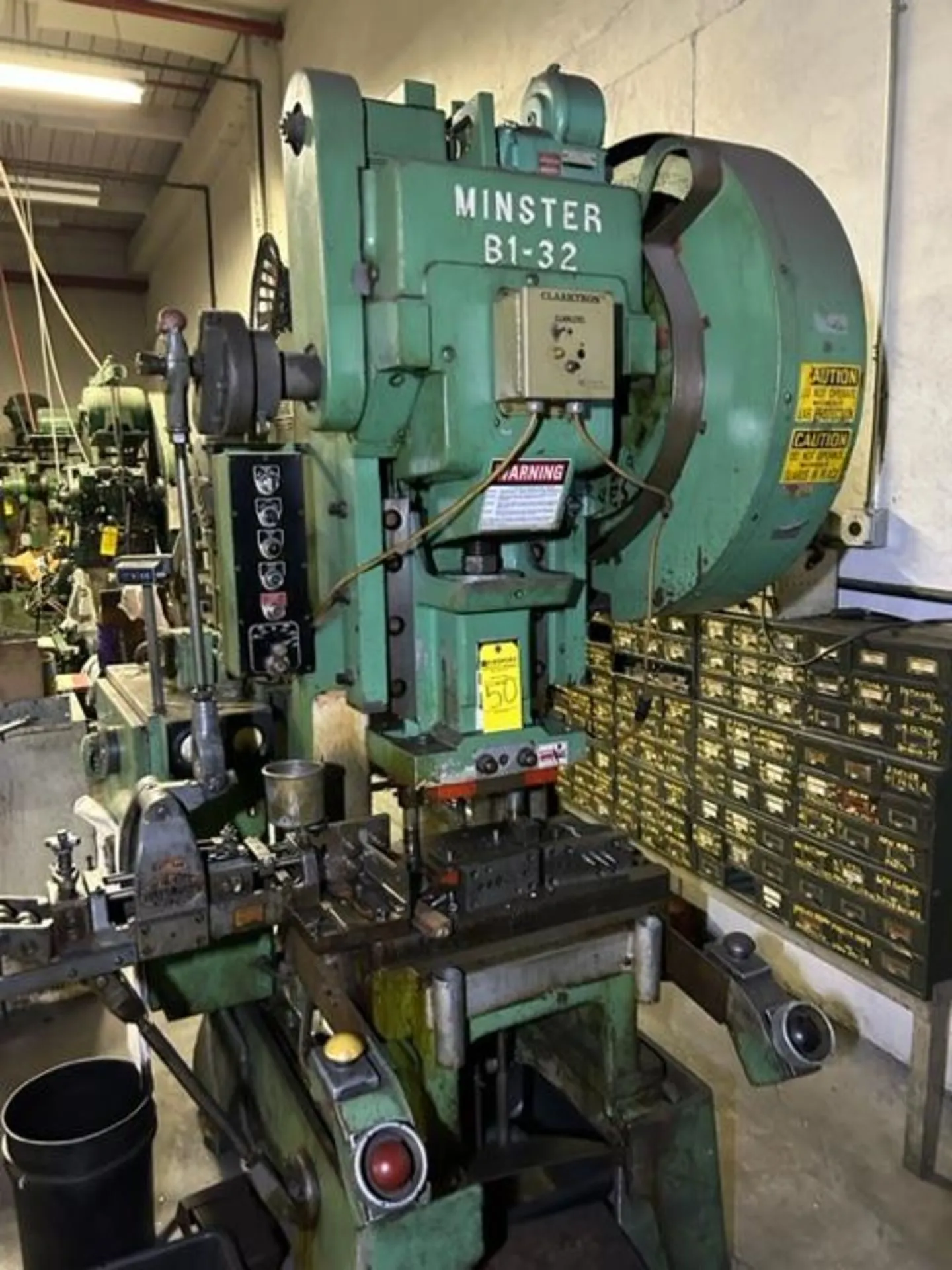

32 TON MINSTER HIGH-SPEED FIXED BASE
GAP-FRAME PRESS
Serial No B1-32-18559, Model B1-32,
| Tonnage | 32 T | 29.03 t |
| Stroke | 2" | 50.8 mm |
| Shut Height | 9.5" | 241.3 mm |
| Power | 7.5 hp | 5.6 kW |
| Bed W | 15" | 381 mm |
| Bed L | 24" | 609.6 mm |
| SPM | 225,450 strokes/min. | 225,450 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 49" x 32" x 100" | 49" x 32" x 100" |
| Weight | 5700 LBS | 5700 LBS |
32 TON MINSTER HIGH-SPEED FIXED BASE
GAP-FRAME PRESS
Serial No B1-32-18559, Model B1-32,
EQUIPPED WITH:
Air Clutch & Brake
Flywheel Type Drive w/7.5 HP Motor
24A U.S. Slide Feeder
Dual Palm Button Controls
CATALOG SPECIFICATIONS:
Tonnage Capacity 32 TON
Stroke Length 2"
Shut Height To Bed, (SDAU) 9.5"
Ram Adjustment 2.25"
Slide Area, L-R x F-B 14" x 9.5"
Bed Area, L-R x F-B 24" x 15"
Bolster Thickness 2.5"
Bed Opening, L-R x F-B 12" x 9"
Throat Depth 8"
Width Of Opening In Back 11"
Strokes Per Minute, Variable 225 to 450 SPM
Motor Horsepower 7.5 HP
Floor Space Base, F-B x R-L 49" x 32"
Overall Height 100"
Weight, Approximately 5700 LBS
F.O.B. OUR WAREHOUSE
