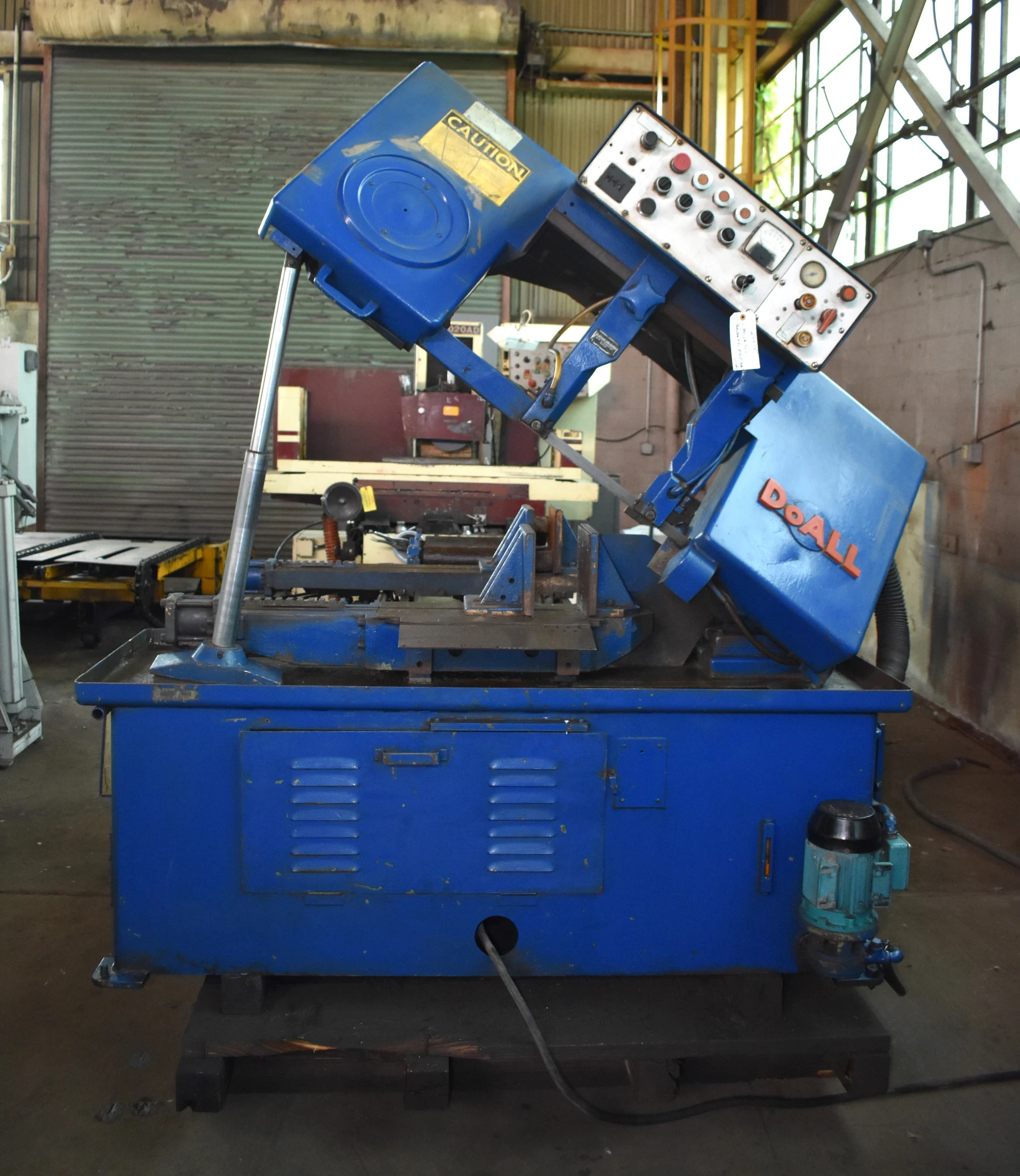

C80 DOALL AUTOMATIC HORIZONTAL BAND SAW
Serial No. 190-75725, Model C80
| Rect-Cap (H) | 12" | 304.8 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 12.75" | 323.85 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 144" | 3,657.6 mm |
| Dimensions | 21' x 6'1'' x 7'4'' | 21' x 6'1'' x 7'4'' |
| Weight | 4500 LBS | 4500 LBS |
C80 DOALL AUTOMATIC HORIZONTAL BAND SAW
Serial No. 190-75725, Model C80
EQUIPPED WITH:
6' Automatic Hydraulic Stock-Feed Table
Hydraulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed & Down-Feed
Automatic Hydraulic Band Tension
Built-in Coolant System
CATALOG SPECIFICATIONS:
Maximum Capacity, Round Stock 12-3/4"
Maximum Capacity, Flat Stock 12" x 16"
Band Length 144"
Band Width 1"
Band Thickness .035"
Band Speeds, Variable 85 to 450 FPM
Band Carrier Wheels, Diameter 16"
Motor, Horsepower 5 HP
Floor Space w/Stock-Feed Table, L x W 21' x 6'1"
Overall Height 7'4"
Weight, Approximately 4500 LBS
F.O.B. OUR WAREHOUSE
