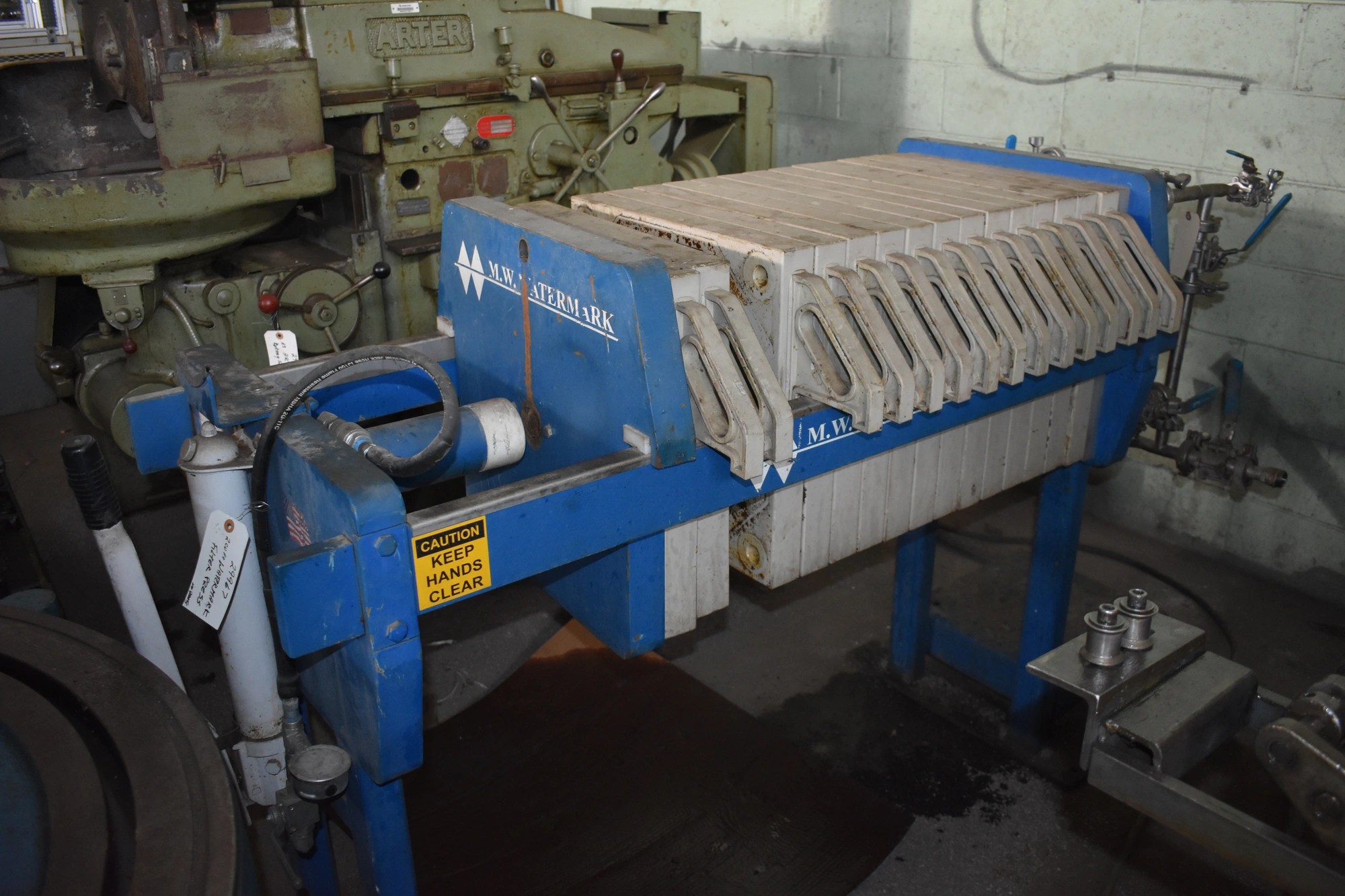

USED M.W. WATERMARK FP470G32L-14-2MXX

2 CU. FT. W.M. WATERMARK MANUAL/HYDRAULIC

FILTER PRESS

Serial No FP00634, Model FP470G321-14-2MXX

2 CU. FT. W.M. WATERMARK MANUAL/HYDRAULIC
FILTER PRESS
Serial No FP00634, Model FP470G321-14-2MXX

EQUIPPED WITH:
Manual Hydraulic Closure System
(14) Gasketed Filter Plates (470MM x 470MM)
Dumpster Discharge
Air Blow Regulator

CATALOG SPECIFICATIONS:
Volume Capacity, Rated 2 CU FT
Volume Capacity, Rated 45 SQ FT
Filter Plate Dimensions, L x W 470MM x 470MM
Filter Plate Dimensions, L x W 18.5" x 18.5"
Number Of Chambers 14
Clearance Floor to Press 26"
Chamber Thickness 32 MM
Feed Pressure Maximum 100 PSI
Air Supply Pressure 100 PSI
Hydraulic Closing Pressure, Maximum 7000 PSI
Relief Valve Setting 10000 PSI
Hydraulic Reservoir Capacity 2 GALLONS
Overall Dimensions, L x W 77" x 29"
Overall Height 46"

NOTE: This Press Has Only Been Used To Process
Vegetable Oil.
F.O.B. OUR WAREHOUSE
