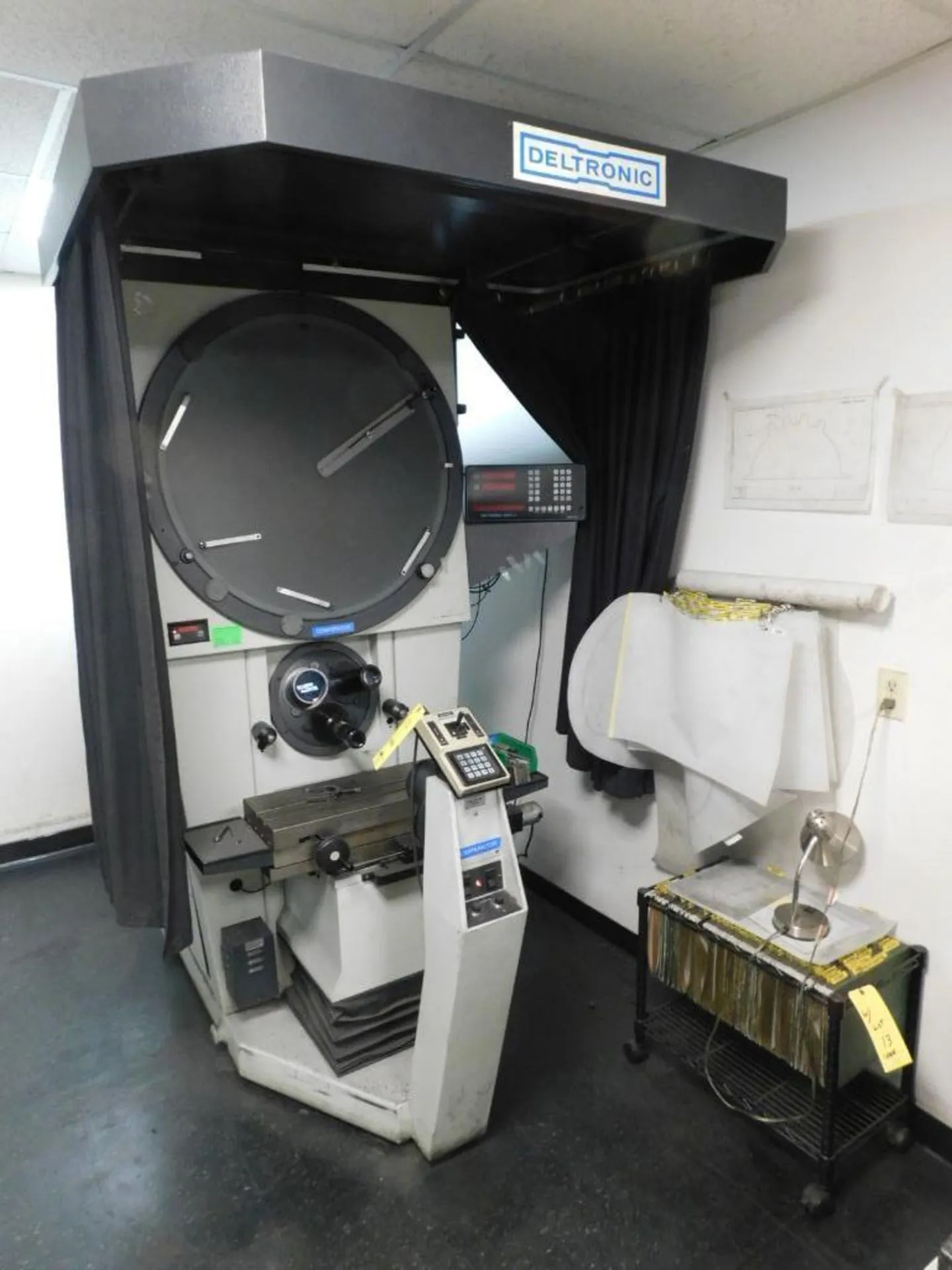

30" DELTRONIC "DH30-MPC 4ECNC" OPTICAL
COMPARATOR
Serial No 7104, Model DH30-MPC 4ECNC
| Dimensions | 4'7" x 7'9" x 7'3" (W x D x H) | 4'7" x 7'9" x 7'3" (W x D x H) |
| Weight | 2100 LBS | 2100 LBS |
30" DELTRONIC "DH30-MPC 4ECNC" OPTICAL
COMPARATOR
Serial No 7104, Model DH30-MPC 4ECNC
EQUIPPED WITH:
Deltronics MPC-4 Computerized Digital Readouts
w/Edge Sensing
Power Stage Drive w/Motorized Joystick Controller
Fiber Optic Surface Illumination
3-Position Lens Selector w/10X/20X/30X Lenses
Overhead Light Shield And Curtains
CATALOG SPECIFICATIONS:
Screen Diameter .......... 30"
Workstage Dimensions, W x L .......... 9" x 25"
Table Horizontal Travel, X-Axis .......... 12"
Motorized Focus Travel, Z-Axis .......... 3"
Table Vertical Travel, Y-Axis .......... 8"
Overall Dimensions, W x D .......... 4'7" x 7'9"
Overall Height .......... 7'3"
Weight, Approximately .......... 2100 LBS
F.O.B. OUR WAREHOUSE
