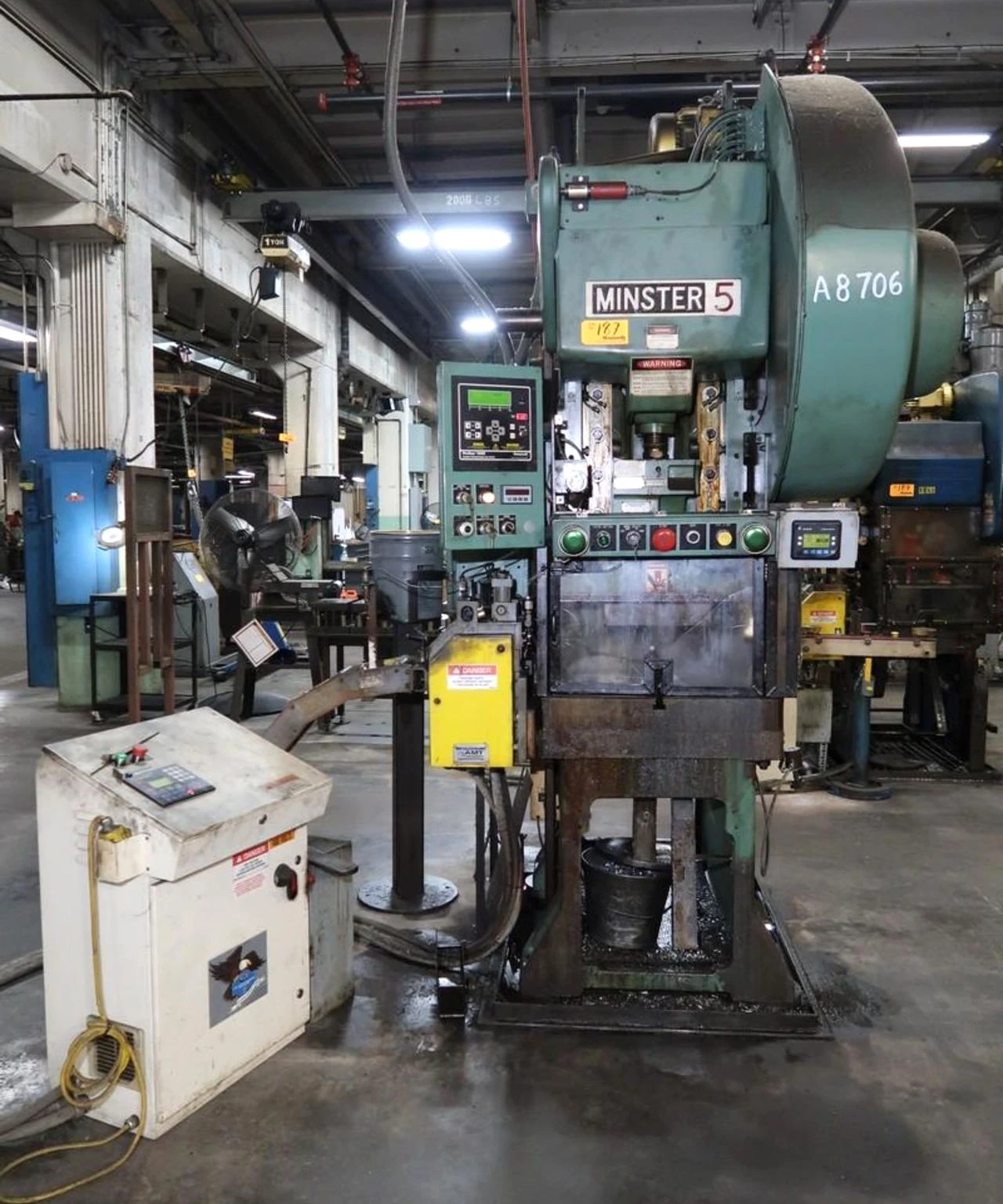

45 TON MINSTER FIXED BASE GAP-FRAME PRESS
New 1994, Serial No 59S-FB-28298, Model 59S,
| Tonnage | 45 T | 40.823 t |
| Stroke | 3" | 76.2 mm |
| Shut Height | 15.75" | 400.05 mm |
| Power | 5 hp | 3.7 kW |
| Bed W | 18" | 457.2 mm |
| Bed L | 28" | 711.2 mm |
| SPM | 120 strokes/min. | 120 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 28 x 18 | 28 x 18 |
| Weight | 10000 | 10000 |
45 TON MINSTER FIXED BASE GAP-FRAME PRESS
New 1994, Serial No 59S-FB-28298, Model 59S,
EQUIPPED WITH:
Minster Air Clutch & Brake
Dual Palm Buttons w/Allen Bradley Panelview 300
Micro PLC
Coe Servo-Master Servo-Feed Feeding System
w/Servo-Master 3 Controller
Cast Frame
CATALOG SPECIFICATIONS:
Tonnage Capacity, Heavy-Duty Rating .......... 45 TON
Stroke Length .......... 3"
Shut Height To Bed, (SDAU) .......... 15.75"
Shut Height To Bolster, (SDAU) .......... 12"
Slide Adjustment .......... 2.5"
Slide Area, L-R x F-B .......... 24" x 14"
Bed Area, L-R x F-B .......... 28" x 18"
Bed Opening, L-R x F-B .......... 16" x 12"
Diameter Intersecting Circle in Bed .......... 14"
Bolster Area, L-R x F-B .......... 28" x 18"
Bolster Thickness .......... 3.75"
Width Of Opening In Back .......... 13.5"
Throat Depth, Slide Center to Frame .......... 9.5"
Strokes Per Minute .......... 120 SPM
Motor Horsepower/RPM .......... 5 HP/1200 RPM
Press Weight, Approximately .......... 10000 LBS
F.O.B. OUR WAREHOUSE
Tonnage Capacity, Heavy-Duty Rating: 45 TON
Stroke Length: 3"
Slide Adjustment: 2.5"
Bolster Thickness: 3.75"
Strokes Per Minute: 120 SPM
Motor Horsepower/RPM: 5 HP/1200 RPM
Press Weight, Approximately: 10000 LBS
