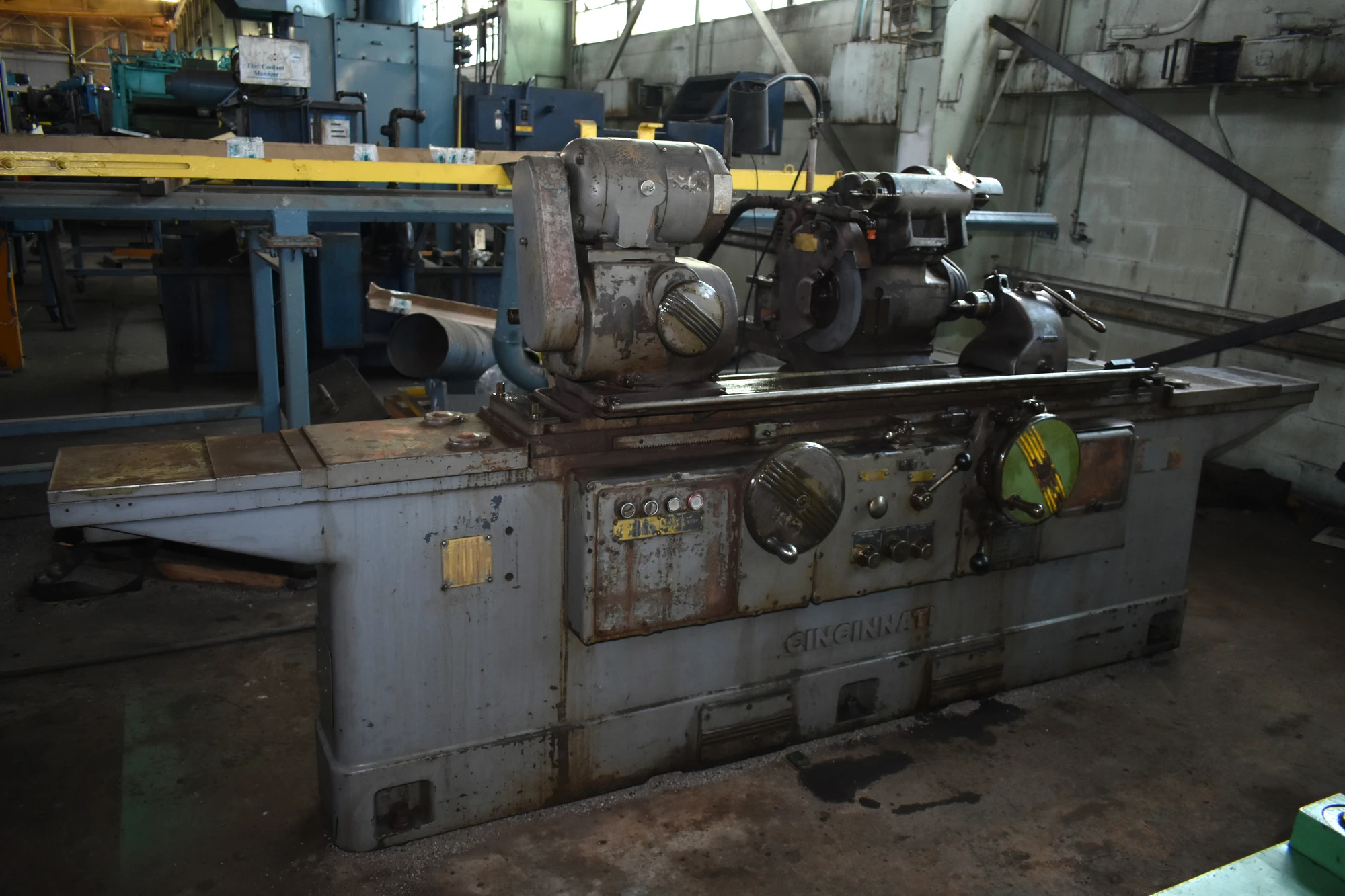

USED CINCINNATI MILACRON LL

12" x 36" CINCINNATI-MILACRON UNIVERSAL
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No 2U3D5B-22, Model LL

EQUIPPED WITH:
Swing Down Internal Grinding Spindle Attachment
8: 4-Jaw Chuck w/Jaws - Steady Rest
Follow Rest - Table Mounted Wheel Dresser
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 12.9375"
Grinding Diameter, Minimum 0"
Grinding Diameter, Maximum 12"
Distance Between Centers, Nominal 36"
Grinding Wheel Diameter, Standard 14"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 5"
Table Swivel Taper Toward Wheelhead 4.5" TPF
Table Swivel Taper Away Wheelhead 1.250" TPF
Headstock Swivel Angle Toward Wheelhead 90-DEGREES
Headstock Swivel Angle Away Wheelhead 30-DEGREES
Lower Grinding Wheelhead Swivel Range 90-DEGREES
Upper Grinding Wheelhead Swivel Range 30-DEGREES
Workhead and Tailstock Center Tapers #9 B&S
Workhead Spindle Speeds, Range 50 TO 500 RPM
Table Longitudinal Feeds, Infinite 3 TO 240 IPM
Grinding Wheelhead Spindle Motor 3 HP
Workhead Motor, Horsepower 1 HP AC
Floor Space Required, L x D 12'9" X 5'6"
F.O.B. OUR WAREHOUSE
