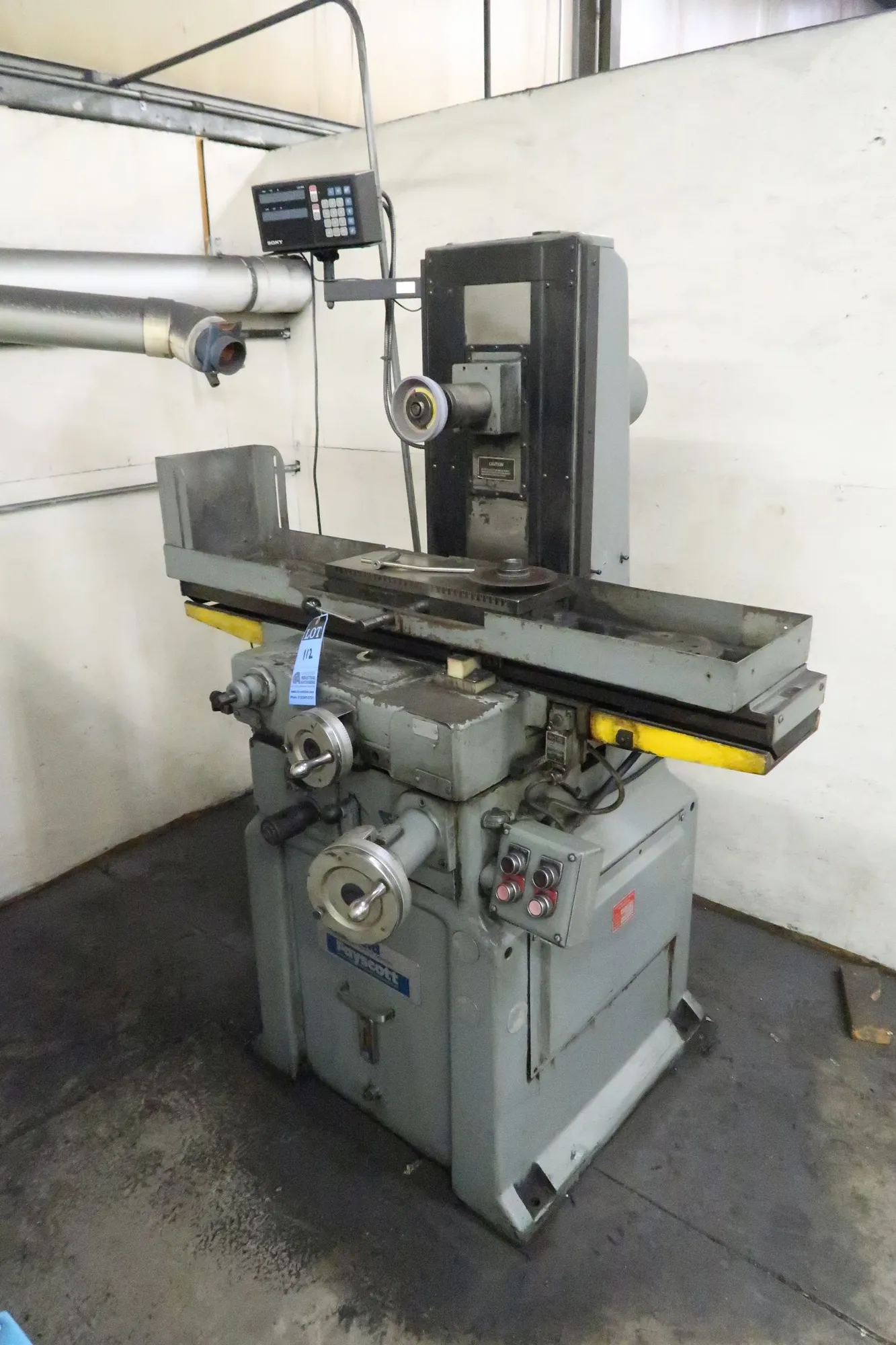

6" x 18" REID "REID-O-MATIC" HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 22035, Model HYD, Series Reid-O-Matic
| Table-W | 8" | 203.2 mm |
| Table-L | 53" | 1,346.2 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Power | 1 hp | 0.7 kW |
| Grinding Wheel Width | 6" | 152.4 mm |
| Dimensions | 71 x 36 x 68 | 71 x 36 x 68 |
| Weight | 2500 | 2500 |
6" x 18" REID "REID-O-MATIC" HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 22035, Model HYD, Series Reid-O-Matic
EQUIPPED WITH:
Sony LH31 Digital Readouts
Walker Permanent Magnetic Chuck
1 HP Cartridge Type Spindle Drive
Automatic Lubrication
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Table Dimenstions Overall, W x L .......... 8" x 53"
Grinding Width Capacity, Maximum .......... 6"
Grinding Length Capacity, Maximum .......... 18"
Table Longitudinal Travel .......... 22"
Table Cross Travel .......... 7"
Height Under 7" Grinding Wheel .......... 15"
Table Longitudinal Feed, Variable .......... 10 to 125 FPM
Power Cross Feed Range .......... .005 to 250 IPR
Grinding Wheel Spindle Motor .......... 1 HP/3600 RPM
Electrical System .......... 220-440/3/60
Floor Space Required, L x W .......... 71" x 36"
Overall Height .......... 68"
Weight, Approximately .......... 2500 LBS
F.O.B. OUR WAREHOUSE
Grinding Width Capacity, Maximum: 6"
Grinding Length Capacity, Maximum: 18"
Table Longitudinal Travel: 22"
Table Cross Travel: 7"
Table Longitudinal Feed, Variable: 10 to 125 FPM
Power Cross Feed Range: 005 to 250 IPR
Grinding Wheel Spindle Motor: 1 HP/3600 RPM
Electrical System: 220-440/3/60
Overall Height: 68"
Weight, Approximately: 2500 LBS
