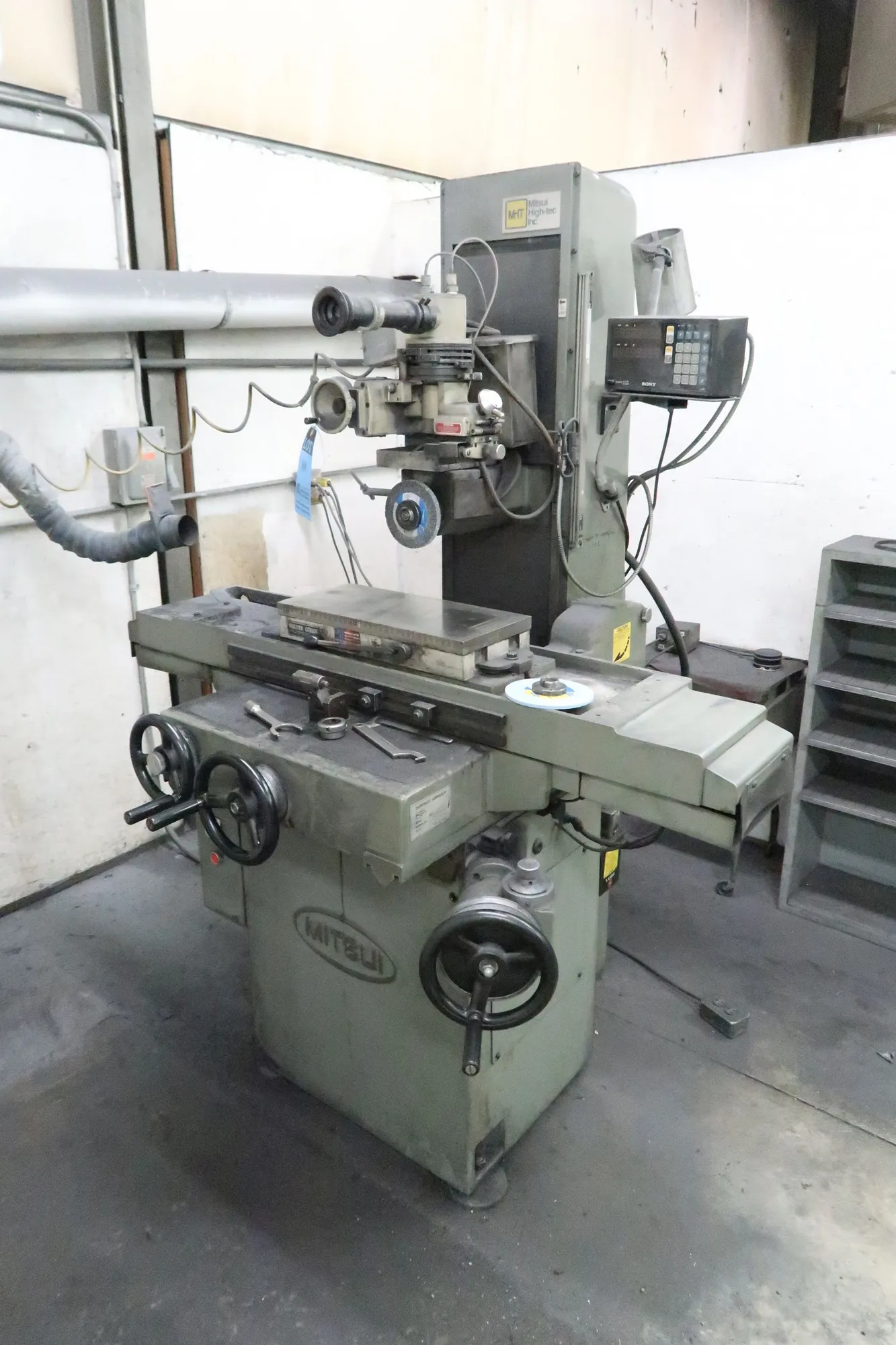

8" X 18" MITSUI HIGH-TECH "HIGH-PRECISON"
HAND-FEED HORIZONTAL-SPINDLE SURFACE
GRINDER w/OPTIDRESS MICROSCOPIC DRESSER
Serial No 2000106448, Model MSG-250MH
| Table-W | 8" | 203.2 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | Horz | Horz |
| Grinding Wheel Width | 0.75" | 19.05 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Weight | 2200 | 2200 |
8" X 18" MITSUI HIGH-TECH "HIGH-PRECISON"
HAND-FEED HORIZONTAL-SPINDLE SURFACE
GRINDER w/OPTIDRESS MICROSCOPIC DRESSER
Serial No 2000106448, Model MSG-250MH
EQUIPPED WITH:
Optidress Microscopic Form Wheel Dresser
w/Digital Readouts
Sony LH51 Digital Readouts
8" x 18" Walker-Ceramax Permanent Magnetic Chuck
Automatic Lubrication System
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Table Working Surface, W x L .......... 8" x 19"
Grinding Width Capacity, Maximum .......... 8"
Grinding Length Capacity, Maximum .......... 18"
Height Table to Spindle Center, Maximum .......... 20"
Longitudinal Table Travel, Maximum .......... 20"
Crossfeed Table Travel, Maximum .......... 10"
Grinding Spindle Speed .......... 3450 RPM
Grinding Wheel Diameter, Standard .......... 8"
Grinding Wheel Width .......... 3/4"
Grinding Wheel Hole Diameter .......... 1.25"
Weight, Approximately .......... 2200 LBS
F.O.B. OUR WAREHOUSE
Grinding Width Capacity, Maximum: 8"
Grinding Length Capacity, Maximum: 18"
Longitudinal Table Travel, Maximum: 20"
Crossfeed Table Travel, Maximum: 10"
Grinding Spindle Speed: 3450 RPM
Grinding Wheel Diameter, Standard: 8"
Grinding Wheel Width: 3/4"
Grinding Wheel Hole Diameter: 1.25"
Weight, Approximately: 2200 LBS
