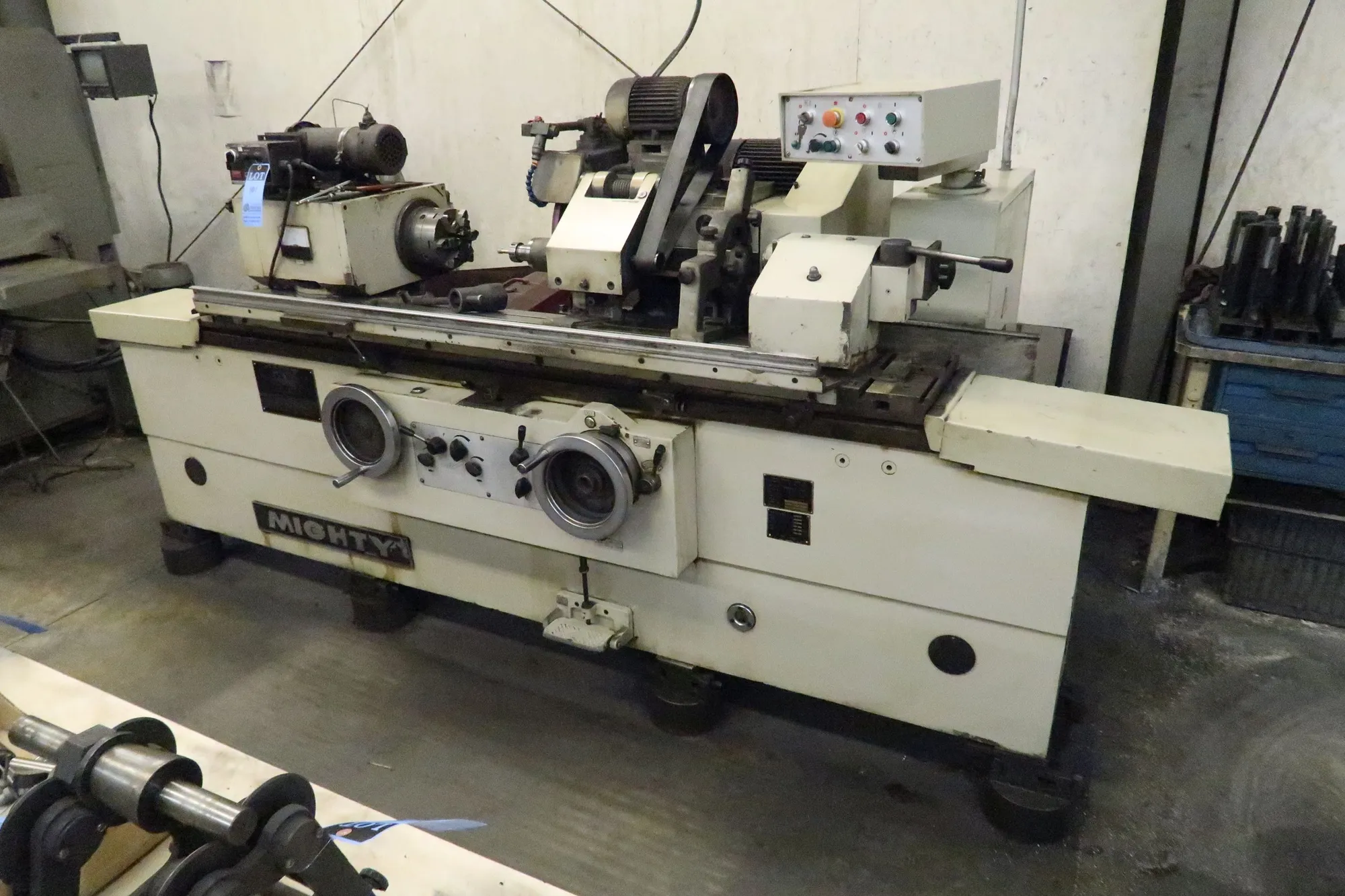

13" x 40" MIGHTY UNIVERSAL CYLINDRICAL GRINDER
w/SWING DOWN INTERNAL ATTACHMENT
Serial No 13X40, Model MCG-1340H,
| Swing | 13.5" | 342.9 mm |
| Centers | 40" | 1,016 mm |
| Plain or Angle Head | Plain | Plain |
| Grinding Wheel Dia. | 16" | 406.4 mm |
| Wheel Speed | 1,670 RPM | 1,670 RPM |
| Dimensions | 133 x 69 | 133 x 69 |
| Weight | 9460 | 9460 |
13" x 40" MIGHTY UNIVERSAL CYLINDRICAL GRINDER
w/SWING DOWN INTERNAL ATTACHMENT
Serial No 13X40, Model MCG-1340H,
EQUIPPED WITH:
Internal Grinding Attachment (Swing-Down)
Dayton DC Drive Vari-Speed Workhead
6" 6-Jaw Chuck w/Jaws - Steady Rest
10" 4-Jaw Chuck - Tooling - Centers
Wheel Balancing Fixture - Extra Grinding Wheels
Coolant System & Dust Collector
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum .......... 13.5"
Grinding Diameter, Maximum .......... 13"
Distance Between Centers, Nominal .......... 40"
Grinding Wheel Diameter, Standard .......... 16"
Grinding Wheel Width, Standard .......... 2.5"
Grinding Wheel Hole Diameter .......... 8"
Wheelhead Swivel Angle .......... +/- 30-DEGREES
Table Swivel Angle .......... 3 to 7-DEGREES
Workhead Swivel Range .......... 90-DEGREES
Workhead and Tailstock Center Tapers .......... #5 MT
Grinding Wheel Speed .......... 1670 RPM
Workhead Spindle Speeds, Range .......... 28 to 280 RPM
Table Longitudinal Feeds, Infinite .......... 100 to 4000 MMPM
Overall Dimensions, L x W .......... 133" x 69"
Overall Height .......... 70"
Weight, Approximately .......... 9460 LBS
F.O.B. OUR WAREHOUSE
