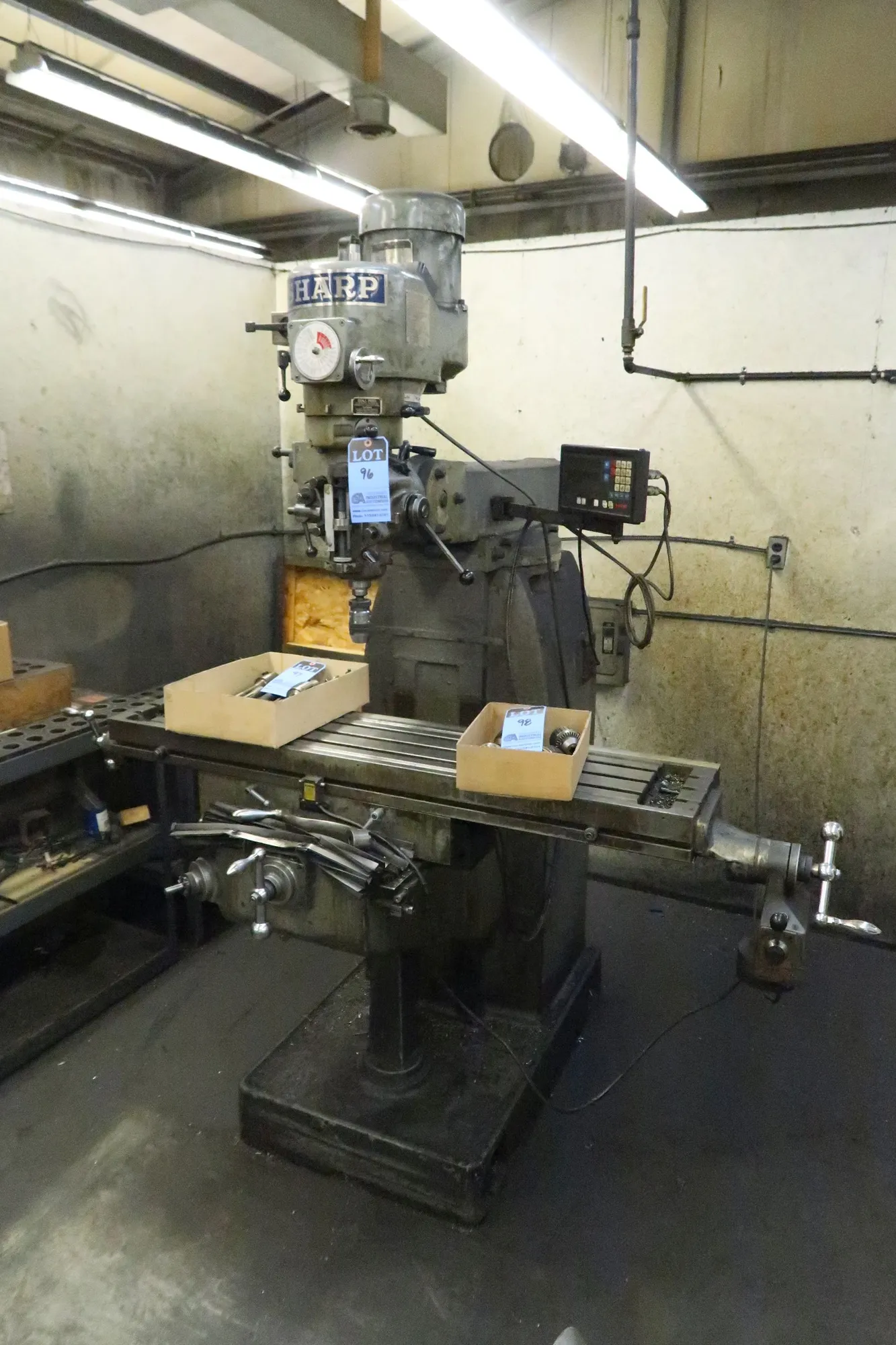

3 HP SHARP VERTICAL TURRET MILL
Serial No 70801136,
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 32.5" | 825.5 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | #R8 | #R8 |
| Dimensions | 5'1" x 5'3" | 5'1" x 5'3" |
| Weight | 3000 | 3000 |
3 HP SHARP VERTICAL TURRET MILL
Serial No 70801136,
EQUIPPED WITH:
Newall Topaz Digital Readouts
3 HP Spindle Motor (Infinitely Variable Speeds)
Power Quill Feed
Power Feed to Table (Option)
Hard Chromed Ways & Gibs
One-Shot Lubrication System
Some Tooling
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10" x 50"
Table Longitudinal Travel (X-Axis) 32.5"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 17.37"
Quill Travel (Z-Axis) 5"
Ram Travel 17.5"
Spindle to Column, Range 7.75" to 25.75"
Spindle to Table, Minimum 0"
Spindle to Table, Maximum 17.37"
Spindle Taper #R8
Head Swivel 360-DEGREES
Head Tilt, Front & Back +/- 45-DEGREES
Head Tilt, Left & Right +/-- 90-DEGREES
Spindle Speeds Range, Variable 60 to 4500 RPM
(3) Vertical Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower/RPM 3 HP/1730 RPM
Electrical System 220-440/3/60
Floor Space Required, W x D 5'1" x 5'3"
Overall Height 7'9"
Weight, Approximately 3000 LBS
F.O.B. OUR WAREHOUSE
