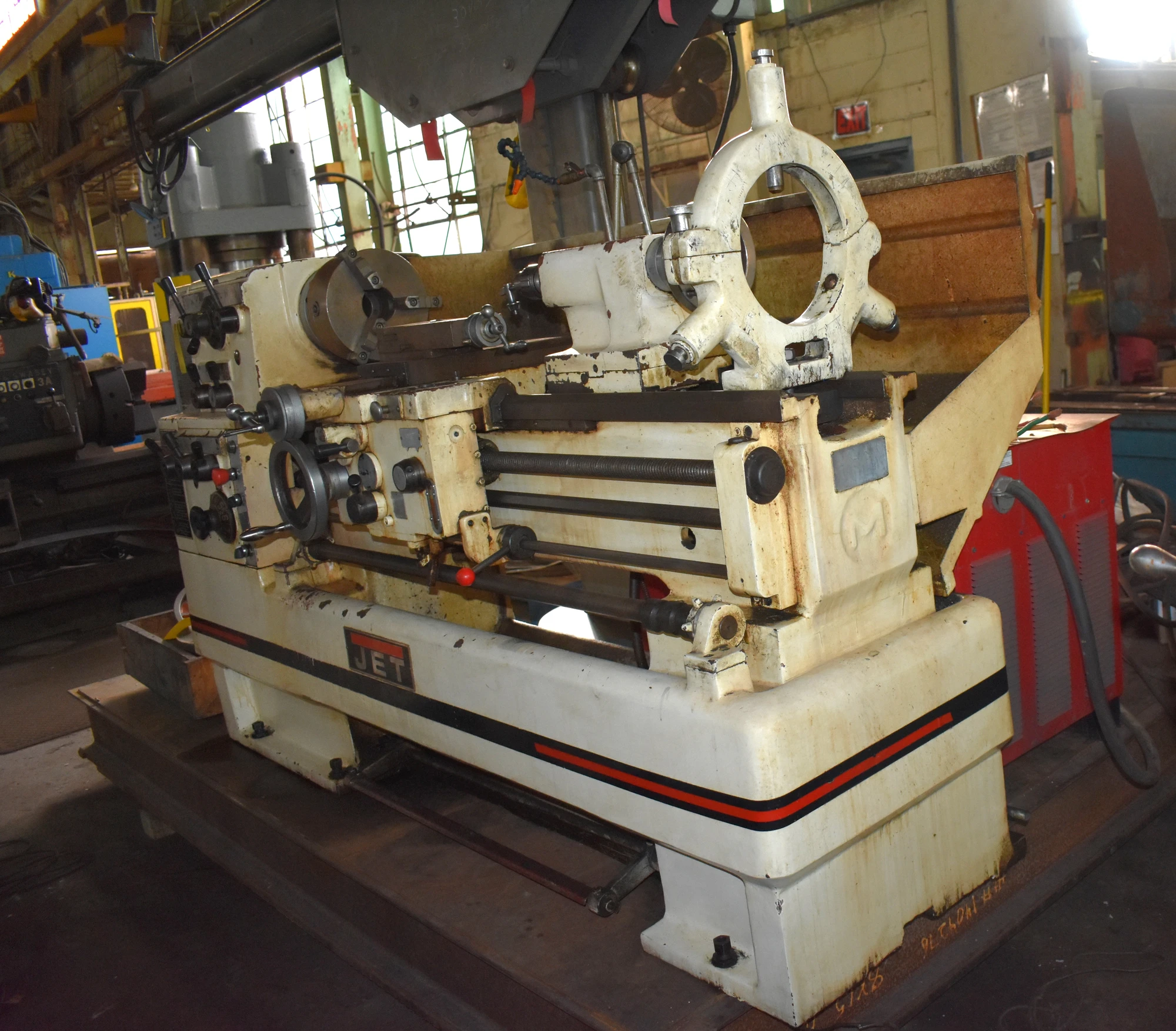

16/23.6" x 40" JET GEARED HEAD PRECISION
GAP-TYPE ENGINE LATHE
Serial No 10239709044, Model GH1640R,
| Swing | 16" | 406.4 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 2" | 50.8 mm |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 9.625" | 244.47 mm |
16/23.6" x 40" JET GEARED HEAD PRECISION
GAP-TYPE ENGINE LATHE
Serial No 10239709044, Model GH1640R,
EQUIPPED WITH:
12" 4-Jaw Chuck - 16" Faceplate
10" 3-Jaw Chuck
Inch/Metric Threading - Hard Ways
Threading Dial
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2"
Swing Over Bed Ways, Rated 16"
Swing Thru Gap 23.625"
Swing Over Carriage 9.625"
Distance Between Centers 40"
Tailstock, Spindle Taper #4 MT
Tailstock, Spindle Travel 5"
(12) Spindle Speeds, Range 45 to 1800 RPM
F.O.B. OUR WAREHOUSE
