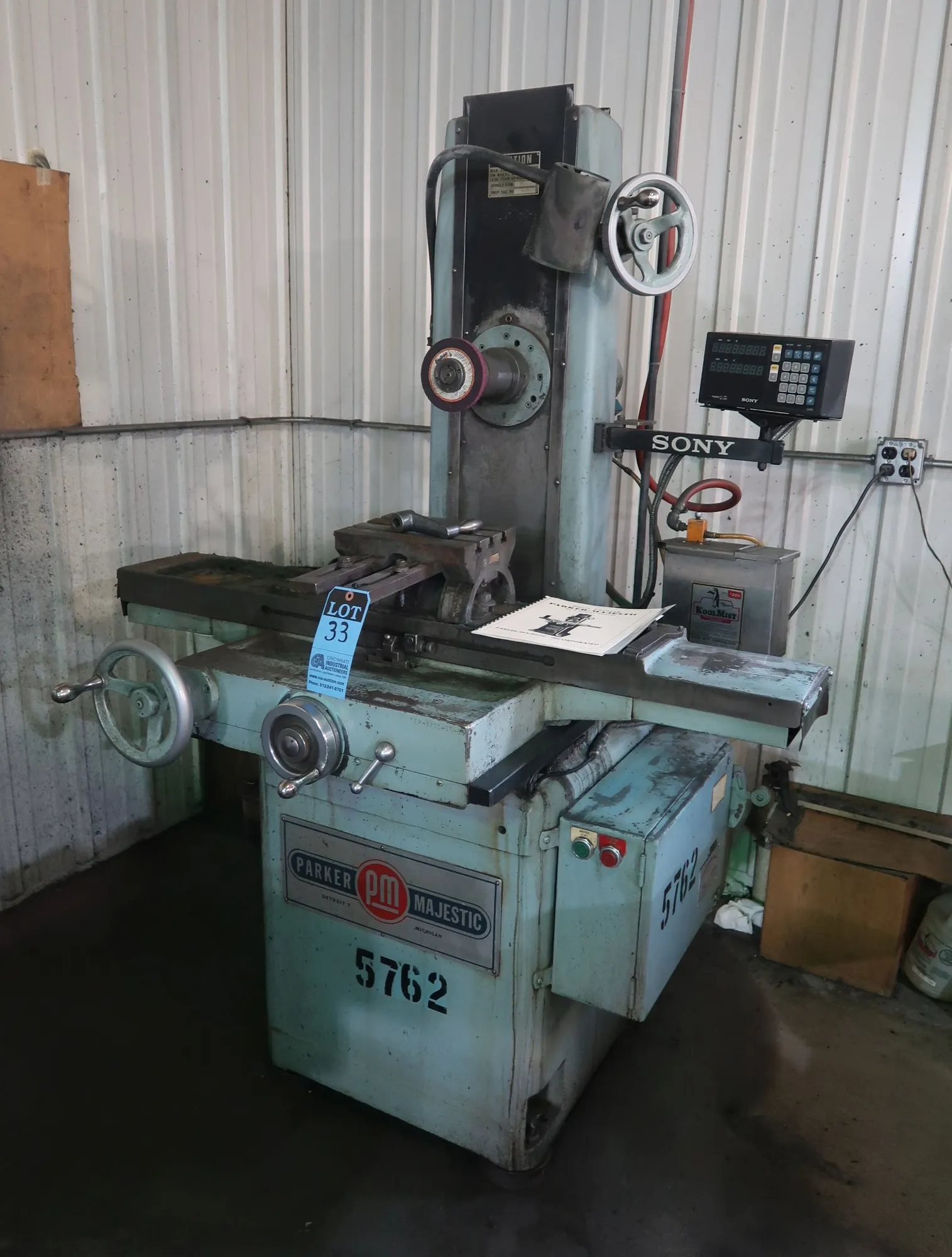

6" x 18" PARKER-MAJESTIC HAND-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 1713-SC-65, Model 2,
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Power | 1 hp | 0.7 kW |
| Grinding Wheel Width | 0.625" | 15.875 mm |
| Grinding Wheel Dia. | 1.25" | 31.75 mm |
| Weight | 1600 | 1600 |
6" x 18" PARKER-MAJESTIC HAND-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 1713-SC-65, Model 2,
EQUIPPED WITH:
Sony "LH51" 2-Axis Digital Readouts
Adjustable Swiveling Table-Mounted Fixturing
Vertical Handwheel On Column
Vernier Reading in Tenths On Vertical Travel, .050"
Spindle Elevation Per Revolution
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 6" x 18"
Grinding Width Capacity, Maximum 6"
Grinding Length Capacity, Maximum 18"
Table Longitudinal, Manual 18"
Spindle-Center to Table, Maximum 20"
Grinding Wheel Width, Standard 0.625"
Grinding Wheel Hole Diameter 1.25"
Grinding Wheel Spindle Motor 1 HP/3600 RPM
Electrical System 220-440/3/60
Weight, Approximately 1600 LBS
F.O.B. OUR WAREHOUSE
