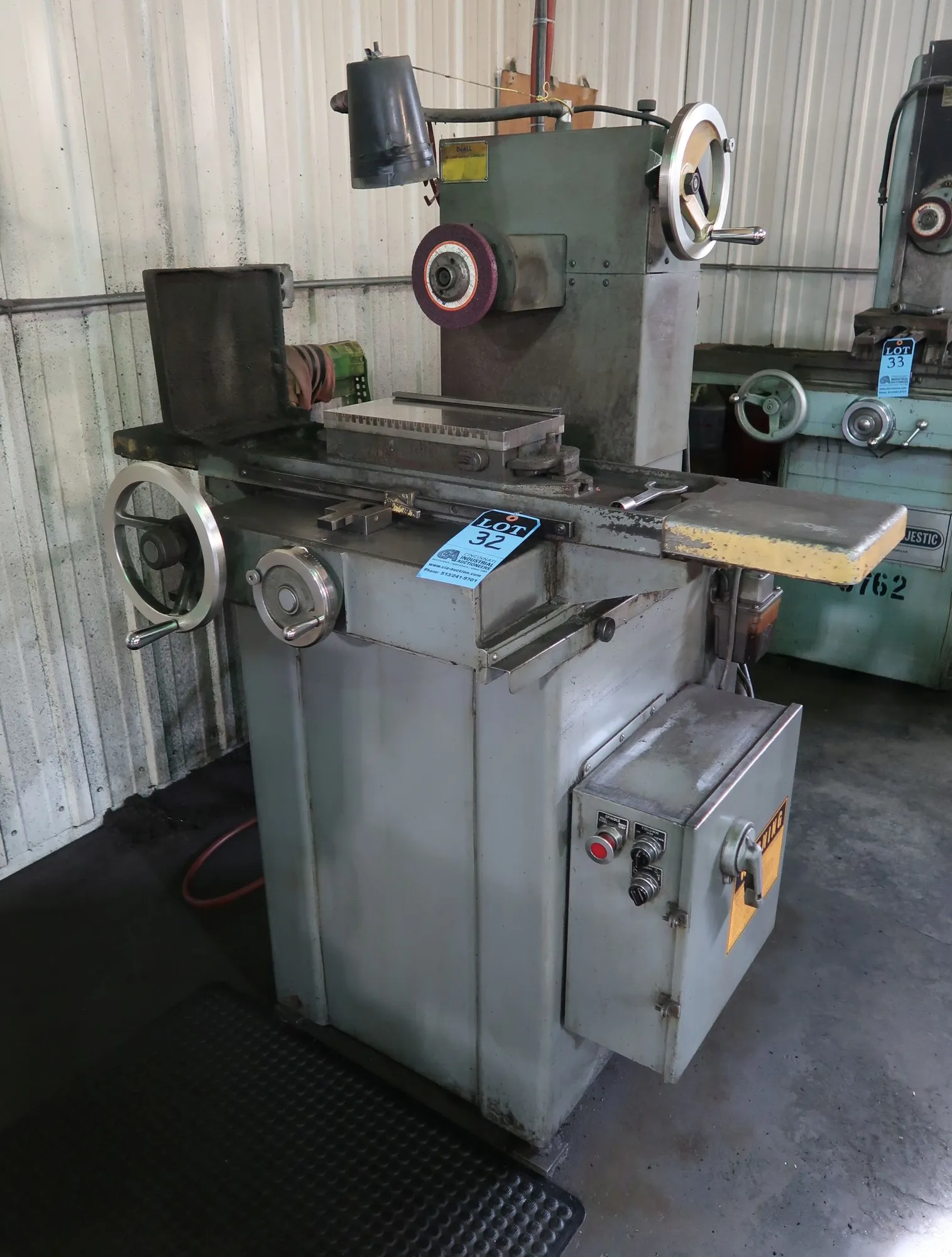

6" x 12" DOALL HAND-FEED HORIZONTAL-SPINDLE
SURFACE GRINDER
Serial No 355-81757, Model VS612,
| Table-W | 6" | 152.4 mm |
| Table-L | 12" | 304.8 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Power | 1 hp | 0.7 kW |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Dimensions | 62 x 44 | 62 x 44 |
| Weight | 1500 | 1500 |
6" x 12" DOALL HAND-FEED HORIZONTAL-SPINDLE
SURFACE GRINDER
Serial No 355-81757, Model VS612,
EQUIPPED WITH:
6" x 12" Permanent-Magnetic Chuck
Automatic Lubrication System
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 6" x 12"
Grinding Width Capacity, Maximum 6"
Grinding Length Capacity, Maximum 12"
Height Under 8" Grinding Wheel 12"
Table Longitudinal, Manual 14"
Table Cross Travel 7"
Grinding Wheel Diameter, Standard 8"
Grinding Wheel Width, Standard 0.5"
Grinding Wheel Hole Diameter 1.25"
Grinding Spindle Speed 3450 RPM
Grinding Wheel Spindle Motor 1 HP
Electrical System 220-440/3/60
Overall Dimensions, W x D 62" x 44"
Overall Height 66"
Weight, Approximately 1500 LBS
F.O.B. OUR WAREHOUSE
