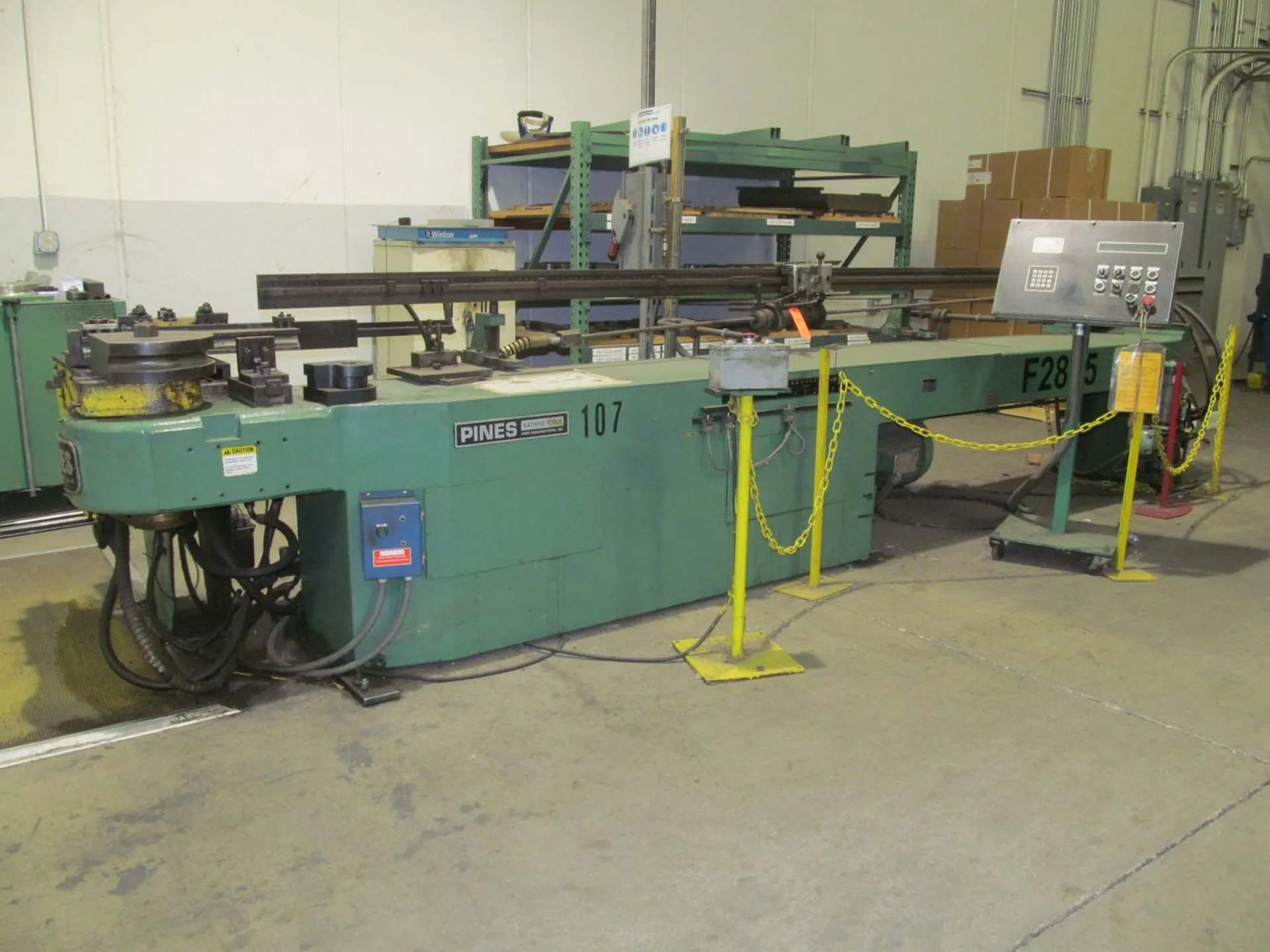

USED PINES 1-1/2

2-1/2" PINES "1-1/4" HORIZONTAL EXTENDED-BASE

HYDRAULIC ROTARY TUBE/PIPE BENDER

Serial No 11205-97053, Model 1-1/4, Series 112

2-1/2" PINES "1-1/4" HORIZONTAL EXTENDED-BASE
HYDRAULIC ROTARY TUBE/PIPE BENDER
Serial No 11205-97053, Model 1-1/4, Series 112

EQUIPPED WITH:
Pines Digital Dial-A-Bend Control w/Remote Stand
Automatic Mandrel Extractor (Hydraulic)
6' Extended Base
M21 Manual Carriage (Option)
Adjustable Wiper Die Holder
Fan Cooled Heat Exchanger
Automatic Wiper Die And Mandrel Lubricator

CATALOG SPECIFICATIONS:

Pipe/Tube Diameter x Wall Capacities:
Round Tubing Mild Steel Y.P. to 40000 PSI .......... 2-1/2" x .065"
Schedule 80 Steel Pipe .......... 1-1/4"
Non-Ferrous Tube Y.P. to 12000 PSI .......... 3" x 0.12"
Non-Ferrous Tube Y.P. to 25000 PSI .......... 3" x .065"
Stainless Steel Tube Y.P. to 60000 .......... 1.75" x .065"
Steel Bar, Round Y.P. 40000 PSI .......... 1.375"
Steel Bar, Square Y.P. 4000 PSI .......... 1.25"
Angle Iron Y.P. to 40000 PSI .......... 2.5"x2.5"x0.19"
Tube Length Over Mander, Maximum 13'5"
Tube Bending Radius, Maximum .......... 12"
Tube Bending Angle, Maximum .......... 180-DEGREES
Bending Arm Speed, Average Maximum .......... 13.5 RPM
Operating Pressure, Standard .......... 2000 PSI
Main Motor, Horsepower .......... 10 HP
Overall Dimensions, L x D .......... 13'4" x 4'
Overall Height .......... 4'
Weight, Approximately .......... 5000 LBS

NOTE: This Is A Very Well Equipped Machine. The
M21 Manual Carriage Manually Controls The
Distance Between Bends And The Plane Of
Bend For Various Part Configurations. The
Carriage Position And Rotation Is Controlled
Through Manually Adjusted Gauge Stops. Factory
Advises This Is A $35,000.00 Option.
F.O.B. OUR WAREHOUSE
Schedule 80 Steel Pipe: 1-1/4"
Tube Bending Radius, Maximum: 12"
Tube Bending Angle, Maximum: 180-DEGREES
Operating Pressure, Standard: 2000 PSI
Main Motor, Horsepower: 10 HP
Overall Height: 4'
Weight, Approximately: 5000 LBS
