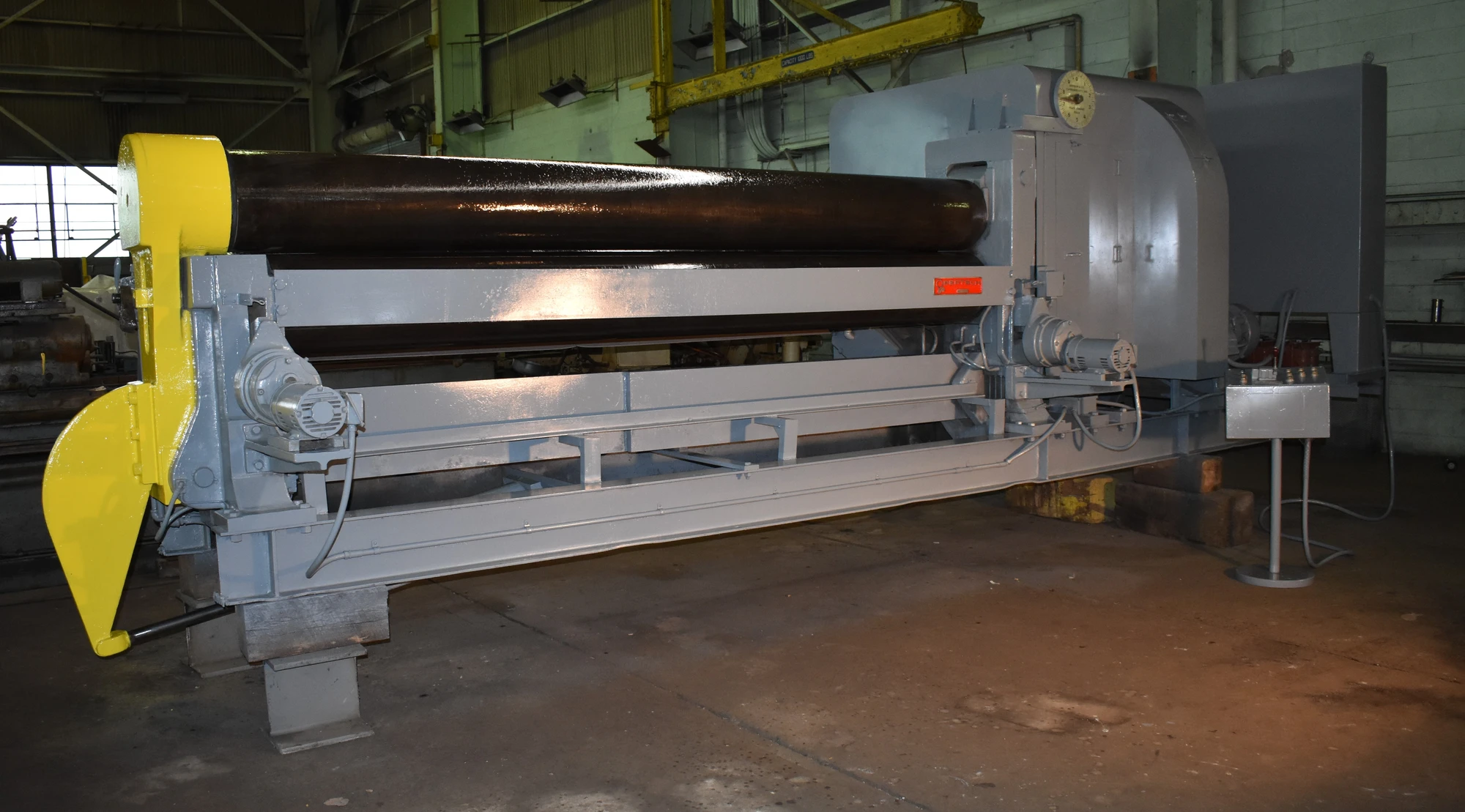

12' x 19/32" BERTSCH HEAVY-DUTY INITIAL-TYPE
PLATE BENDING ROLL
Serial No M-10320, Model 11
| Length of Rolls | 12' | 3.7 m |
| (Init/Dbl Pinch or Pyramid) | INIT PINCH | INIT PINCH |
| Max Thickness | 0.5938" | 15.081 mm |
| # Rolls | 3 | 3 |
| Hyd/Mech | Hyd | Hyd |
| Power Rear Roll (Yes/No) | Yes | Yes |
| Power | 20 hp | 14.9 kW |
| Roll Diameter | 15" | 381 mm |
| Weight | 46700 | 46700 |
12' x 19/32" BERTSCH HEAVY-DUTY INITIAL-TYPE
PLATE BENDING ROLL
Serial No M-10320, Model 11
EQUIPPED WITH:
Air Drop End
10 HP Rear Roll Adjusting Motor
Power Adjustment To Lower Front Pinch Roll
(2) 3/4 HP Front Roll Adjusting Motors
Rear Roll Dial Indicator
Farval Central Lubrication System
SCR Control System w/Vari-Speed Drive
CATALOG SPECIFICATIONS:
Rolling Length, Capacity .......... 12'
Rolling Thickness, Boiler Duty .......... 19/32"
Rolling Thickness, Pipe Duty .......... 29/64"
Top-Roll Diameter .......... 15"
Bottom-Roll Diameter .......... 15"
Main Drive Motor, Horsepower/RPM 20 HP/1200 RPM
Rear Roll Adjust Motor Horsepower/RPM 10 HP/1200 RPM
(2) Front Roll Adjust Motors Horsepower/RPM 3/4 HP EACH
Weight Approximately 46700 LBS
F.O.B. OUR WAREHOUSE
Rolling Length, Capacity: 12'
Rolling Thickness, Boiler Duty: 19/32"
Rolling Thickness, Pipe Duty: 29/64"
Top-Roll Diameter: 15"
Bottom-Roll Diameter: 15"
