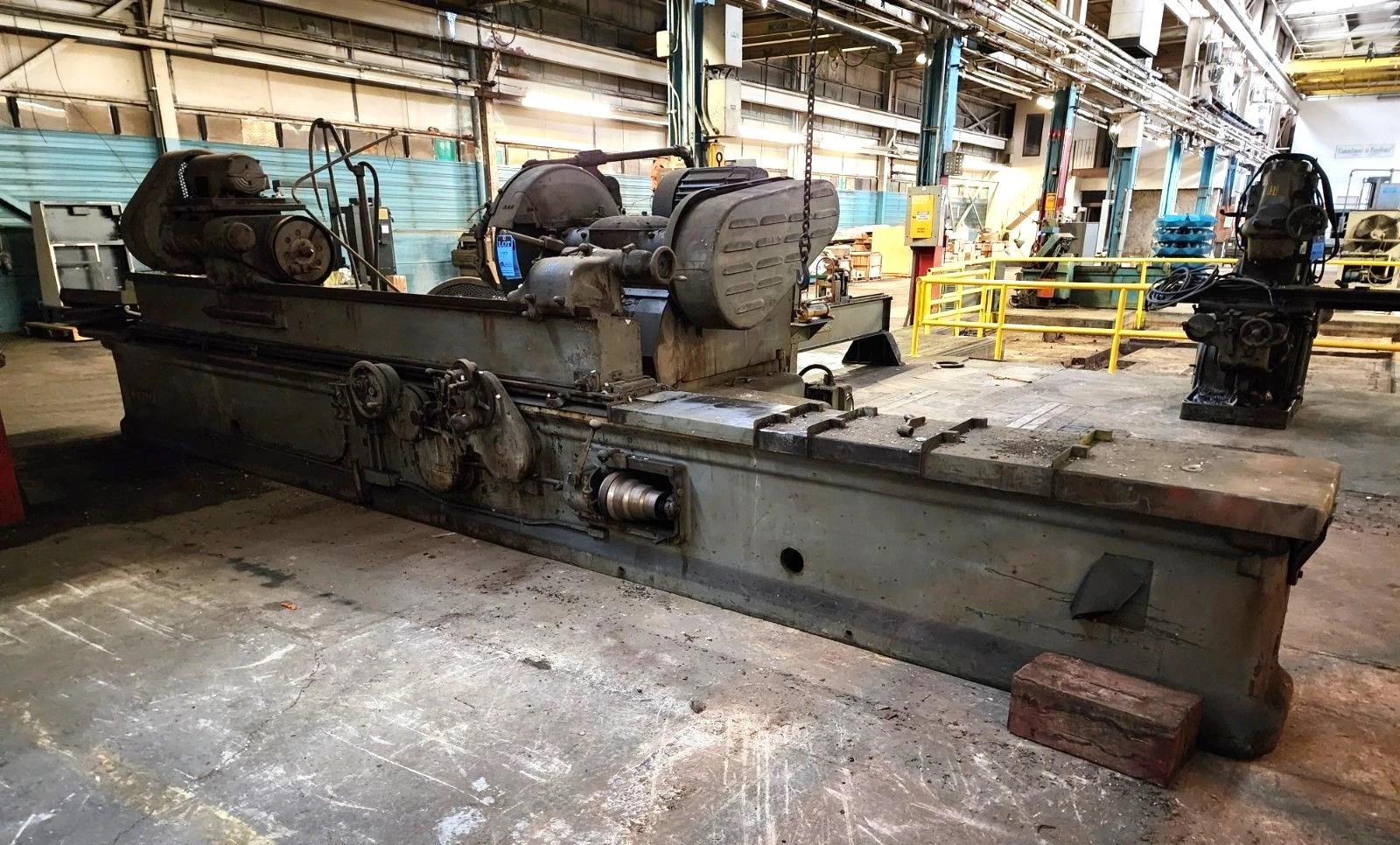

USED NORTON C

16/24" x 120" NORTON PLAIN GAP-TYPE

CYLINDRICAL GRINDER

Serial No 2589, Model C, Ltr C,

16/24" x 120" NORTON PLAIN GAP-TYPE
CYLINDRICAL GRINDER
Serial No 2589, Model C, Ltr C,

EQUIPPED WITH:
Removeable Gap
Mechanical Longitudinal Table Feed
Semi-Automatic Pick Type In-Feed Attachment
Wheel Dresser (Tailstock Mounted)
3 HP Variable-Speed Workhead
Tailstock (Lever-Type)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum .......... 16.5"
Swing Thru Gap, Maximum .......... 24"
Grinding Diameter Over Table, Maximum .......... 16"
Distance Between Centers, Nominal .......... 120"
Gap Length .......... 25"
Grinding Wheel Diameter, Standard .......... 30"
Grinding Wheel Width, Standard .......... 3"
Grinding Wheel Hole Diameter .......... 12"
Headstock Spindle Diameter .......... 4"
Headstock Center Diameter .......... 2"
Tailstock Spindle Diameter .......... 3.125"
Tailstock Center Diameter .......... 2"
Wheelhead Travel, Maximum .......... 13.25"
Table Swivel Taper .......... 1.437" TPF
Table Longitudinal Feeds, Range .......... 6 to 92 IPM
Grinding Wheelhead Spindle Motor .......... 20 HP
Workhead Motor, Horsepower .......... 5 HP DC
Table Feed Motor, Horsepower .......... 3 HP
Electrical System .......... 220-440/3/60
Floor Space Required, L x D .......... 26' x 7'
Weight, Approximately .......... 30000 LBS
F.O.B. OUR WAREHOUSE
Swing Over Table, Maximum: 16.5"
Swing Thru Gap, Maximum: 24"
Distance Between Centers, Nominal: 120"
Gap Length: 25"
Grinding Wheel Diameter, Standard: 30"
Grinding Wheel Width, Standard: 3"
Grinding Wheel Hole Diameter: 12"
Headstock Spindle Diameter: 4"
Headstock Center Diameter: 2"
Tailstock Spindle Diameter: 3.125"
Tailstock Center Diameter: 2"
Wheelhead Travel, Maximum: 13.25"
Table Swivel Taper: 1.437" TPF
Table Longitudinal Feeds, Range: 6 to 92 IPM
Grinding Wheelhead Spindle Motor: 20 HP
Workhead Motor, Horsepower: 5 HP DC
Table Feed Motor, Horsepower: 3 HP
Electrical System: 220-440/3/60
Weight, Approximately: 30000 LBS
