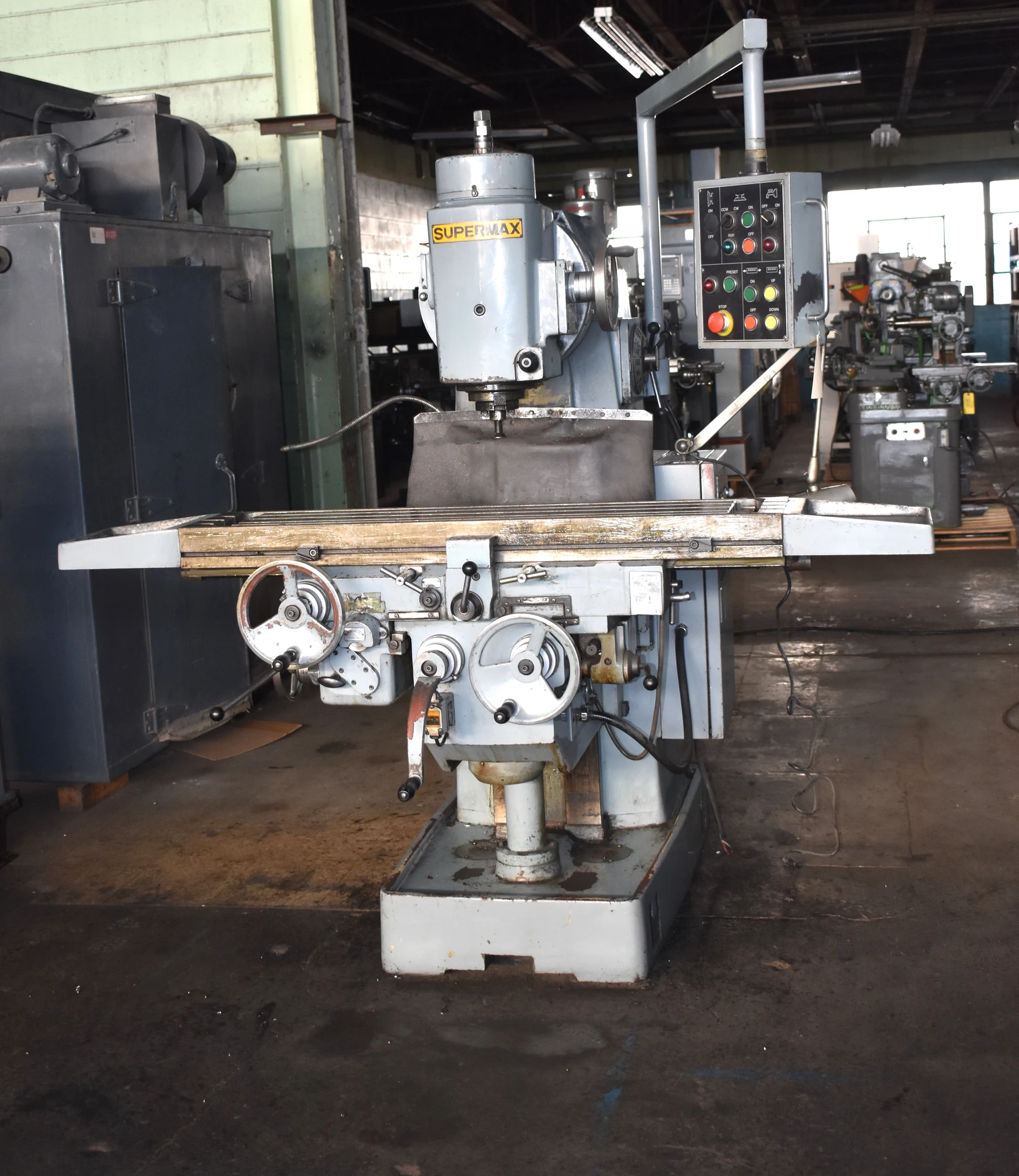

#YCM-2V SUPERMAX HEAVY-DUTY VERTICAL MILL
Serial No 002842, Model YCM-2V
| Table-W | 11" | 279.4 mm |
| Table-L | 52" | 1,320.8 mm |
| Travel-Long | 39.375" | 1,000.1 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 1,300 RPM | 1,300 RPM |
| Taper | #50 | #50 |
| Weight | 4840 | 4840 |
#YCM-2V SUPERMAX HEAVY-DUTY VERTICAL MILL
Serial No 002842, Model YCM-2V
EQUIPPED WITH:
Pendant Control
5 Horsepower
Power Longitudinal & Cross Table Feed
Backlash Compensation
Hardened & Ground Square Ways
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 11" x 52"
Table Longitudinal Travel (X-Axis) 39.375"
Saddle Cross Travel (Y-Axis) 12"
Knee Vertical Travel (Z-Axis) 17.75"
Spindle Inclined Angle, R & L 45-DEGREES (EACH)
Quill Travel, Manual 3.5"
Quill Diameter 6.25"
Table Load Capacity, Power 1650 LBS
Table Load Capacity, Manual 2200 LBS
Distance Spindle To Table 17.75"
Spindle Center To Column Surface 12.5"
(9) Spindle Speeds, Range 85 To 1300 RPM
(12) Longitudinal & Cross Feeds, Range .5 to 23.75 IPM
Vertical Rapid Feed 31.5 IPM
Spindle Motor, Horsepower 5 HP
Longitudinal & Cross Feed Motor 2 HP
Table Vertical Rapid Motor 1 HP
Weight, Approximately 4840 LBS
F.O.B. OUR WAREHOUSE
