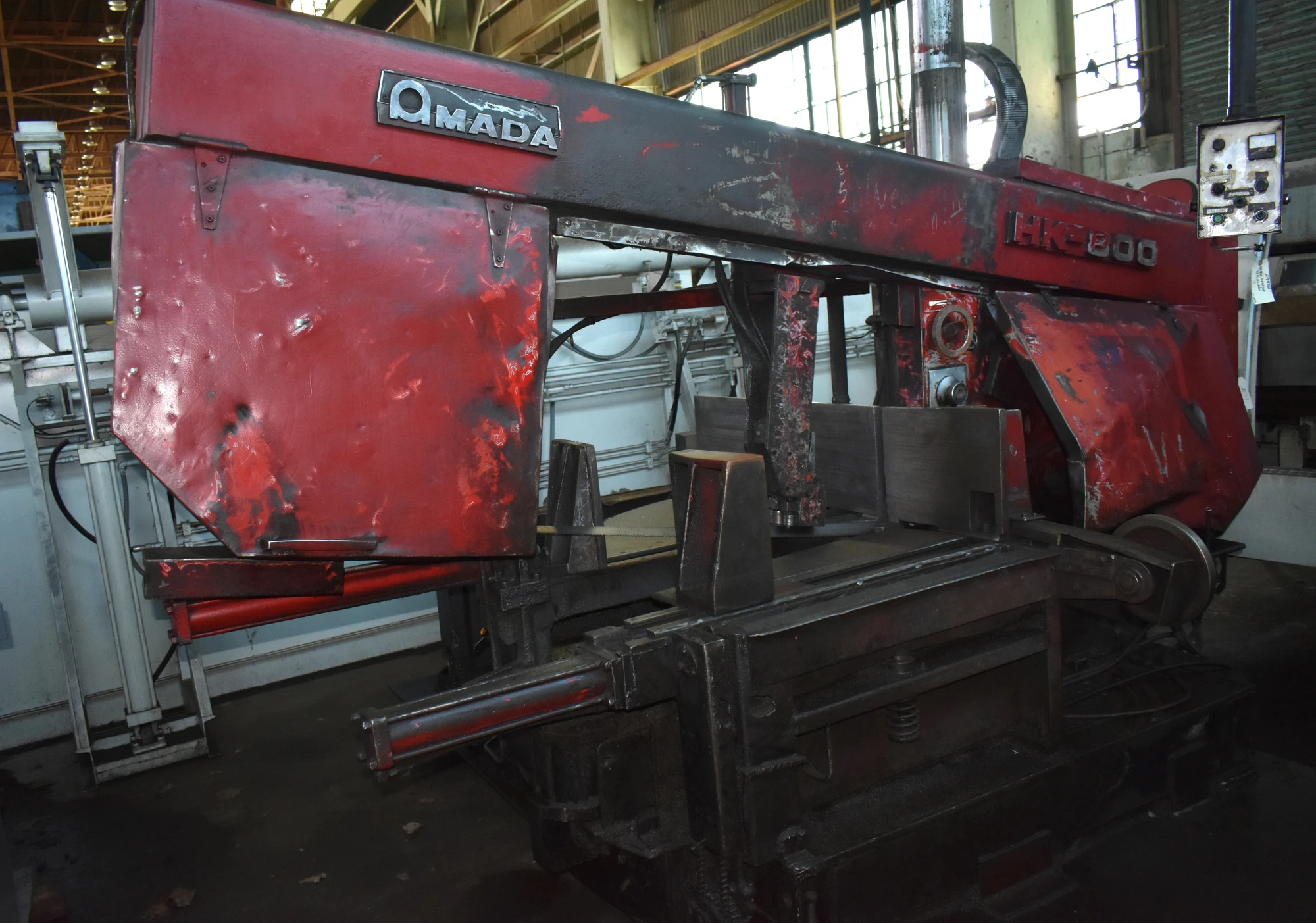

32" X 23" AMADA "HK-800" SEMI-AUTOMATIC
DUAL-COLUMN MITERING HORIZONTAL BAND SAW
Serial No 80010001, Model HK-800
| Rect-Cap (H) | 31.8" | 807.72 mm |
| Rect-Cap (W) | 19.6" | 497.84 mm |
| Rounds-Cap | 23.6" | 599.44 mm |
| Square-Cap | 21.6" | 548.64 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | '' | '' |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.055" | 1.397 mm |
| Blade Length | 262" | 6,654.8 mm |
| Dimensions | 12 x 7 | 12 x 7 |
| Weight | 7950 | 7950 |
32" X 23" AMADA "HK-800" SEMI-AUTOMATIC
DUAL-COLUMN MITERING HORIZONTAL BAND SAW
Serial No 80010001, Model HK-800
EQUIPPED WITH:
Powered Mitering Base - Double Column Horizontal Head
Hydraulically Raised & Controlled Lowering Head
CATALOG SPECIFICATIONS:
Cutting Capacity Rectangular, 90-DEGREES 31.8" x 19.6"
Cutting Capacity Rounds, 90-DEGREES 23.6"
Cutting Capacity Squares, 90-DEGREES 21.6" x 21.6"
Cutting Capacity Rectangular, 5-DEGREES 29.5" x 19.6"
Cutting Capacity Rectangular, 15-DEGREES 28.3" x 19.6"
Cutting Capacity Rectangular, 45-DEGREES 17.3" x 19.6"
Table Load Weight, Maximum 6600 LBS
Swivel Angle Rear, Maximum 45-DEGREES
Swivel Angle Front, Maximum 5-DEGREES
Table Height 27.6"
Blade Length 262"
Blade Width 1.5"
Blade Thickness .055"
Blade Speeds, Range 98 to 262 FPM
Blade Motor, Horsepower 7.5 HP
Hydraulic Pump Motor, Horsepower 2 HP
Overall Dimensions, L x W 12' x 7'
Overall Height 8'
Weight, Approximately 7950 LBS
F.O.B. OUR WAREHOUSE
