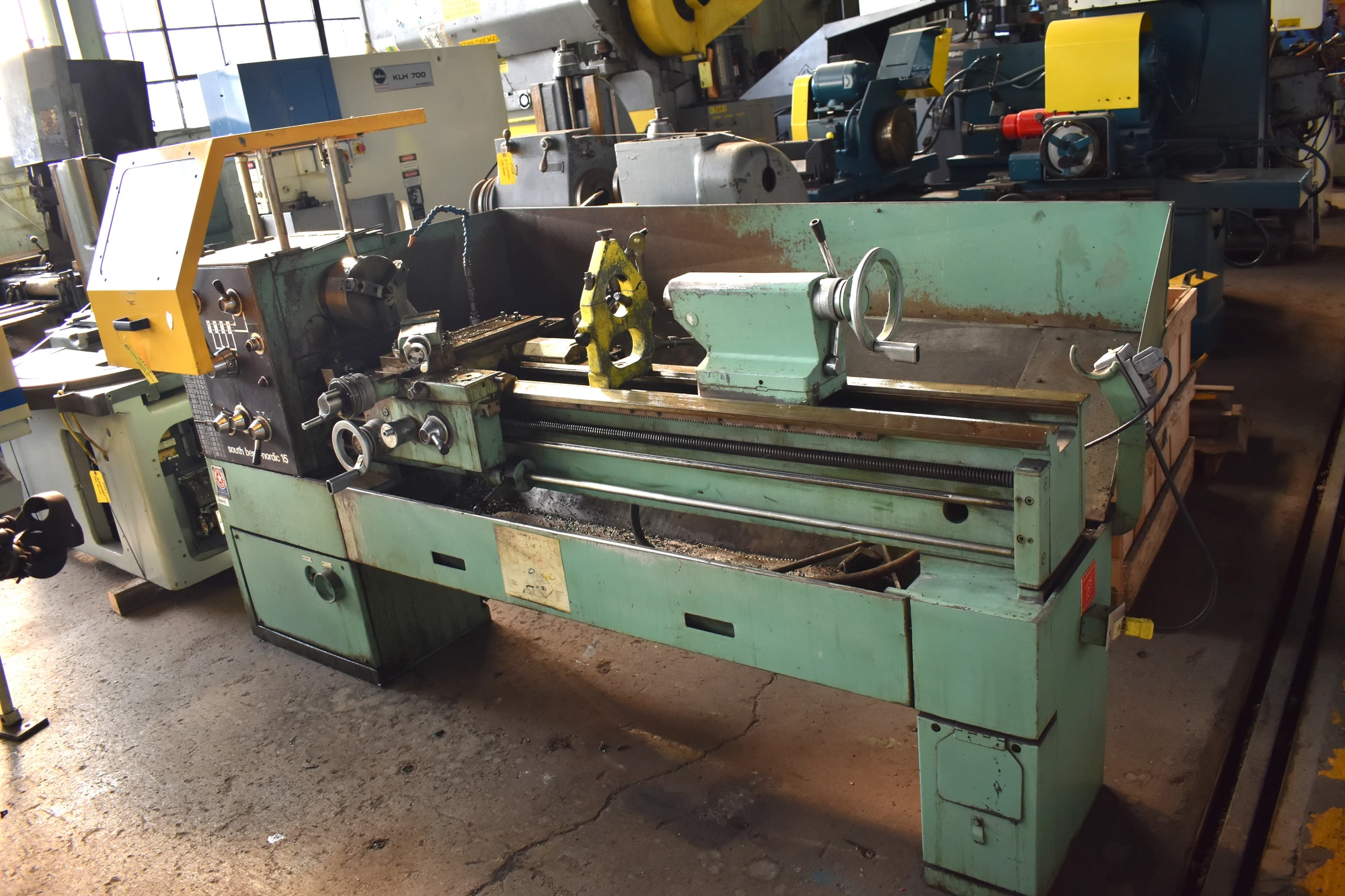

USED SOUTH BEND NORDIC 15

15" X 56" SOUTH-BEND "NORDIC 15" GEARED HEAD

ENGINE LATHE

Serial No. DN15770731N67, Model CL150E

Series "Nordic 15"

15" X 56" SOUTH-BEND "NORDIC 15" GEARED HEAD
ENGINE LATHE
Serial No. DN15770731N67, Model CL150E
Series "Nordic 15"

EQUIPPED WITH:
Taper Attachment
8" 3-Jaw Chuck w/Jaws - Steady Rest
Geared Head w/Hardened & Ground Gears
Hardened & Ground Bed Ways
#D1-6" Cam-Lock Spindle Nose
Threading (Inch-Metric Full-Length Lead Screw)
Full Length Coolant-Chip Pan

CATALOG SPECIFICATIONS:
Swing Over Bed Ways, Rated .......... 15.25"
Swing Over Saddle Wings .......... 15"
Swing Over Cross-Slide .......... 8-3/4"
Distance Between Centers .......... 56"
Hole Thru Spindle .......... 2-1/32"
Cross-Slide Cross Feed Travel .......... 9-3/8"
Tool-Slide Travel .......... 4-3/4"
(16) Spindle Speeds, Range .......... 40 to 2000 RPM
(54) Longitudinal Carriage Feeds .......... .0025 to .152 IPR
(54) Cross-Slide Cross Feeds .......... .0012 to .076 IPR
(54) Thread Changes, U.S. Standard .......... 1-5/8 to 96 TPI
(41) Thread Changes, Metric Threads .......... .20 to 10mm
Motor, Horsepower .......... 7.5 HP
Weight, Approximately .......... 2350 LBS
F.O.B. OUR WAREHOUSE
Swing Over Saddle Wings: 15"
Swing Over Cross-Slide: 8-3/4"
Distance Between Centers: 56"
Hole Thru Spindle: 2-1/32"
Cross-Slide Cross Feed Travel: 9-3/8"
Tool-Slide Travel: 4-3/4"
(16) Spindle Speeds, Range: 40 to 2000 RPM
(54) Longitudinal Carriage Feeds: 0025 to .152 IPR
(54) Cross-Slide Cross Feeds: 0012 to .076 IPR
Motor, Horsepower: 7.5 HP
Weight, Approximately: 2350 LBS
