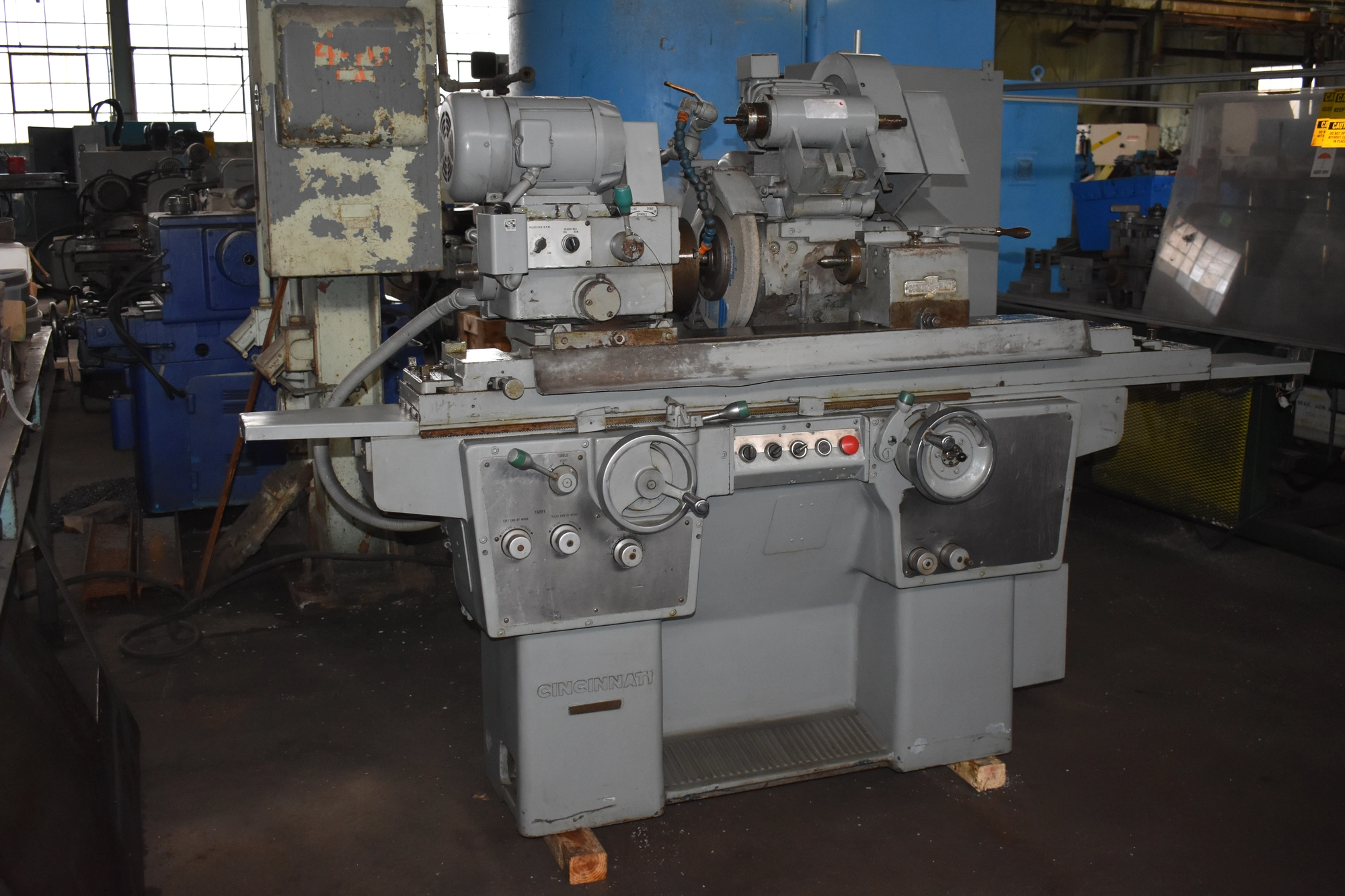

10" x 24" CINCINNATI-MILACRON "DH" UNIVERSAL
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No 35252B5T-43, Model DH
| Swing | 10.938" | 277.81 mm |
| Centers | 24" | 609.6 mm |
| Plain or Angle Head | 'Plain' | 'Plain' |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Wheel Power | 3 hp | 2.2 kW |
| Wheel Speed | 2,060 RPM | 2,060 RPM |
| Weight | 5700 | 5700 |
10" x 24" CINCINNATI-MILACRON "DH" UNIVERSAL
CYLINDRICAL GRINDER w/INTERNAL ATTACHMENT
Serial No 35252B5T-43, Model DH
EQUIPPED WITH:
Internal Grinding Spindle Attachment (Swing-Down)
Bijur Lubrication System
Pickfeed
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum .......... 10.9375"
Distance Between Centers, Nominal .......... 24"
Grinding Wheel Diameter, Standard .......... 14"
Grinding Wheel Width, Standard .......... 1"
Grinding Wheel Hole Diameter .......... 5"
Table Swivel Angle Toward Wheelhead .......... 8-DEGREES
Table Swivel Angle Away Wheelhead .......... 3-DEGREES
Lower Grinding Wheelhead Swivel Range .......... 110-DEGREES
Upper Grinding Wheelhead Swivel Range .......... 90-DEGREES
Workhead and Tailstock Center Tapers .......... #7 JARNO
Grinding Wheel Speed, Maximum .......... 2060 RPM
Workhead Spindle Speeds, Range .......... 50 to 600 RPM
Table Longitudinal Feeds, Range .......... 3 to 220 IPM
Grinding Wheelhead Spindle Motor .......... 3 HP/1740 RPM
Internal Grinding Attachment Motor .......... 2 HP
Workhead Motor, Horsepower .......... 1 HP
Weight, Approximately .......... 5700 LBS
F.O.B. OUR WAREHOUSE
Swing Over Table, Maximum: 10.9375"
Distance Between Centers, Nominal: 24"
Grinding Wheel Diameter, Standard: 14"
Grinding Wheel Width, Standard: 1"
Grinding Wheel Hole Diameter: 5"
Grinding Wheel Speed, Maximum: 2060 RPM
Workhead Spindle Speeds, Range: 50 to 600 RPM
Table Longitudinal Feeds, Range: 3 to 220 IPM
Grinding Wheelhead Spindle Motor: 3 HP/1740 RPM
Internal Grinding Attachment Motor: 2 HP
Workhead Motor, Horsepower: 1 HP
Weight, Approximately: 5700 LBS
