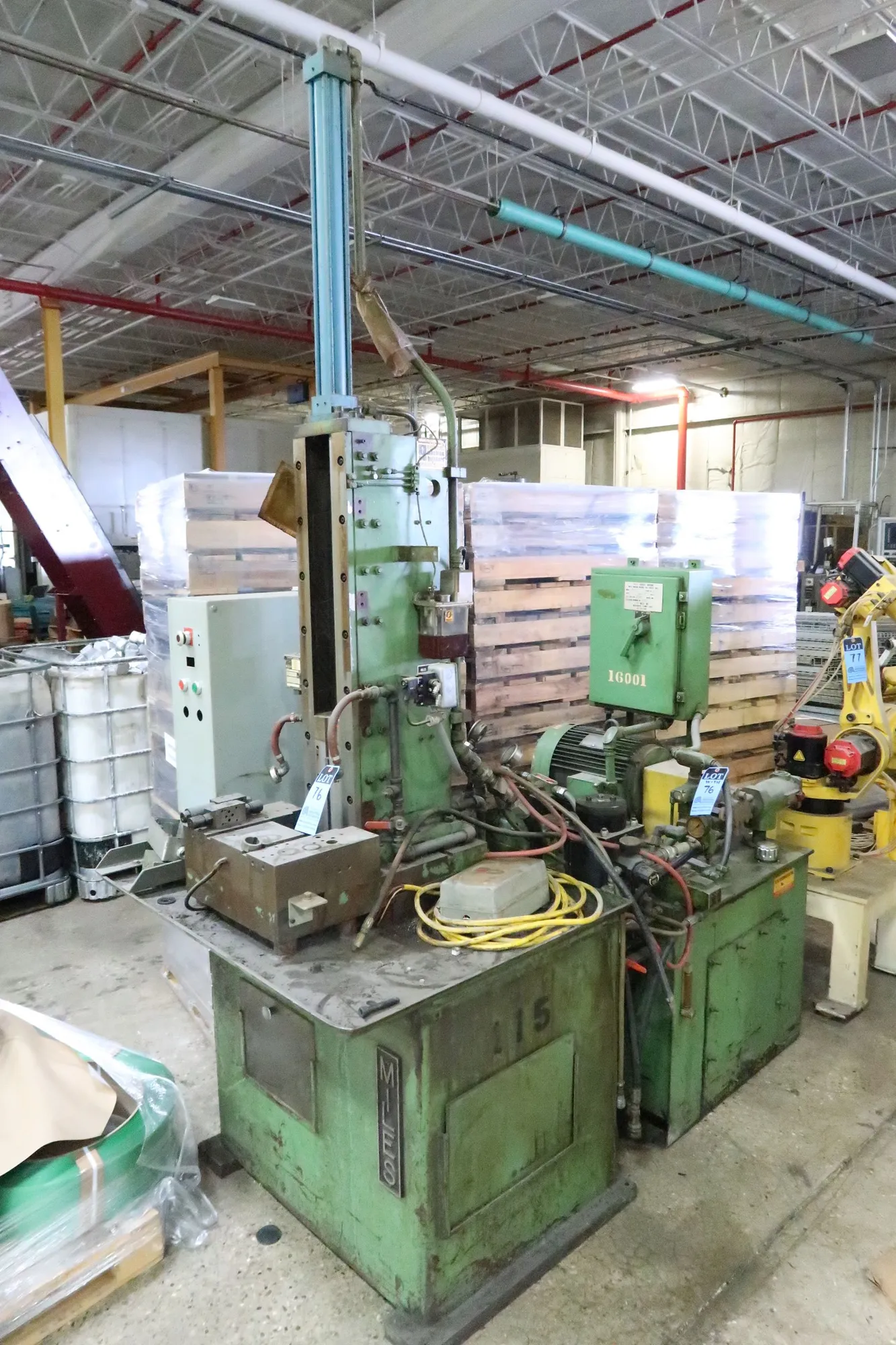

4 TON TY MILES HYDRAULIC VERTICAL BROACH
Serial No 6-04-07, Model MB8-24-120R
| Dimensions | 9', 14" x 20", 6.5" x 10.5", 2.5" | 9', 14" x 20", 6.5" x 10.5", 2.5" |
| Weight | 6200 | 6200 |
4 TON TY MILES HYDRAULIC VERTICAL BROACH
Serial No 6-04-07, Model MB8-24-120R
EQUIPPED WITH:
Adjustable Ram Speed Control
Automatic Lubrication System
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Tonnage Capacity @ 60 FPM 4 TON
Tonnage Capacity @ 120 FPM 2 TON
Stroke Length, Rated 24"
Stroke Length, Maximum 26"
Platen Area, D x W 14" x 20"
Opening In Platen, D x W 6.5" x 10.5"
Cylinder Size 2.5"
Broaching Speeds, Range to 120 FPM
Hydraulic Motor, Horsepower/RPM 15 HP/1750 RPM
Electrical System 230-460/3/60
Overall Height 9'
Weight, Approximately 6200 LBS
F.O.B. OUR WAREHOUSE
