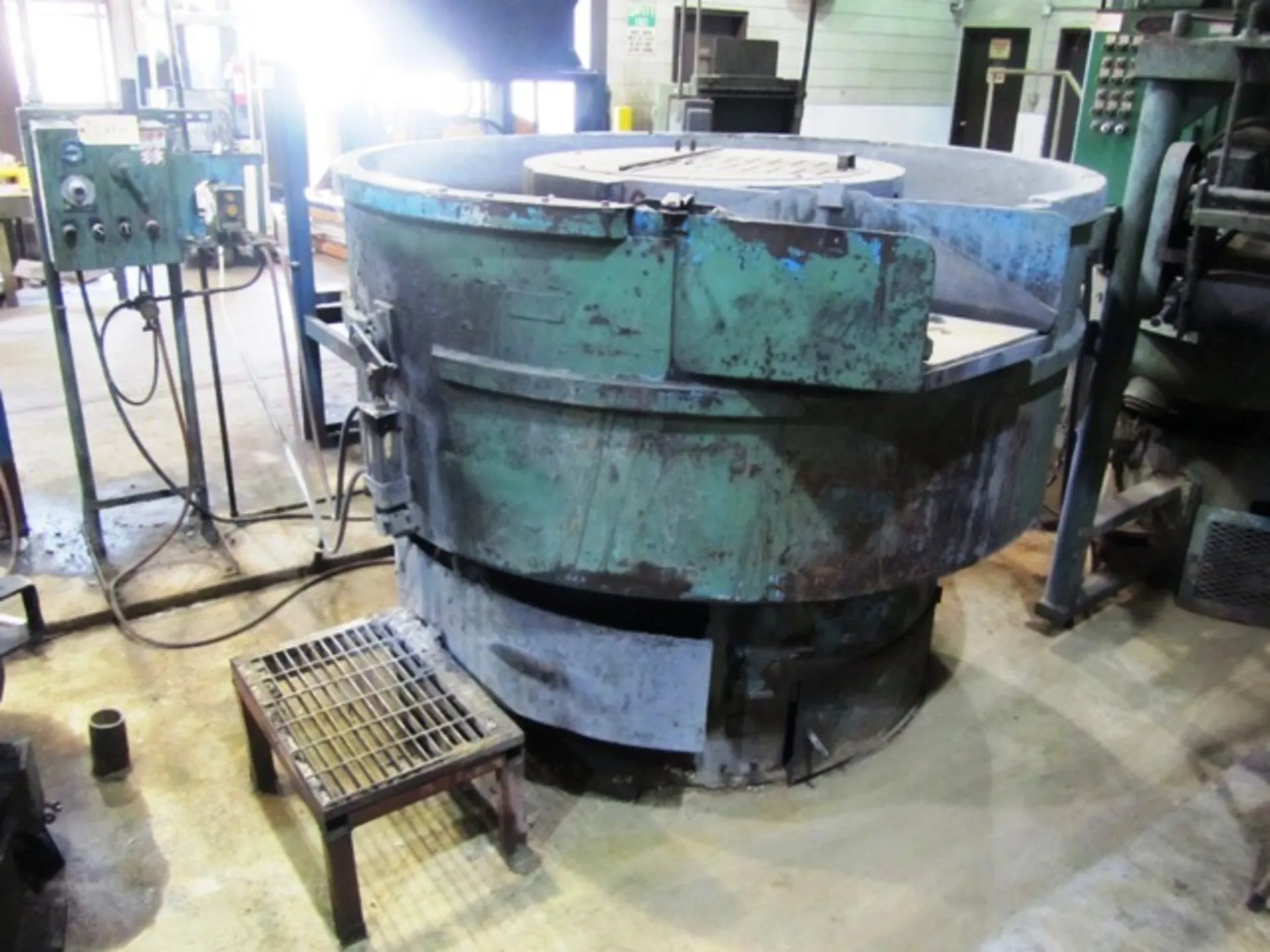

20 CU.FT. ROTO-FINISH "ST20BCPT "SPIRATRON"
VIBRATORY BURNISHING MACHINE
Model ST20BCPT, Series "Spiratron",
| Chamber-W | 17" | 431.8 mm |
| Chamber-D | 78" | 1,981.2 mm |
| Dimensions | 78" x 17" x 60" | 78" x 17" x 60" |
| Weight | 8000 | 8000 |
20 CU.FT. ROTO-FINISH "ST20BCPT "SPIRATRON"
VIBRATORY BURNISHING MACHINE
Model ST20BCPT, Series "Spiratron",
EQUIPPED WITH:
Pneumatic Gate
Polyurethane Chamber Lining
Electrical Control Panel w/Variable Speed & Timer
(3) 6" Diameter Drains
CATALOG SPECIFICATIONS:
Operating Capacity Cubic Feet, Maximum .......... 20 CU FT
Tub Dimensions, Diameter (Outside) .......... 78"
Process Channel Width .......... 17"
Lining Thickness .......... .750"
Main Motor, Horsepower .......... 10 HP
Electrical System .......... 230-460/3/60
Overall Height .......... 60"
Weight, Approximately .......... 8000 LBS
F.O.B. OUR WAREHOUSE
Tub Dimensions, Diameter (Outside): 78"
Process Channel Width: 17"
Lining Thickness: 750"
Main Motor, Horsepower: 10 HP
Electrical System: 230-460/3/60
Overall Height: 60"
Weight, Approximately: 8000 LBS
