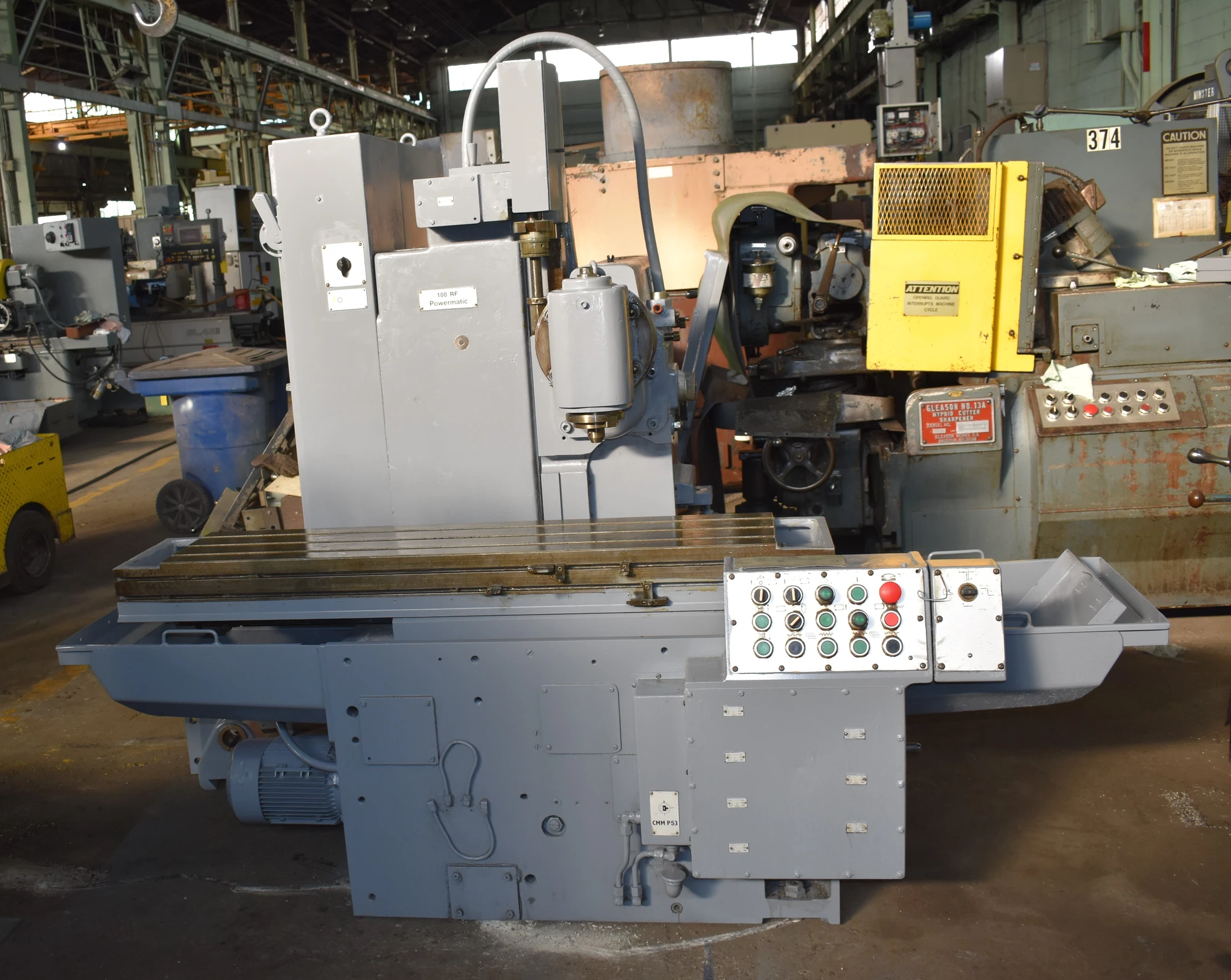

USED CINCINNATI MILACRON 107-122

107-122 CINCINNATI-MILACRON "POWERMATIC 100 RF"
HORIZONTAL-SPINDLE PRODUCTION MILL
W/VERTICAL HEAD ATTACHMENT
Serial No 11B11P1AHE-17, Series Powermatic 100 RF,
Model 107-122,

EQUIPPED WITH:
Vertical Head Attachment
Rise and Fall Head Travel
Outboard Arbor Support - Two Arbor Supports
Arbor - Some Change Gears
Bijur Automatic Lubrication System

CATALOG SPECIFICATIONS:
Table Dimensions (Overall) W x L .......... 12" x 54"
Table Working Surface, W x L .......... 12" x 54"
Table Longitudinal Travel (X-Axis) .......... 24"
Spindle-Head Vertical Travel (Y-Axis) .......... 11"
Quill Cross Adjustment (Z-Axis) .......... 3"
Spindle-Center to Table-Top, Minimum .......... 3.25"
Spindle-Center to Table-Top, Maximum .......... 14.25"
Quill Diameter .......... 6"
Spindle Nose Diameter .......... 5.06"
(16) Spindle Speeds, Range .......... 30 to 1200 RPM
Longitudinal Table Feeds, Range .......... 1 to 40 IPM
Vertical Spindle-Carrier Feeds .......... 1 to 40 IPM
Power Rapid Table Traverse .......... 300 IPM
Spindle Motor, Horsepower .......... 7.5 HP
Feed Drive Motor, Horsepower .......... 1.5 HP
Electrical System .......... 220-440/3/60
Floor Space Required, L x D .......... 7'7" x 5'6"
Overall Height .......... 6'
Weight, Approximately .......... 5700 LBS
F.O.B. OUR WAREHOUSE
Table Longitudinal Travel (X-Axis): 24"
Spindle-Head Vertical Travel (Y-Axis): 11"
Quill Cross Adjustment (Z-Axis): 3"
Spindle-Center to Table-Top, Minimum: 3.25"
Spindle-Center to Table-Top, Maximum: 14.25"
Quill Diameter: 6"
Spindle Nose Diameter: 5.06"
(16) Spindle Speeds, Range: 30 to 1200 RPM
Longitudinal Table Feeds, Range: 1 to 40 IPM
Vertical Spindle-Carrier Feeds: 1 to 40 IPM
Power Rapid Table Traverse: 300 IPM
Spindle Motor, Horsepower: 7.5 HP
Feed Drive Motor, Horsepower: 1.5 HP
Electrical System: 220-440/3/60
Overall Height: 6'
Weight, Approximately: 5700 LBS
