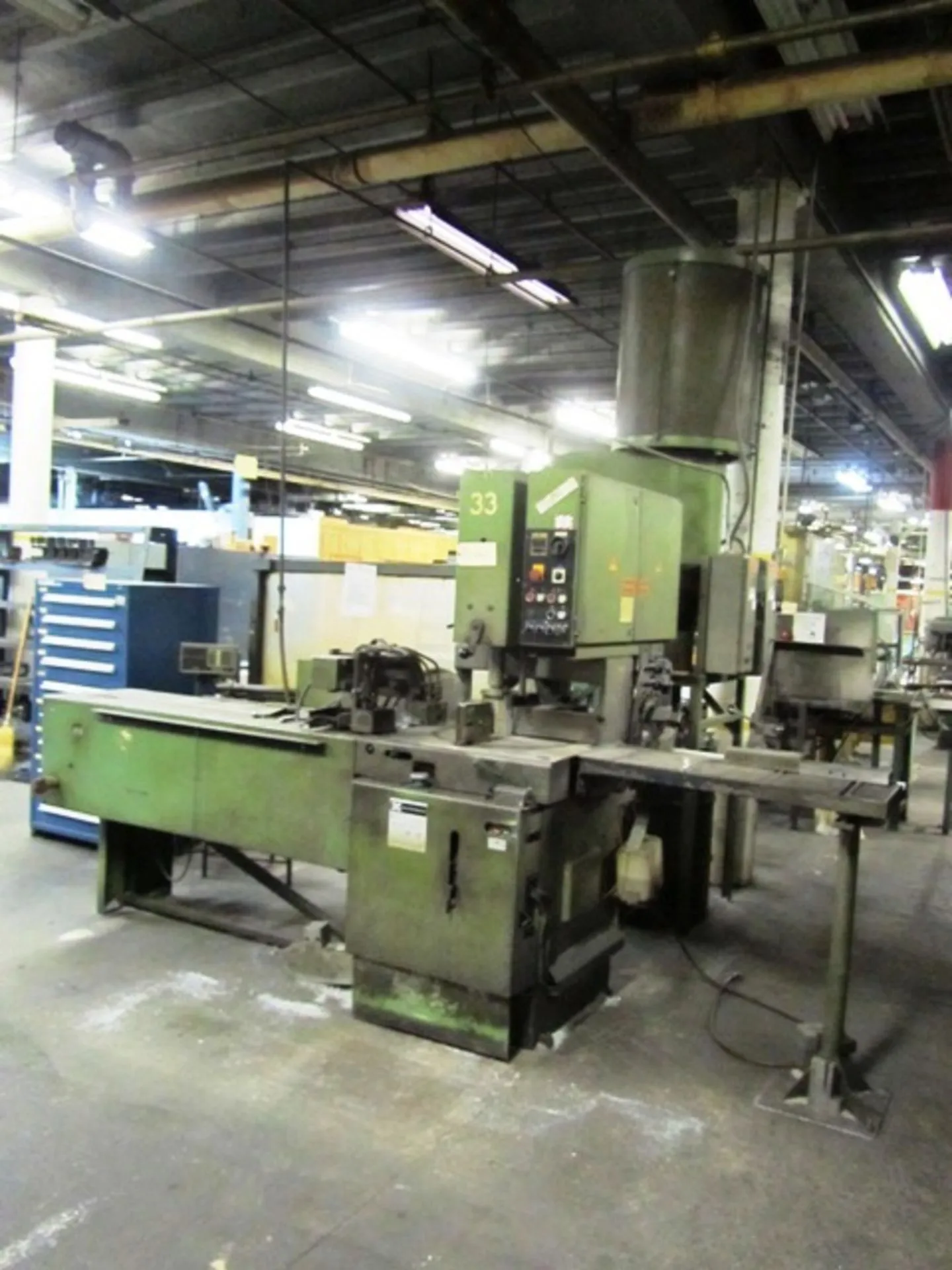

USED KALTENBACH SKL400NA
Overview
Description
16" KALTENBACH UNIVERSAL FULLY-AUTOMATIC
MITRE-CUTTING CIRCULAR COLD SAW
Serial No 11827 Model SKL400NA
Specifications
| Blade Dia | 16" | 406.4 mm |
|---|---|---|
| Power | 5 hp | 3.7 kW |
| Dimensions | 1.8 x 11.8 | 1.8 x 11.8 |
| Weight | 2500 | 2500 |
16" KALTENBACH UNIVERSAL FULLY-AUTOMATIC
MITRE-CUTTING CIRCULAR COLD SAW
Serial No 11827 Model SKL400NA
EQUIPPED WITH:
SWI "Trax 101" Digital Readouts
5' Gripper Type Automatic Double-Indexing Feed Table
30-DEGREE Angle-Mitre Cutting Feature (Left Or Right)
Pneumatic Overhead Clamping Vise
CATALOG SPECIFICATIONS:
Round Stock Capacity (Solid), Maximum 5.125"
Square Stock Capacity (Solid), Maximum 4.75"
Rectangular Stock Capacity, Maximum 1.8" x 11.8"
Mitre Cut Capacity, Square 4.125"
Mitre Cut Capacity, Rectangular 2.125" x 8.25"
Saw-Blade Diameter, Standard 16"
Saw-Blade Diameter, Minimum 14.5"
Feed Rate, Stepless Variable 0 to 10 FPM
Feed Length Per Index, Maximum 47.5"
Saw Cutting Speed, HSS & Carbide Blades 9800 FPM
Saw Cutting Speed, Carbide Tip Blade 7400/14800 FPM
Motor Horsepower 5/6 HP
Weight, Approximately 2500 LBS
NOTE: This Saw Is Ideal For The Production Cutting Of
Aluminum Extrusions And Other High Production Jobs.
F.O.B. OUR WAREHOUSE
