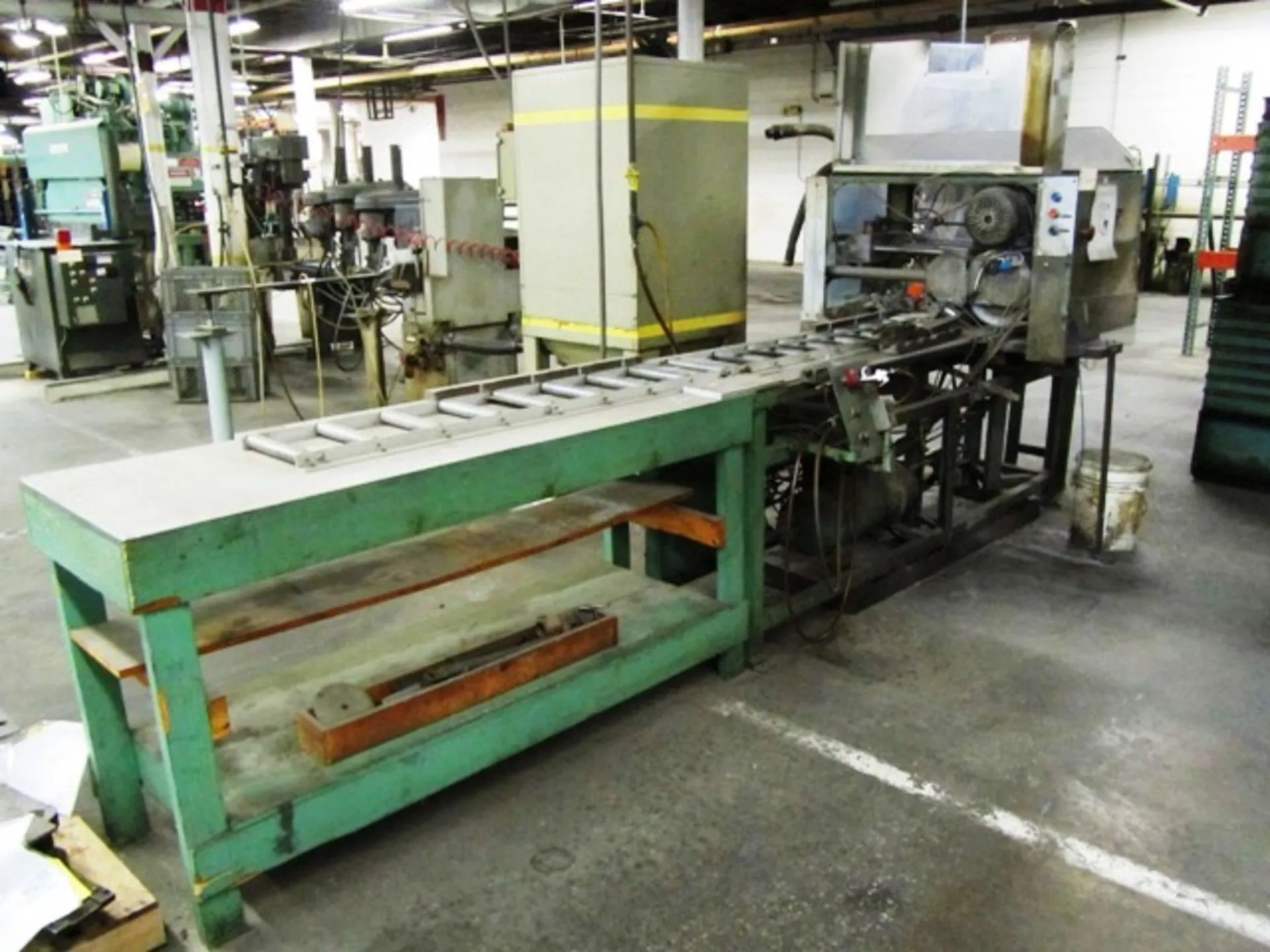

16" 5 HP CROSS-FEEDING HEAD TABLE-MOUNTED CUT-OFF SAW w/PNEUMATIC HEAD FEED - PNEUMATIC CLAMPING - 113" LONG TABLE
USD $1,750.00
Overview
Type:
Circular Cold SawsStock #:
29796
Description
5 HP 16" DIAMETER CROSS-FEEDING HEAD
TABLE-MOUNTED CUT-OFF SAW
Specifications
| Blade Dia | 16" | 406.4 mm |
|---|---|---|
| Power | 5 hp | 3.7 kW |
| Dimensions | 113 x 50 | 113 x 50 |
5 HP 16" DIAMETER CROSS-FEEDING HEAD
TABLE-MOUNTED CUT-OFF SAW
EQUIPPED WITH:
Pneumatic Cross-Feeding Head
Pneumatic Clamping
Fixed Table w/Roller Conveyor Mounted On It
CATALOG SPECIFICATIONS:
Saw Blade Diameter 16"
Head Feed, Approximately 23"
Table Dimensions Overall, L x W 113" x 2"
Table Mounted Conveyor Dimensions, L x W 86" x 10"
Motor Horsepower 5 HP/3460 RPM
Electrical System 230-460/3/60
Overall Dimensions, L x W 113" x 50"
Overall Height 61"
F.O.B. OUR WAREHOUSE
