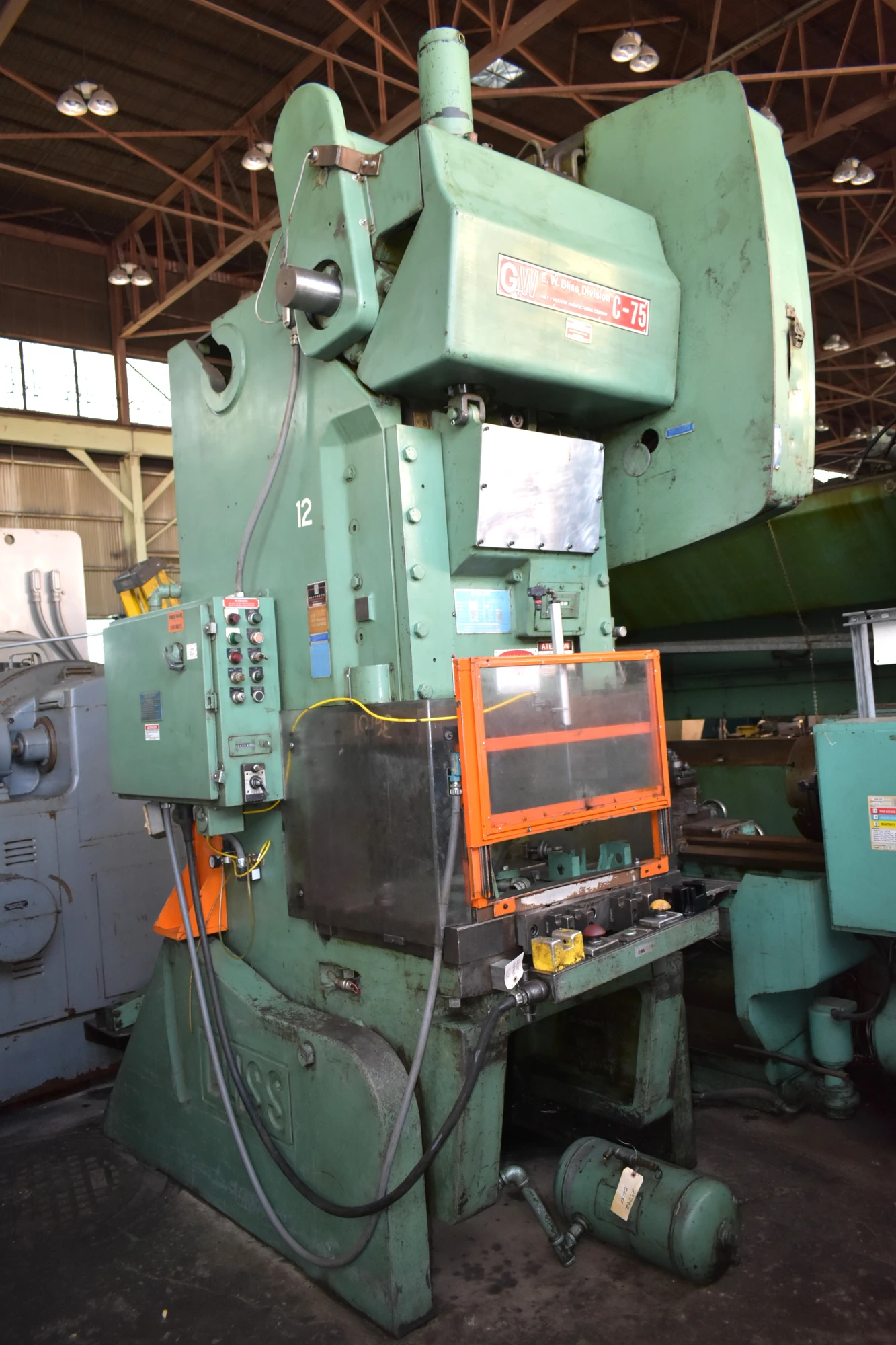

75 TON BLISS (EW) O.B.I. PRESS
Serial No H67851, Model C75
| Tonnage | 75 T | 68.039 t |
| Stroke | 5" | 127 mm |
| Shut Height | 16" | 406.4 mm |
| Bed W | 36" | 914.4 mm |
| Bed L | 24" | 609.6 mm |
| SPM | 90 strokes/min. | 90 strokes/min. |
| Air Clutch (Yes/No) | 'Yes' | 'Yes' |
| Type (BG, Double Action, FW) | '' | '' |
| Crank (Single/Double) | '' | '' |
| Dimensions | 70 x 72 | 70 x 72 |
| Weight | 19500 | 19500 |
75 TON BLISS (EW) O.B.I. PRESS
Serial No H67851, Model C75
EQUIPPED WITH:
AIR Clutch & Brake
Slide Adjustment
Push Button Operators Control
Automatic Lubrication System
CATALOG SPECIFICATIONS:
Tonnage Capacity 75 TON
Stroke Length 5"
Shut Height, (SDAU) 16"
Ram Adjustment 3.5"
Slide Area, L-R x F-B 24" x 18"
Bolster Area, L-R x F-B 36" x 24"
Bolster Thickness 3.5"
Strokes per Minute 90 SPM
Motor, Horsepower/RPM 7.5 HP/1800 RPM
Electrical System 208-220-440/3/60
Overall Dimensions, W x D 70" x 72"
Overall Height 135"
Weight, Approximately 19500 LBS
F.O.B. OUR WAREHOUSE
