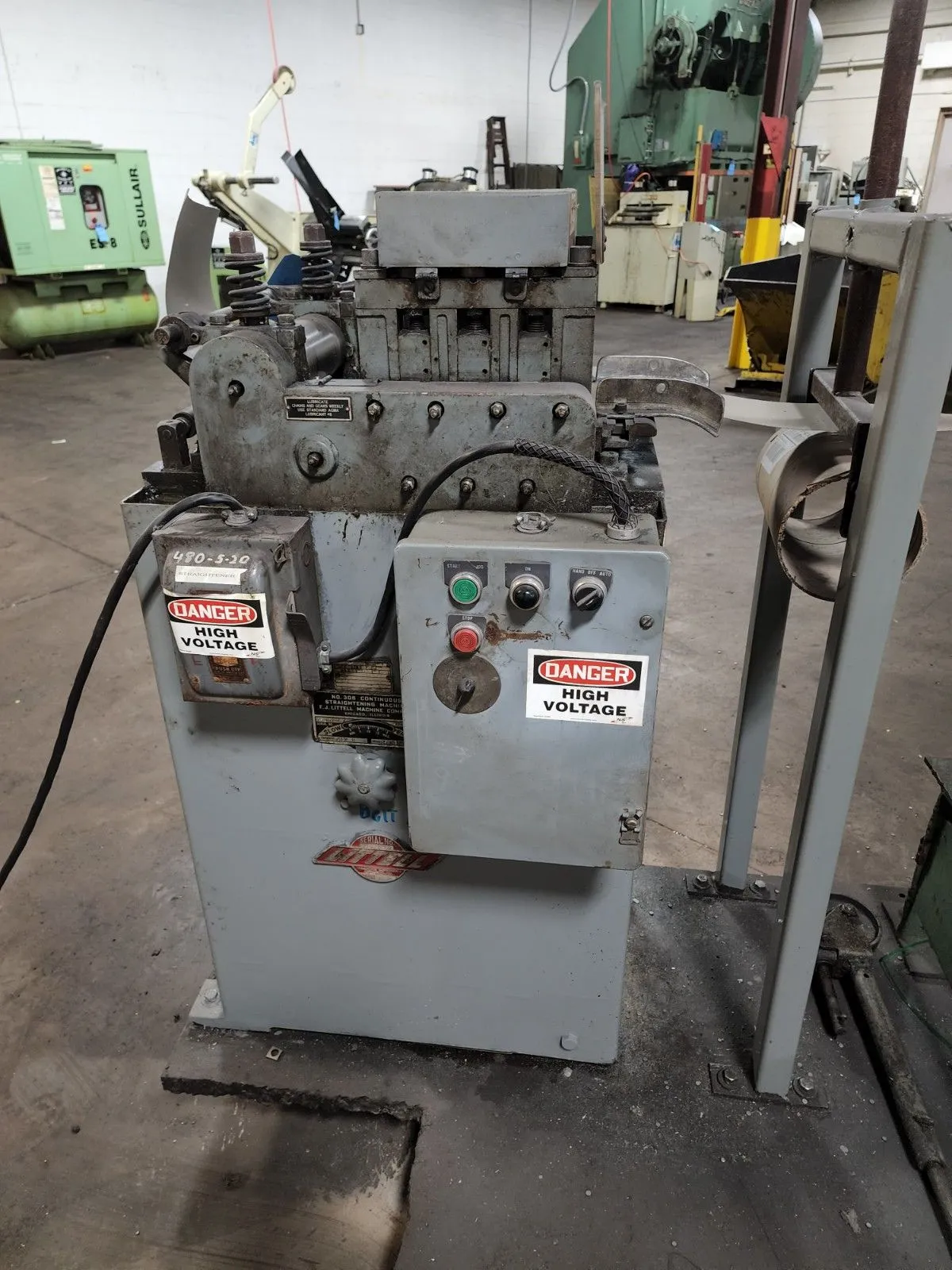

USED LITTELL 308-7PDL

8" x 0.041 LITTELL 7-ROLL COIL FEED & STRAIGHTENER
Serial No 75909-67, Model 308-7PDL

EQUIPPED WITH:
7-Roll Straightener Machine Design
Adjustable Coil Stock Thickness Controls

CATALOG SPECIFICATIONS:
Stock Capacity, Half Hard Steel 8" x 0.041"
Stock Capacity, Half Hard Steel 4" x .061"
Stock Capacity, Half Hard Steel 2" x .074"
Stock Capacity, Half Hard Steel 1" x .093"
Coil Width Capacity, Maximum 8"
Number of Rolls, Total 7-ROLL
Roll Diameters (Bottom-Rolls) 2.25"
Roll Diameters (Top-Rolls) 2.25"
Roll Center Distance 2.75"
(10) Line Speeds, Variable Range 25 to 250 IPM

NOTE: There are (3) Series of the Model #308, With
the #7PDL Being the "Most Deluxe" (Most Rolls with
the Largest Diameters).
F.O.B. ON WAY IN
