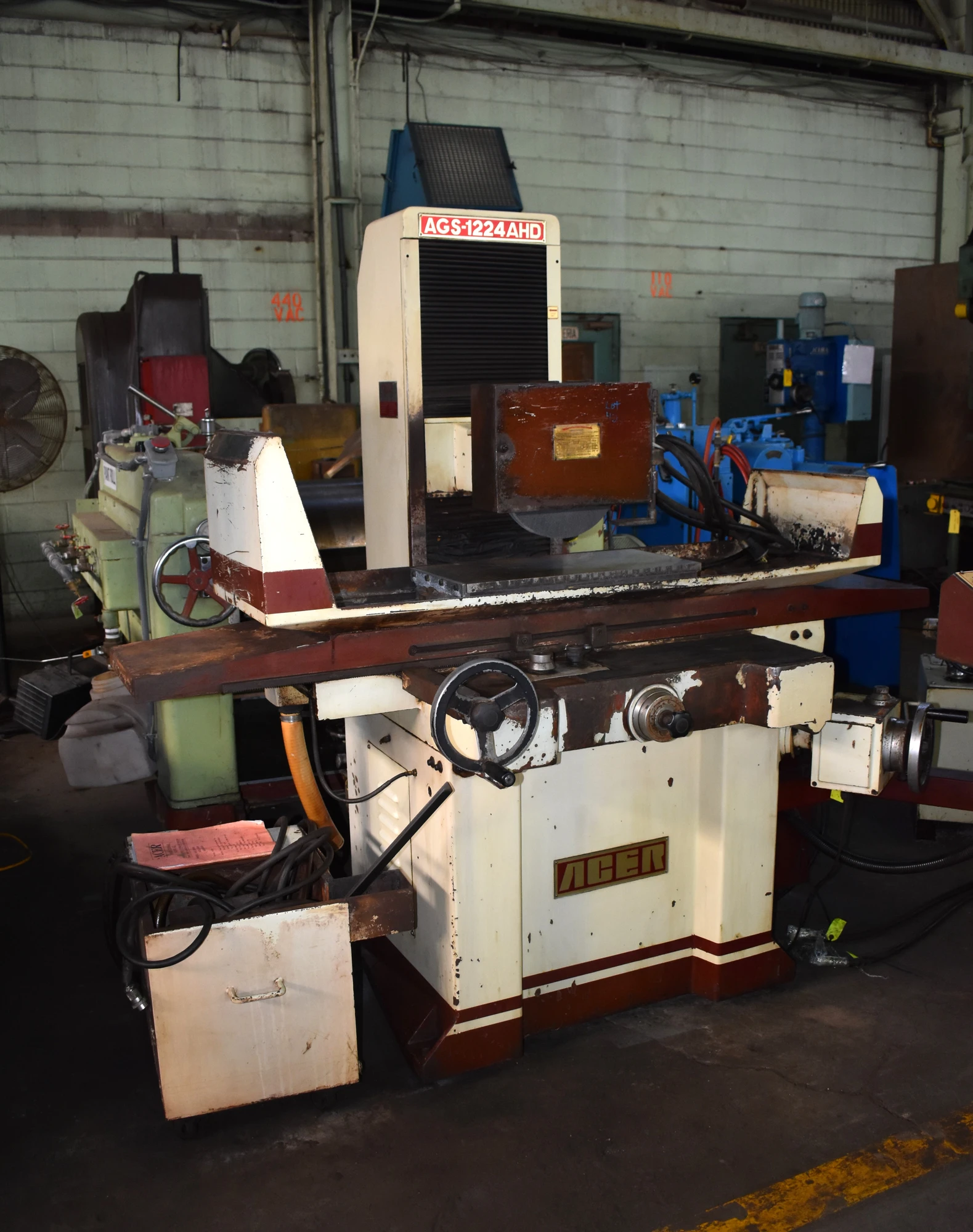

12" x 24" ACER AUTOMATIC HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 97070737, Model AGS-1224AHD,
| Table-W | 12" | 304.8 mm |
| Table-L | 24" | 609.6 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 1.25" | 31.75 mm |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Dimensions | 5'6" x 6' | 5'6" x 6' |
| Weight | 4840 LBS | 4840 LBS |
12" x 24" ACER AUTOMATIC HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 97070737, Model AGS-1224AHD,
EQUIPPED WITH:
Walker Electro-Magnetic Chuck & Controls
Automatic Power Down Feed
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Table Working Surface W x L .......... 12" x 24"
Grinding Width Capacity Maximum .......... 12"
Grinding Length Capacity Maximum .......... 24"
Height Spindle Center to Table Maximum .......... 23-1/2"
Table Load Capacity .......... 1200 LBS
Table Longitudinal, Power .......... 24-1/2"
Table Cross Travel .......... 14"
Grinding Wheel Diameter Standard .......... 14"
Grinding Wheel Width Standard .......... 1.25"
Grinding Wheel Hole Diameter .......... 5"
Grinding Spindle Speed .......... 1750 RPM
Table Longitudinal Feeds Range .......... 16 to 80 FPM
Crossfeed Travel Feeds Automatic .......... 0 to 1"
Spindle Auto Downfeed Range .......... .0001 to .01 IPR
Spindle Horsepower .......... 5 HP
Hydraulic Motor Horsepower .......... 2 HP
Floor Space Required .......... 5'6" x 6'
Weight, Approximately .......... 4840 LBS
F.O.B. OUR WAREHOUSE
