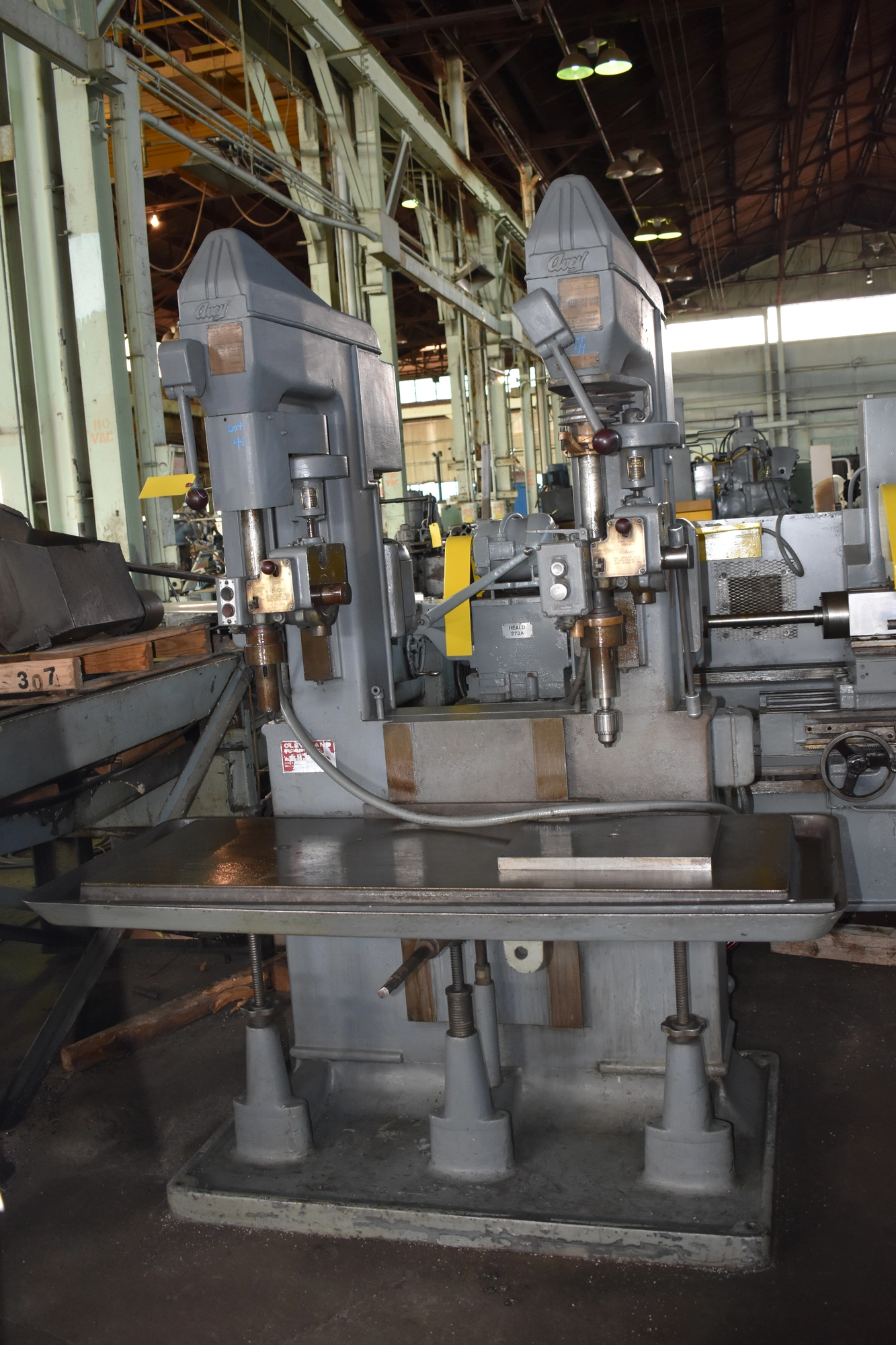

USED AVEY 2BMA6

2-SPINDLE AVEY MULTIPLE-SPINDLE DRILL

Serial No MA14999 & 15000, Size 2, Type BMA6

2-SPINDLE AVEY MULTIPLE-SPINDLE DRILL
Serial No MA14999 & 15000, Size 2, Type BMA6

EQUIPPED WITH:
Sliding Head Type Machine Design
Power Down-Feed to All Spindles
Tapping On Right Hand Spindle
Manual Table Adjustment
Coolant System (Built-In)

CATALOG SPECIFICATIONS:
Number of Spindles 2-SPINDLE
Drilling Capacity, Mild Steel 3/4"
Drilling Capacity, Cast Iron 1"
Spindle-Head Travel, Vertical 7"
Spindle Travel, Power 6"
Spindle-Nose to Table, Minimum 0"
Spindle-Nose to Table, Maximum 26"
Spindle-Center Distance 30"
Spindle-Center to Column 12"
Table Adjustment, Vertical 19.5"
Table Working Surface, W x L 22" x 58.5"
Table Overall, W x L 28.75" x 67"
Spindle Nose Diameter 1.69"
Spindle Taper #2 MT
Spindle Speeds Range, RH Head 150 to 1800 RPM
Spindle Speeds Range, LH Head 250 to 3000 RPM
(4) Spindle Feeds, Range .003 to .012 IPR
Electrical System 220-440/3/60
Floor Space Required, W x D 4'7" x 4'2"
Weight, Approximately 3500 LBS

NOTE: THE LEFT HEAD SPINDLE HAS A BAD MOTOR AND GEAR BOX. WE ARE SELLING AS IS.
F.O.B. OUR WAREHOUSE
