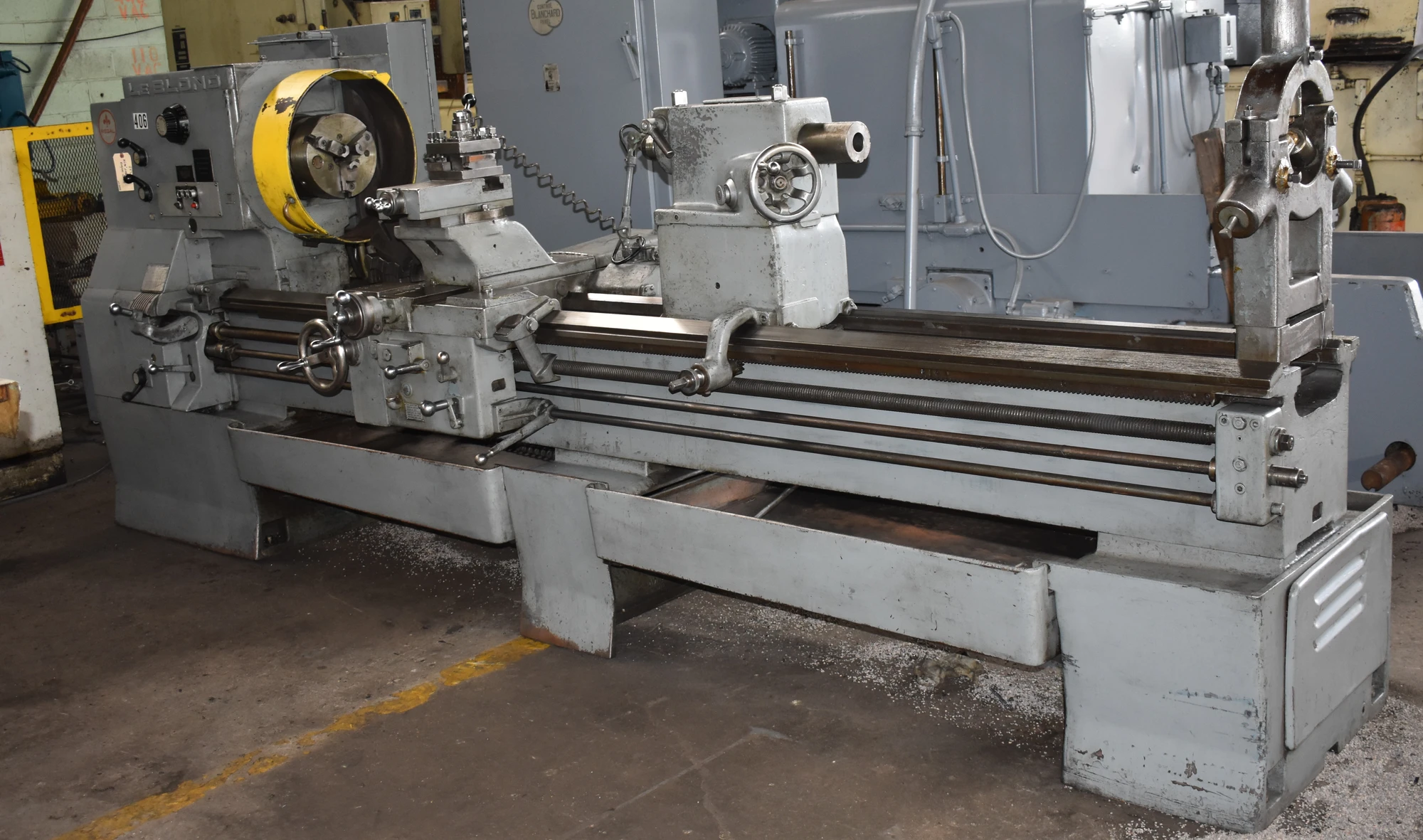

32" x 96" LEBLOND "REGAL" ENGINE LATHE w/TAPER ATTACHMENT
Serial No 3H919, Model 24 Raised, Series "REGAL"
| Swing | 32" | 812.8 mm |
| Centers | 96" | 2,438.4 mm |
| Spindle Bore | 2.2" | 55.88 mm |
| RPM | 720 RPM | 720 RPM |
| Swing Over Cross Slide | 24.25" | 615.95 mm |
| Dimensions | 14'2" x 4'4" | 14'2" x 4'4" |
| Weight | 10000 | 10000 |
32" x 96" LEBLOND "REGAL" ENGINE LATHE w/TAPER ATTACHMENT
Serial No 3H919, Model 24 Raised, Series "REGAL"
EQUIPPED WITH:
Taper Attachment
Servo-Shift Preselect Speed Change
3" Factory Installed Risers
18" 4-Jaw Chuck w/Jaws - 9" 3-Jaw Chuck w/Jaws
Turret Depth Stops - Steady Rest - Tool Post
Replaceable Hardened & Ground Ways
Threading Dial - Full Length Coolant-Chip Pan
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2.2"
Swing Over Bed Ways, Actual 32"
Swing Over Cross-Slide 24.25"
Distance Between Centers 96"
Cross-Slide Cross-Feed Travel 13"
Compound Rest Travel 4.75"
Tailstock, Spindle Diameter 3.125"
Tailstock Spindle Center #5 MT
Tailstock, Spindle Travel 7.5"
(12) Spindle Speeds, Range 18 to 720 RPM
(48) Carriage Longitudinal Feeds .0036 to .205 IPR
(48) Thread Changes, Range 2 to 112 TPI
Electrical System 220-440/3/60
Floor Space Required, L x D 14'2" x 4'4"
Weight, Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
