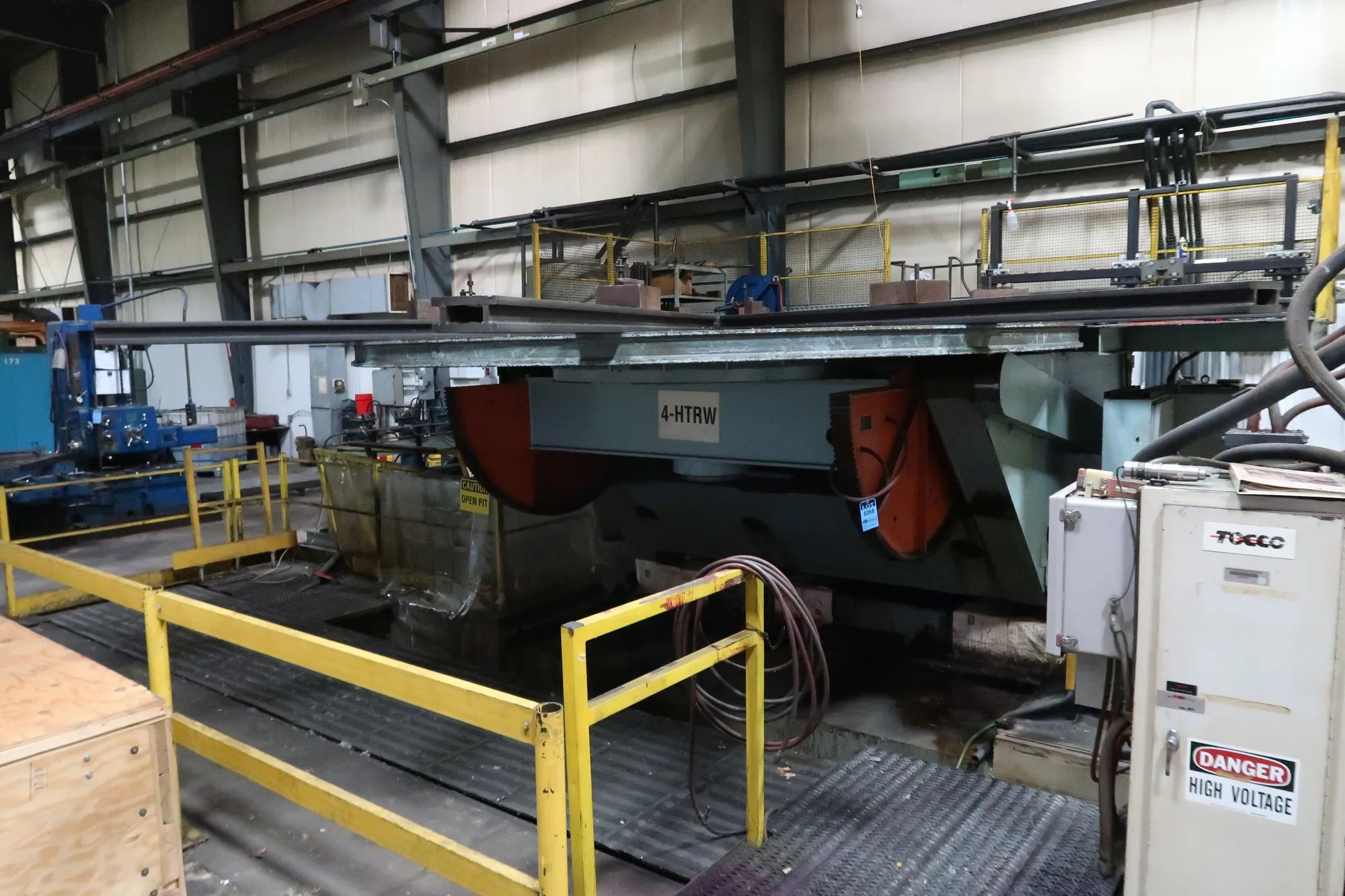

74000 LB ARONSON "GEARED-ELEVATION"
WELDING POSITIONER
Serial No 858, Model GE850
| Max Weight Capacity | 74,000 lb | 33,565.9 kg |
| Dimensions | 168 | 168 |
74000 LB ARONSON "GEARED-ELEVATION"
WELDING POSITIONER
Serial No 858, Model GE850
EQUIPPED WITH:
360-Degree Variable-Speed Power Rotation
168" (14') Diameter Table
CATALOG SPECIFICATIONS:
Table Dimensions, Diameter 168"
Table Weight at 6" Eccentricity 74000
Table Weight at 12" Eccentricity 74000 LBS
Table Weight at 18" Eccentricity 58000 LBS
Table Weight at 24" Eccentricity 48600 LBS
Table Weight at 30" Eccentricity 41500 LBS
Table Weight at 36" Eccentricity 36200 LBS
Table Weight at 42" Eccentricity 32100 LBS
Table Weight at 48" Eccentricity 28850 LBS
Table Weight at 54" Eccentricity 26150 LBS
Table Weight at 60" Eccentricity 24000 LBS
Table Rotation Speed, Variable .008 to 0.4 RPM
Table Elevation Speed, Constant 17 IPM
Rotational Torque, Maximum 1020000 LBS
Tilt Torque, Maximum 1800000 LBS
Table Rotation, Degrees 360-DEGREES
Table Tilt Forward, Degrees 135-DEGREES
Table Elevation, Travel 54"
Table Rotation Motor, Horsepower 20 HP
Table Tilt Motor, Horsepower 15 HP
Table Elevation Motor, Horsepower 25 HP
PRICE FOB OUR WAREHOUSE
