12" HEALD HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER
Model 22
| Chuck Size | 12" | 304.8 mm |
| Horz/Vert | Horz | Horz |
| Swing | 16" | 406.4 mm |
| Under Wheel | 0" | 0 mm |
| Grinding Wheel Width | 1" | 25.4 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Dimensions | 5'8" x 4'1" | 5'8" x 4'1" |
| Weight | 3500 LBS | 3500 LBS |

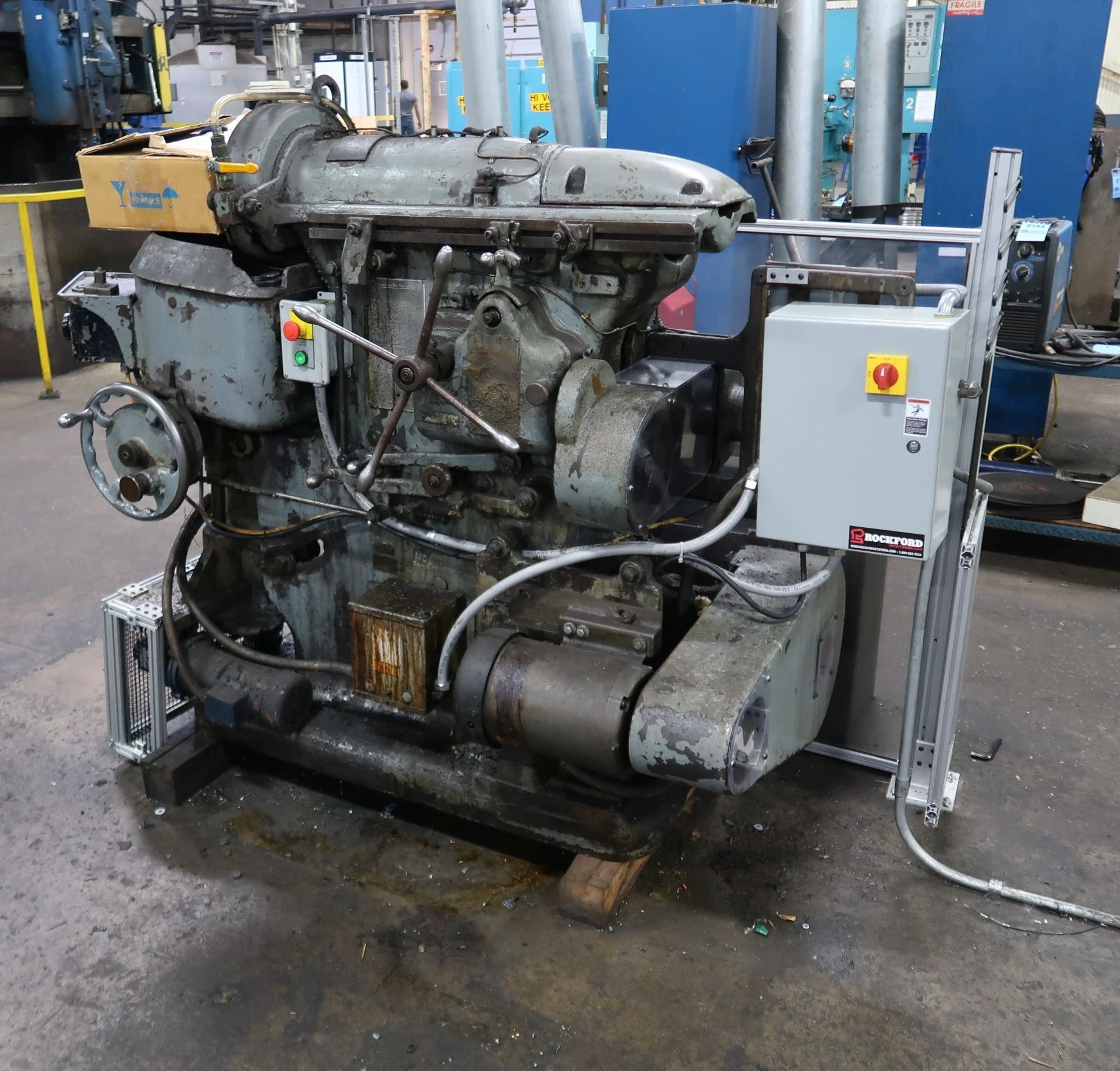

12" HEALD HORIZONTAL-SPINDLE ROTARY SURFACE GRINDER
Model 22
EQUIPPED WITH:
12" Diameter Magnetic Chuck (Holding Surface)
Updated Electrics And Drives To Table, Ram, &
Grinding Spindle
Lube System
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Magnetic Chuck, Face Diameter 13-1/2"
Magnetic Chuck, Working Surface 12"
Swing With-in Coolant Guards 16"
Spindle-Center to Chuck, Maximum 10-1/8"
Spindle-Center to Chuck, Minimum 4-5/8"
Grinding Wheel Diameter, Minimum 7-1/2"
Grinding Wheel Diameter, Standard 12"
Grinding Wheel Width, Standard 1"
Grinding Wheel Hole Diameter 5"
Convex Table Angle Degrees, Maximum 8-DEGREES
Concave Table Angle Degrees, Maximum 10-DEGREES
Grinding Wheel Speed 1390 RPM
Chuck Speeds, Range 55 to 153 RPM
Grinding Head Speeds, Range 27 to 74 RPM
Floor Space Required, L x D 5'8" x 4'1"
Weight, Approximately 3500 LBS
F.O.B. OUR WAREHOUSE
