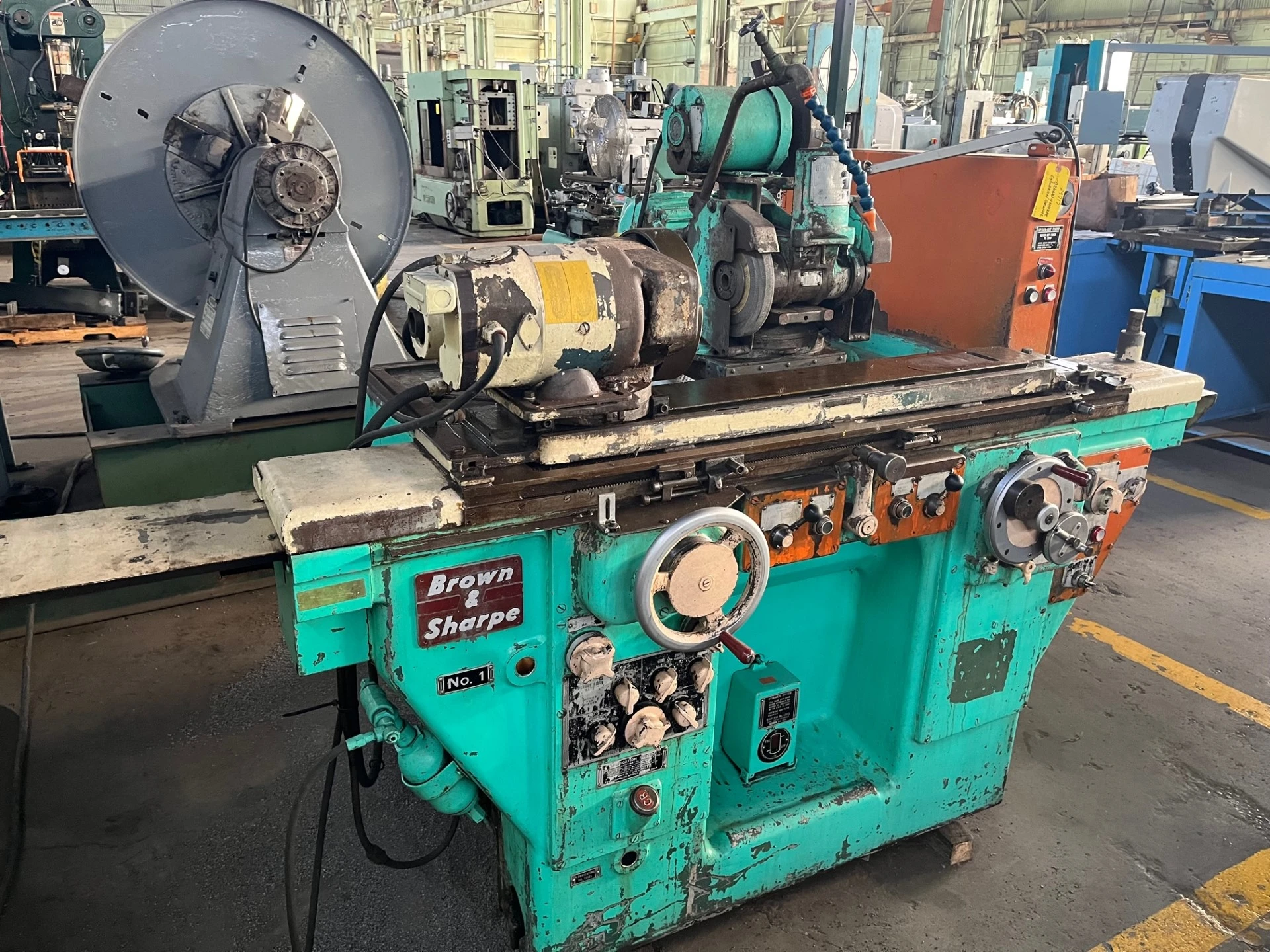

10" x 20" BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER
Serial No 521-1-484, Model 1, Series 521
| Swing | 10" | 254 mm |
| Centers | 23.75" | 603.25 mm |
| Plain or Angle Head | 'Plain' | 'Plain' |
| Grinding Wheel Dia. | 10" | 254 mm |
| Wheel Power | 1.5 hp | 1.1 kW |
| Wheel Speed | 3,600 RPM | 3,600 RPM |
| Plunge | 'No' | 'No' |
| Gauging | '' | '' |
| Dresser | '' | '' |
| Dimensions | 7'4" x 6'5" | 7'4" x 6'5" |
| Weight | 5700 LBS | 5700 LBS |
10" x 20" BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER
Serial No 521-1-484, Model 1, Series 521
EQUIPPED WITH:
Automatic Cycling w/Spark-Out Timer
4-Jaw Chuck w/Jaws Mounted On Workhead
Magnetic Chuck For Workhead
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 10"
Grinding Diameter, Maximum 10"
Distance Between Centers, Nominal 20"
Distance Between Centers, Maximum 23.75"
Grinding Wheel Diameter, Standard 10"
Grinding Wheel Width, Standard 0.5"
Grinding Wheel Hole Diameter 3"
(3) Grinding Wheel Speeds, Range 2500 to 3600 RPM
Workhead Spindle Speeds, Infinite Range 60 to 600 RPM
Table Longitudinal Feeds, Infinite 3 to 150 IPM
Wheelhead In-Feeds, Range .0001 to .003 IPR
Grinding Wheelhead Spindle Motor 1.5 HP/1730 RPM
Workhead Motor, Horsepower 1/4 HP
Electrical System 220-440/3/60
Overall Dimensions, L x D 7'4" x 6'5"
Overall Height 5'3"
Weight, Approximately 5700 LBS
NOTE: This Machine Does Not Have The Internal Grinding Spindle Or A Tailstock.
F.O.B. OUR WAREHOUSE
