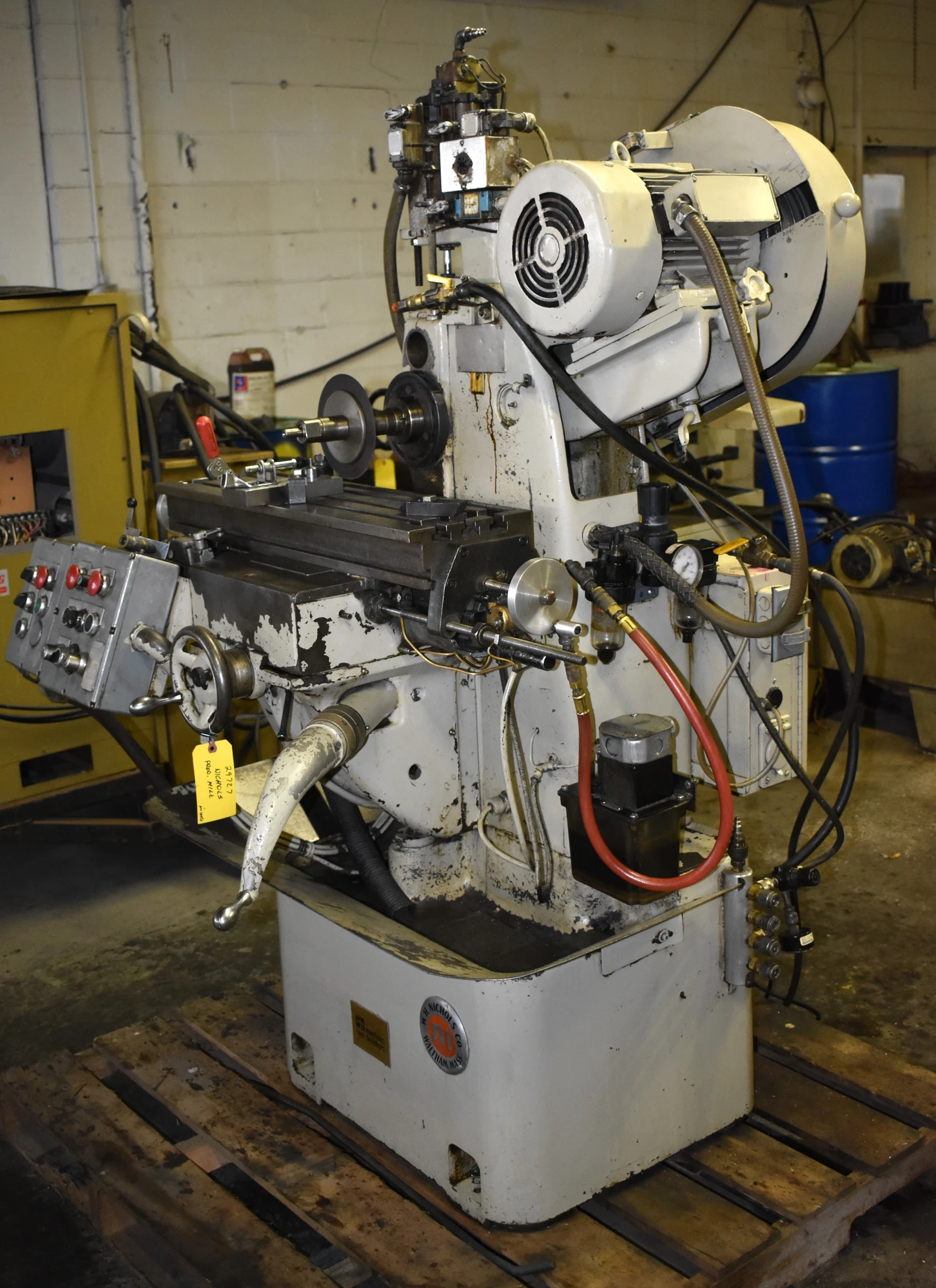

#8SA NICHOLS SEMI-AUTO
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 10-H-8619, Model 8SA
| Dimensions | 5'4" x 4'2" x 4'5" | 5'4" x 4'2" x 4'5" |
| Weight | 1400 | 1400 |
#8SA NICHOLS SEMI-AUTO
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 10-H-8619, Model 8SA
EQUIPPED WITH:
Air-Operated Rise & Fall Head Travel (Automatic Cycling)
Air-Feed To Table
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 8.5" x 30"
Table Longitudinal Travel (X-Axis) 14"
Knee Vertical Travel (Y-Axis) 11"
Table Transverse Travel 6"
Spindle-Center to Table-Top, Minimum 0"
Spindle-Center to Table-Top, Maximum 12-1/2"
(16) Spindle Speeds, Range 60 to 2875 RPM
Table Longitudinal Feeds, Range 0 to 50 IPM
Power Rapid Table Traverse 100 IPM
Spindle Motor, Horsepower/RPM 2 HP/1160 RPM
Electrical System 460/3/60
Floor Space Required, L x D 5'4" x 4'2"
Overall Height 4'5"
Weight, Approximately 1400 LBS
F.O.B. OUR WAREHOUSE
