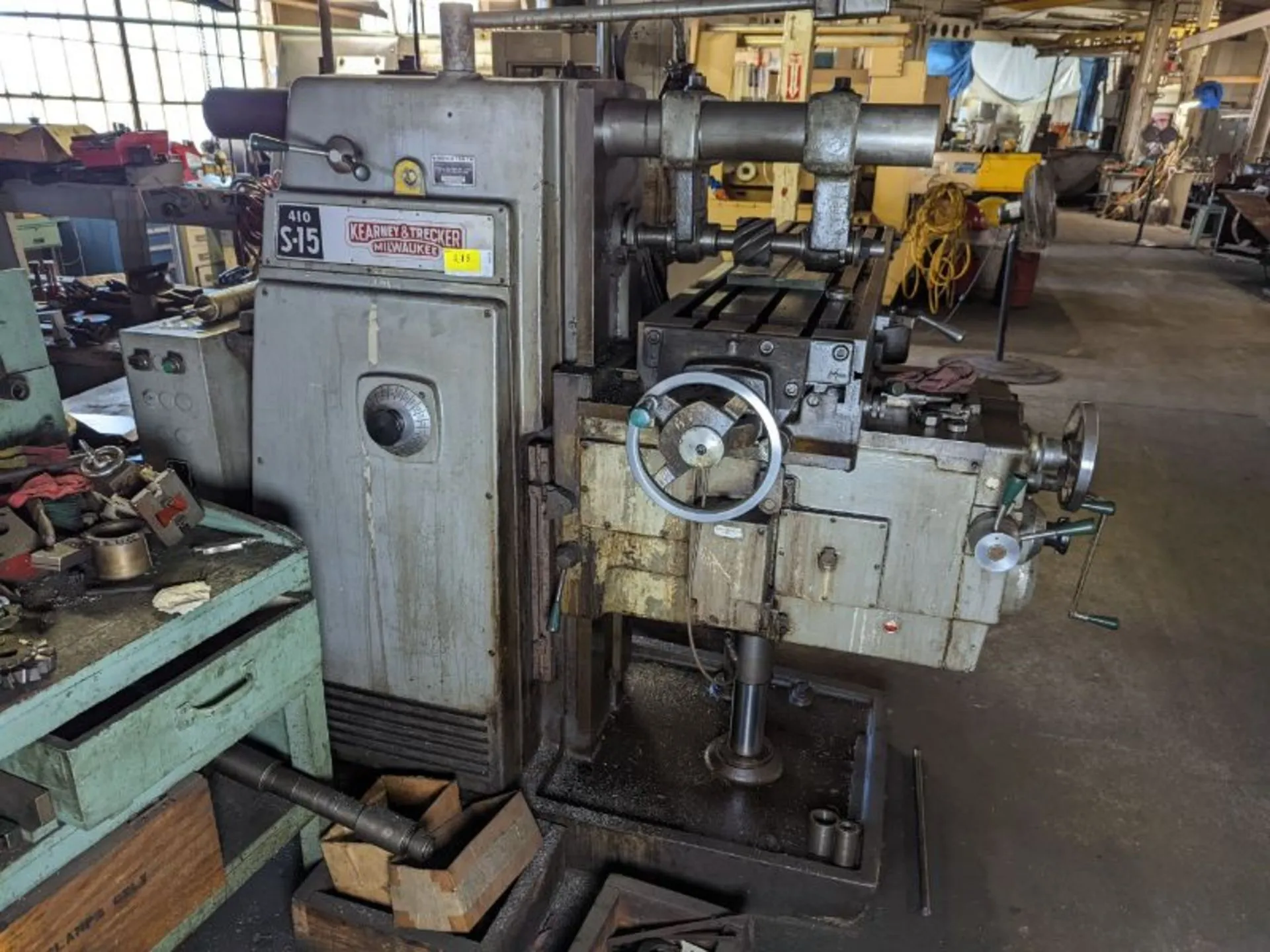

#410S15 KEARNEY & TRECKER PLAIN HORIZONTAL MILL
New 1968, Serial No 80-1011-01, Model 410S15,
| Table Size-W | 15" | 381 mm |
| Table Size-L | 76" | 1,930.4 mm |
| Travel-Long | 42" | 1,066.8 mm |
| Travel-Cross | 14" | 355.6 mm |
| Travel-Vert | 19" | 482.6 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Taper | #50 NSTD | #50 NSTD |
| Dimensions | 15" x 76" | 15" x 76" |
| Weight | 9350 LBS | 9350 LBS |
#410S15 KEARNEY & TRECKER PLAIN HORIZONTAL MILL
New 1968, Serial No 80-1011-01, Model 410S15,
EQUIPPED WITH:
Knee Motor
Dual Round Overarm
(2) Arbor Supports
(2) Arbors
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 15" x 76"
Table Working Surface, W x L 15" x 76"
Table Longitudinal Travel (X-Axis) 42"
Saddle In-Out Cross Travel (Z-Axis) 14"
Knee Vertical Travel (Y-Axis) 19"
Spindle Taper #50 NSTD
(24) Spindle Speeds, Range 25 to 2000 RPM
(32) Longitudinal and Cross Feeds .375 to 90 IPM
Vertical Feeds, Range .1875 to 45 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 75 IPM
Spindle Motor, Horsepower/RPM 10 HP
Feed Motor, Horsepower 3 HP
Weight, Approximately 9350 LBS
F.O.B. OUR WAREHOUSE
