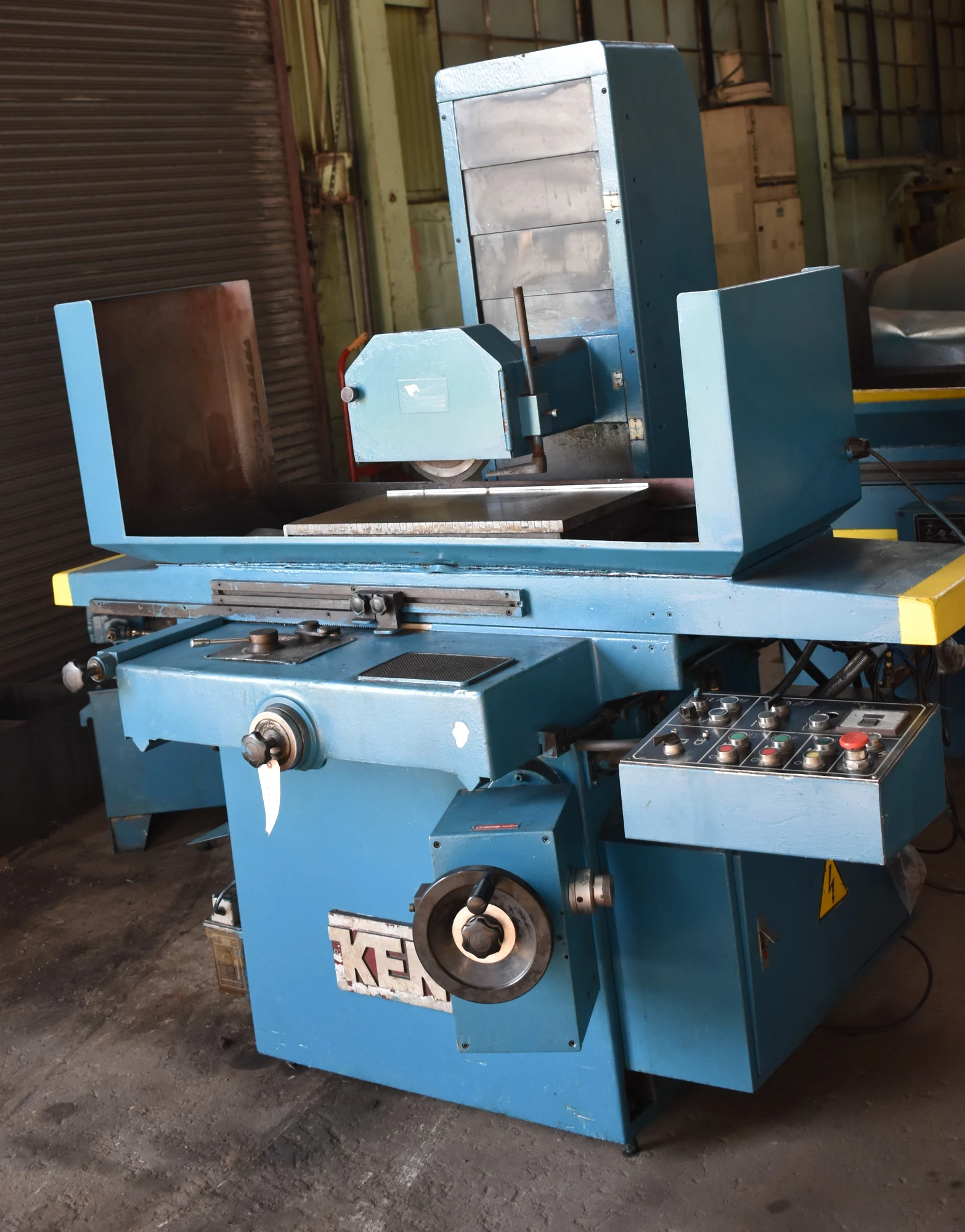

12" x 25" KENT FULLY-AUTOMATIC HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 860654-8, Model KGS306AHD,
| Table-W | 12.06" | 306.32 mm |
| Table-L | 25.56" | 649.22 mm |
| Horz/Vert | Horz | Horz |
| Power | 3 hp | 2.2 kW |
| Grinding Wheel Width | 1.25" | 31.75 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Weight | 3650 | 3650 |
12" x 25" KENT FULLY-AUTOMATIC HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 860654-8, Model KGS306AHD,
EQUIPPED WITH:
12" x 24" Electro-Magnetic Chuck
Incremental Power Down Feed
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Surface Ground Maximum, W x L 12.06" x 25.56"
Grinding Width Capacity, Maximum 12.06"
Grinding Length Capacity, Maximum 25.56"
Spindle Center to Table, Maximum 21.62"
Grinding Wheel Diameter, Standard 12"
Grinding Wheel Width, Standard 1.25"
Grinding Wheel Hole Diameter 5"
Hydraulic System Motor 3 HP
Weight, Approximately 3650 LBS
F.O.B. OUR WAREHOUSE
