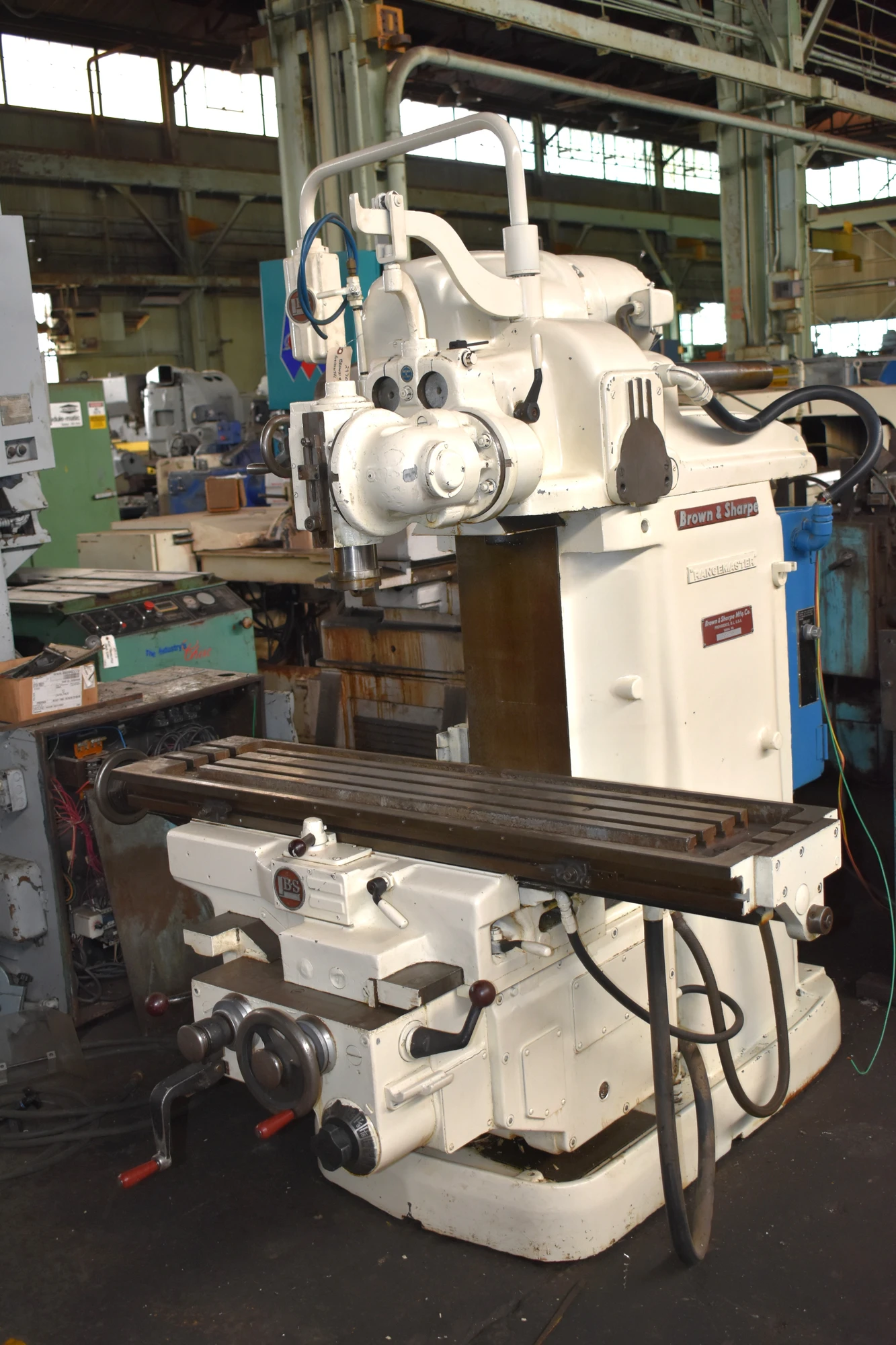

#20 BROWN & SHARPE "RANGEMASTER"
UNIVERSAL SLIDING-HEAD HORIZONTAL MILL
w/UNIVERSAL VERTICAL HEAD ATTACHMENT
Serial No. 507-23-53, Model "RANGEMASTER"
| Table Size-W | 13" | 330.2 mm |
| Table Size-L | 54.375" | 1,381.1 mm |
| Travel-Long | 28" | 711.2 mm |
| Travel-Cross | 12" | 304.8 mm |
| Travel-Vert | 21.25" | 539.75 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 1,530 RPM | 1,530 RPM |
| Taper | #40 NSTD | #40 NSTD |
| Dimensions | 13 x 54.375 | 13 x 54.375 |
| Weight | 5950 lbs | 5950 lbs |
#20 BROWN & SHARPE "RANGEMASTER"
UNIVERSAL SLIDING-HEAD HORIZONTAL MILL
w/UNIVERSAL VERTICAL HEAD ATTACHMENT
Serial No. 507-23-53, Model "RANGEMASTER"
EQUIPPED WITH:
Universal Vertical Head Milling Attachment
w/Swing-Away Parking
Motor On Knee - Dual Round Overarm
(2) Arbor Supports
Rapid Table Traverse (Longitudinal, Transverse, & Vertical)
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), L x W 13" x 54.375"
Table Working Surface, W x L 13" x 54.375"
Longitudinal Table Travel (X-Axis) 28"
Cross Saddle Travel (Z-Axis) 12"
Vertical Knee Travel (Y-Axis) 21.25"
Vertical Spindle Head Travel (Y-Axis) 22.875"
Spindle Taper #40 NSTD
Spindle Speeds, Range 40 to 1530 RPM
Universal Head Speeds, Range 80 to 3060 RPM
Longitudinal & Cross Feeds 1/2 to 20 1/4 IPM
Spindle Motor, Horsepower 5 HP
Feed Motor, Horsepower 1 HP
Electrical System 220-440/3/60
Weight, Approximately 5,950 lbs
F.O.B. OUR WAREHOUSE
