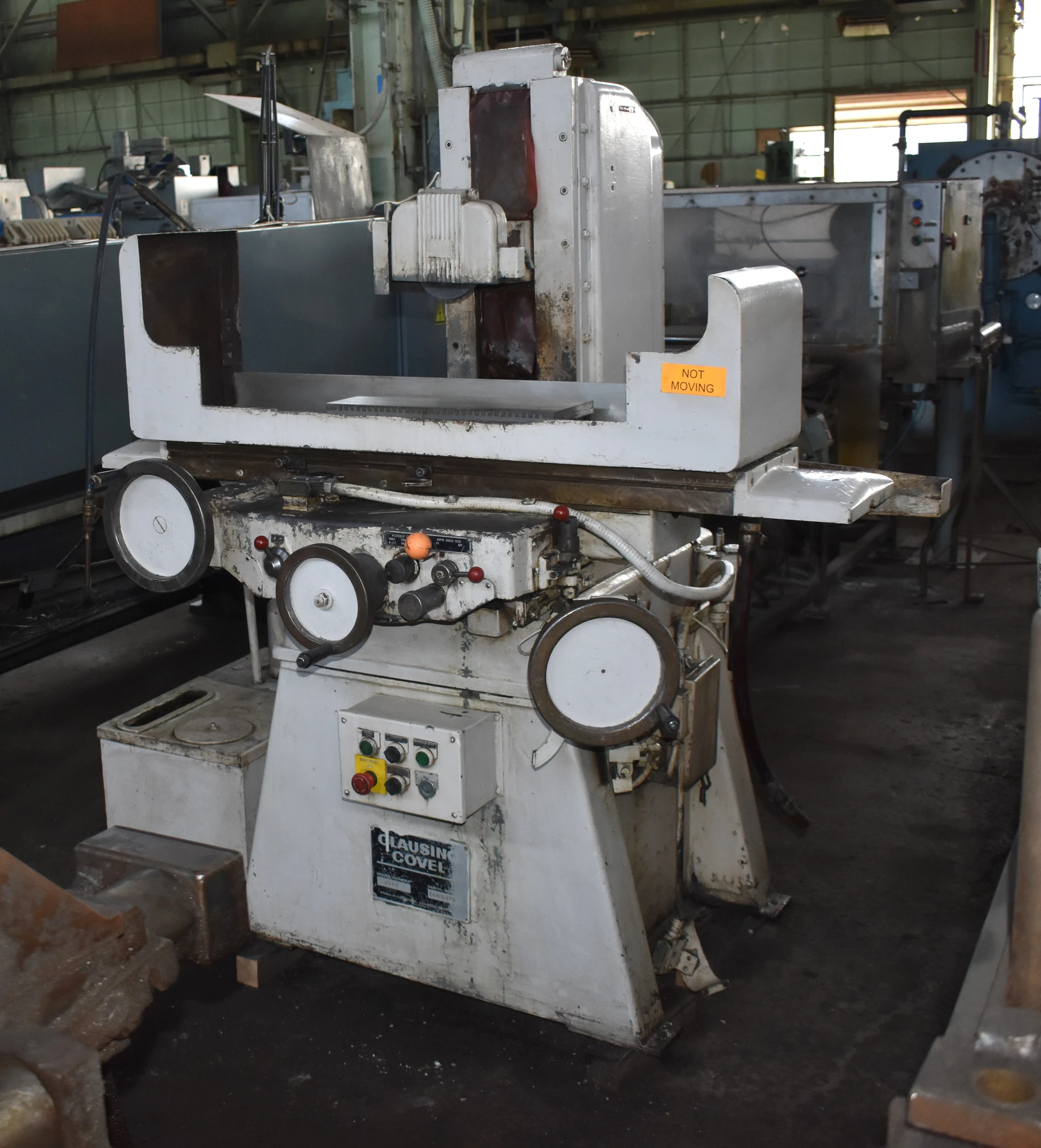

6" X 18" CLAUSING/COVEL AUTOMATIC HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 10H5879, Model 4011,
| Table-W | 6" | 152.4 mm |
| Table-L | 18" | 457.2 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Grinding Wheel Width | 0.5" | 12.7 mm |
| Grinding Wheel Dia. | 7" | 177.8 mm |
| Dimensions | 6'7" x 4'2" | 6'7" x 4'2" |
| Weight | 2350 LBS | 2350 LBS |
6" X 18" CLAUSING/COVEL AUTOMATIC HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 10H5879, Model 4011,
EQUIPPED WITH:
Incremental Power Down Feed Of Grinding Head
Incremental Cross Feed Of Table
6" x 18" Permanent Magnetic Chuck
Hydraulic Longitudinal Table Feeds
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Table Dimensions, Overall 9.875" x 44.25"
Table Working Surface, W x L 6" x 18"
Grinding Width Capacity, Maximum 6"
Grinding Length Capacity, Maximum 18"
Grinding Wheel Diameter 7"
Grinding Wheel Width .5"
Grinding Wheel Hole 1.25"
Height Under 7" Grinding Wheel 16.5"
Table Longitudinal Travel 20"
Table Cross Travel 7"
Table Longitudinal Feeds, Range 5 to 70 FPM
Table Cross In-Feeds, Range .005 to .250 IPR
Electrical System 230-460/3/60
Floor Space Required, L x D 6'7" x 4'2"
Overall Height 5'8"
Weight, Approximately 2350 LBS
F.O.B. OUR WAREHOUSE
