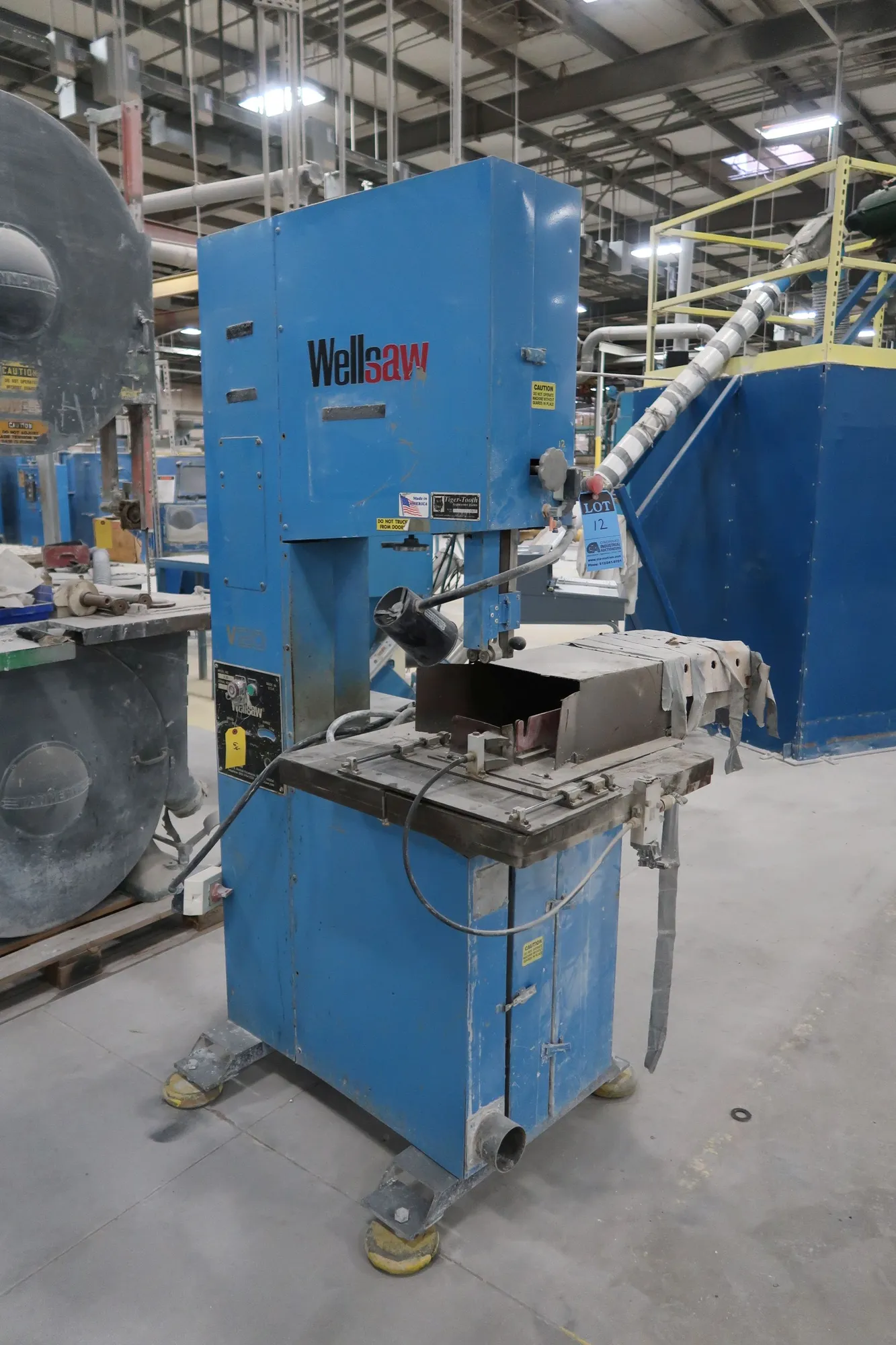

20" x 16" WELLSAW VERTICAL BAND SAW
Serial No 2204, Model V20,
| Throat | 20" | 508 mm |
| Work Height | 16" | 406.4 mm |
| Power | 3 hp | 2.2 kW |
| Blade Width | 0.75" | 19.05 mm |
| Blade Length | 177" | 4,495.8 mm |
| Dimensions | 2'8" x 48" x 84" | 2'8" x 48" x 84" |
| Weight | 950 LBS | 950 LBS |
20" x 16" WELLSAW VERTICAL BAND SAW
Serial No 2204, Model V20,
EQUIPPED WITH:
Tilting Table
(Infinitely Variable Blade Speed Inoperable) Single Speed Blade
CATALOG SPECIFICATIONS:
Work Capacity, Nominal 20" x 16"
Work Height Capacity, Maximum 16"
Throat Depth, Rated 20"
Table Dimensions (Overall), W x L 26" x 26"
Table Tilt, Left 5-DEGREES
Table Tilt, Right 45-DEGREES
Blade Length 14'9"
Blade Width, Range .187" to 0.75"
Main Motor, Horsepower 3 HP
Floor Space Required, W x D 2'8" x 48"
Overall Height 84"
Weight, Approximately 950 LBS
REPLACEMENT PRICE IS APPROXIMATELY $12,095.00
F.O.B. OUR WAREHOUSE
